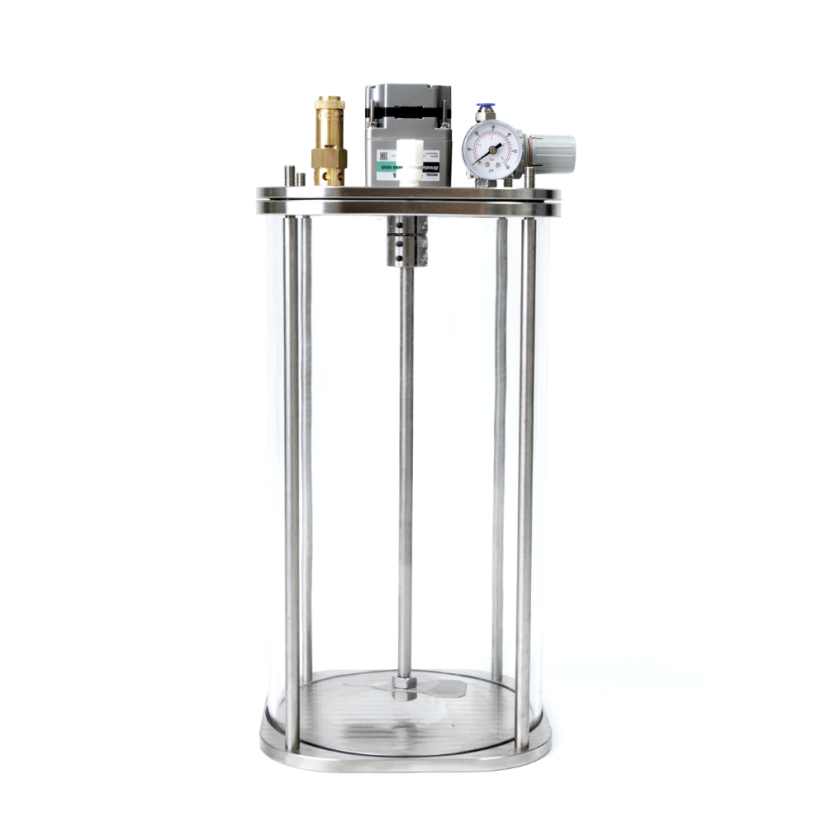

български език (EUR)10L Toughened Glass & Stainless Steel 34 Clear Pressure Vessel with Agitation
Product code: 82210200
Clear and compact pressure vessels with agitation by electric motor for flexible and fast agitation.
The CTEL series clear pressure vessels with agitation by electric motor are specifically designed to suit fluids requiring gentle stir, fast or programmed agitation.Made to work in both busy factories and research labs, the reservoirs can provide intermittent or constant agitation.All compact agitated pressure reservoirs are exclusively made of stainless steel grade 303 and toughened glass cylinders.This ensures that the material contents are not contaminated by corrosion. CT Tanks Series can operate to 28°C. More
The CTEL series clear pressure vessels with agitation by electric motor are specifically designed to suit fluids requiring gentle stir, fast or programmed agitation.Made to work in both busy factories and research labs, the reservoirs can provide intermittent or constant agitation.All compact agitated pressure reservoirs are exclusively made of stainless steel grade 303 and toughened glass cylinders.This ensures that the material contents are not contaminated by corrosion. CT Tanks Series can operate to 28°C. More
Parameters
| Type | CT |
|---|---|
| Volume | 10 litres |
| Material | Toughened Glass / Stainless steel 304 |
| Agitation | Electrical |
| Pressure range | 0-4 bar (58 psi) |
TECHNICAL PARAMETERS
| Max. operating pressure | 60 psi (4 bar) |
| Volume and weight | 10 L / 8.1 kg |
| Electrical parameters | 230V AC; 0.3 kW |
| Speed range | 40–800 RPM |
| Torque | 1.4 Nm |
MIXING BLADES
| Simple | Cross | Triple pitch | Dual level |
|---|---|---|---|
| General use, standard supply. | Propeller for thicker materials. | Rounded for mixing effect. | Optional dual-level version. |
 |
 |
 |
 |
