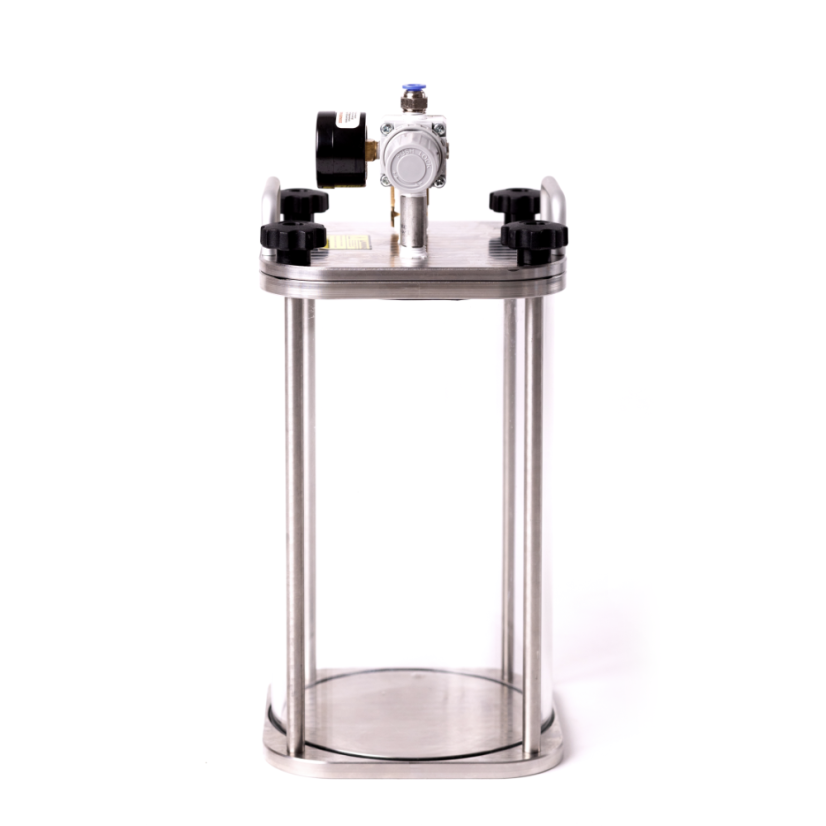

Polski (EUR)5L Toughened Glass & Stainless Steel 304 Clear Pressure Vessel
Product code: 82105200
Clear pressure reservoirs for various simple applications
The CT series pressure tanks are see-through vessels designed to let operators easily monitor fluid levels.
The tanks are made of stainless steel 303 and Toughened Glass tubes and can be pressurised up to 3 bars. CT Tanks Series can operate to 28°C.
All models can also be fitted with air agitators and additional ports. More
The CT series pressure tanks are see-through vessels designed to let operators easily monitor fluid levels.
The tanks are made of stainless steel 303 and Toughened Glass tubes and can be pressurised up to 3 bars. CT Tanks Series can operate to 28°C.
All models can also be fitted with air agitators and additional ports. More
| Type | CT |
|---|---|
| Volume | 5 litres |
| Material | Toughened Glass / Stainless steel 304 |
| Agitation | No agitation |
| Pressure range | 0-4 bar (58 psi) |
SPECIFICATIONS
| Plates | Stainless steel |
| Lid | Stainless steel |
| O-ring | Viton o-ring |
| Material | Tempered glass |
| Regulation | Air pressure regulator and gauge from 0 to 43.5 psi (0-3 bar) |
| Valve | Release valve up to 43.5 psi (3 bar) |
| Quick coupler | 6mm inlet quick coupler |
ACCESSORIES
- No-drip system
- Exhaust filter
- Air agitator
