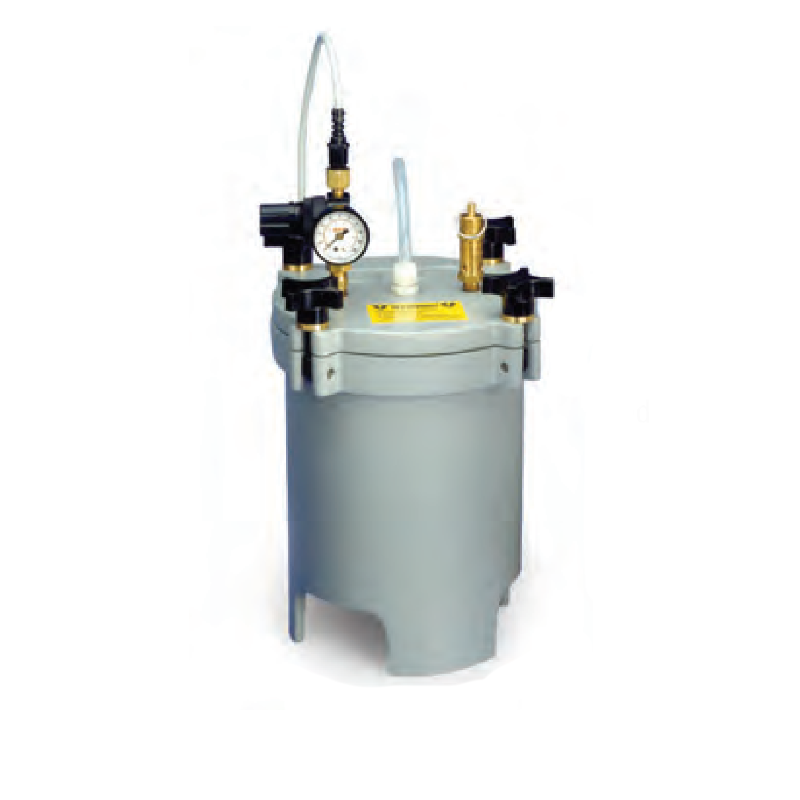

5L Tank 0-15PSI (1 BAR)

Product code: 7020189
Each fluid tank comes complete with air regulator and gauge, air hose with shutoff valve, HDPE liner, and PE fluid feed tubing

Manufacturer Nordson More
Volume 5 litres
Material Aluminum
Pressure range 0-1 bar (15 psi)

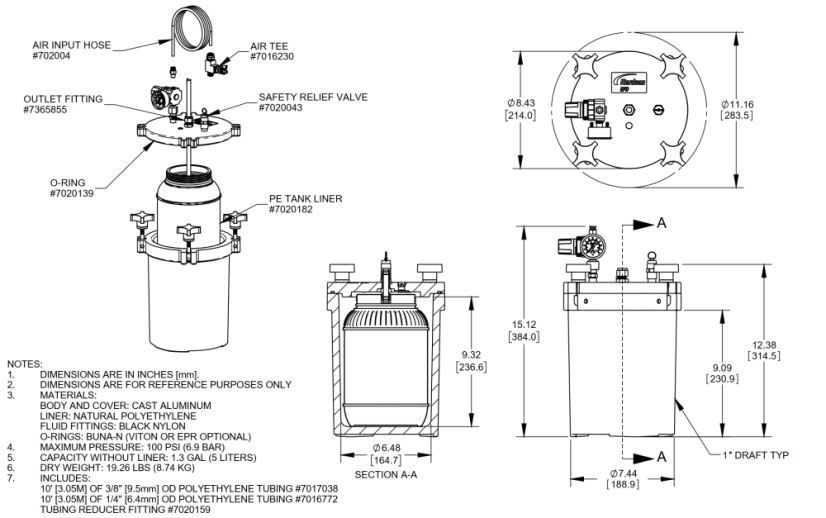

Technical Specifications

Tank Body Cast Aluminum
Internal Diameter 17.3 cm (6.81”)
Internal Depth 24.8 cm (9.75”)

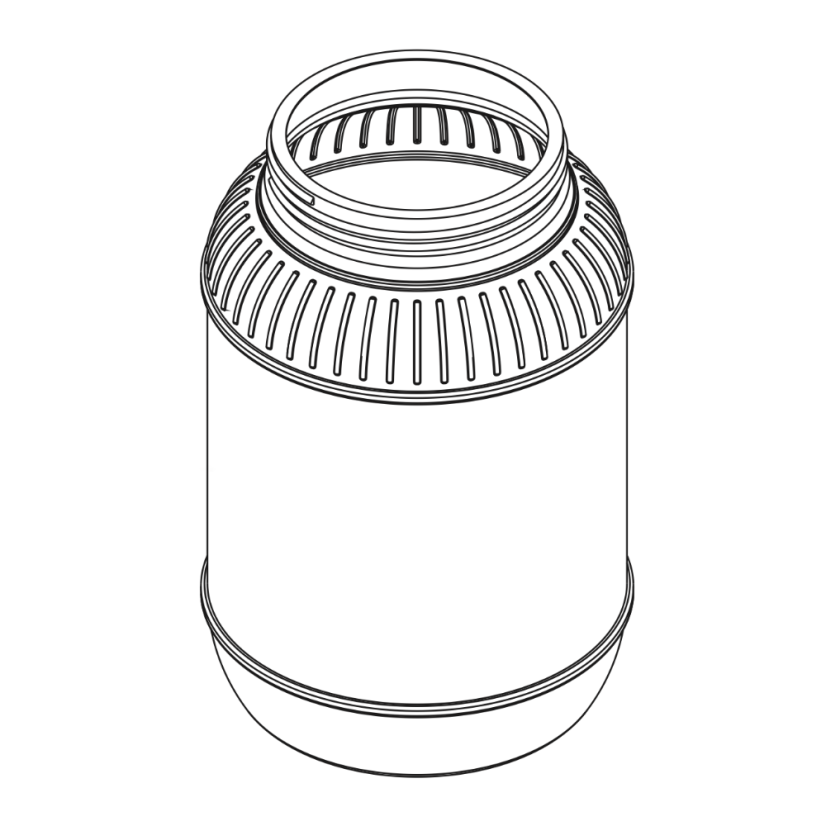

Replaceable Liner Polyethylene
Capacity without Liner 5 Liters
Liner Capacity 3.8 Liters
Overall Width 28.3 cm (11.14”)
Overall Height 40.6 cm (15.98”)
Maximum Operating Pressure 15 psi (1 bar)
