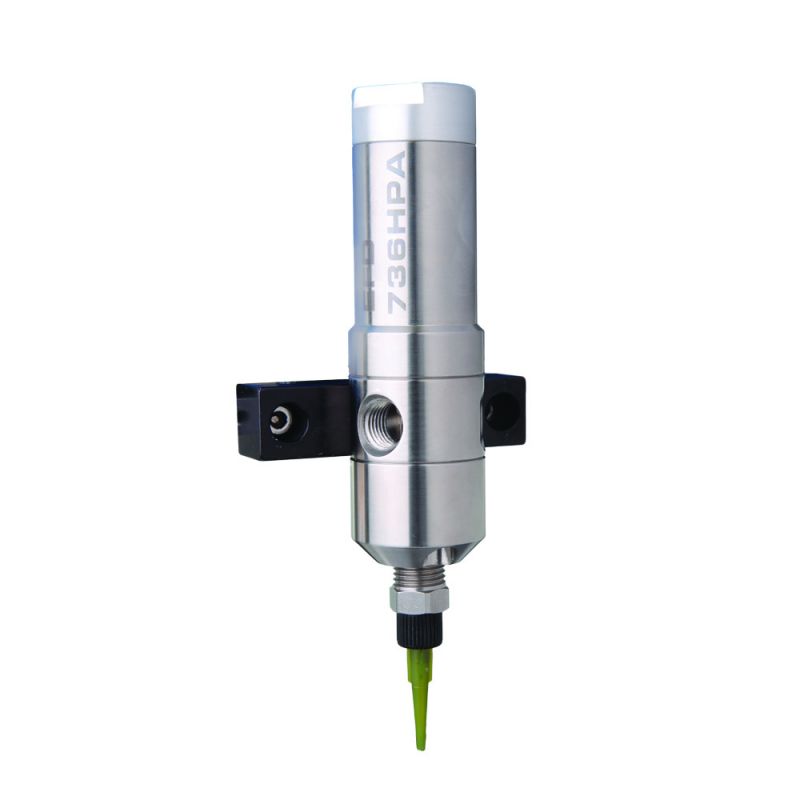

Polski (EUR)736HPA HIGH PRESSURE VALVE – titanium nitride-coated spool
Product code: 7028951
High-pressure valve for sealant and lubricant control
The unique 736HPA-NV balanced tank valve easily applies industrial sealants, lubricants, and silicones at high fluid pressures.
• Maximum fluid pressure up to 172 bar (2500 psi).
• Stroke limit adjustment for consistent bead widths and dot profiles.
• Reduces opening surge and regulates snuff-back.
• Titanium Nitride (TiN) coated spool version for RTV silicone dispensing.
• Designed for demanding high-viscosity industrial applications. More
The unique 736HPA-NV balanced tank valve easily applies industrial sealants, lubricants, and silicones at high fluid pressures.
• Maximum fluid pressure up to 172 bar (2500 psi).
• Stroke limit adjustment for consistent bead widths and dot profiles.
• Reduces opening surge and regulates snuff-back.
• Titanium Nitride (TiN) coated spool version for RTV silicone dispensing.
• Designed for demanding high-viscosity industrial applications. More
| 1K/2K | Single Component |
|---|---|
| Type | High Pressure |
| Series | 736 |
| Wetted material | Stainles Steel 303 |
FEATURES AND BENEFITS
- Opening surge control and adjustable snuff-back limit.
- Compact dimensions and weight with all-stainless steel construction.
- Cycle rate exceeds 400 per minute for high-speed applications.
- Handles fluid inlet pressure up to 2,500 psi (172 bar).
TECHNICAL SPECIFICATIONS
| Parameter | Value |
| Maximum Fluid Pressure | 2500 psi (172 bar) |
| Weight | 544 g (19.2 oz) |
| Body Material | Type 303 Stainless Steel |
| Spool | Stainless Steel, Titanium Nitride coated |
| Fluid Inlet Thread | 1/4 NPT internal |
| Cycle Rate | Exceeds 400/min |
| Spool Seals | Polyester elastomer |
Maintenance guide
(pdf, 1.4 MB)
Installation guide
(pdf, 396 kB)
Data sheet
(pdf, 823.7 kB)
3D model
(zip, 1.6 MB)
