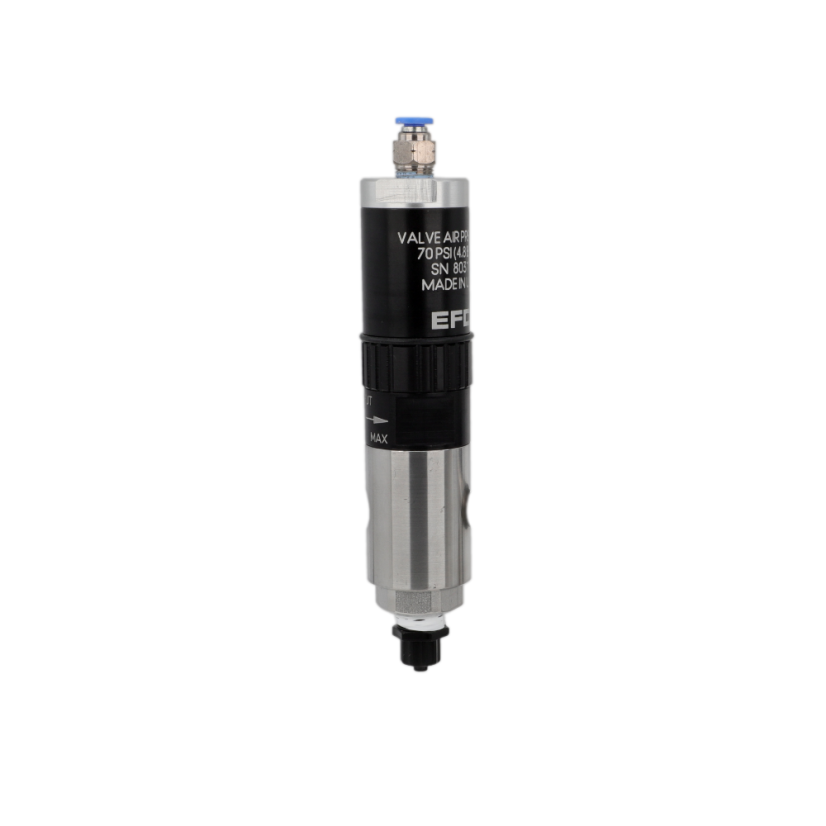

Polski (EUR)725DA-SS ADJUSTABLE PISTON VALVE WITH SS FLUID CHAMBER
Product code: 7021014
Piston valves for precise deposits of viscous fluids
The 725D Series dispensing valves apply repeatable amounts of medium-to-thick fluids, including greases and silicones.
• 725DA-SS Model: Adjustable stroke for fluid flow and snuff-back control.
• 725D-SS Model: Non-adjustable version providing a constant stroke for fixed setups.
• Robust piston design for long service life.
• Durable stainless steel wetted parts.
• Ideal for consistent dispensing of high-viscosity materials. More
The 725D Series dispensing valves apply repeatable amounts of medium-to-thick fluids, including greases and silicones.
• 725DA-SS Model: Adjustable stroke for fluid flow and snuff-back control.
• 725D-SS Model: Non-adjustable version providing a constant stroke for fixed setups.
• Robust piston design for long service life.
• Durable stainless steel wetted parts.
• Ideal for consistent dispensing of high-viscosity materials. More
| 1K/2K | Single Component |
|---|---|
| Type | Piston |
| Series | 725 |
| Wetted material | Stainles Steel 303 |
Features and benefits
- Adjustable "snuff-back" feature at the end of the cycle ensures clean, drip-free shutoff.
- Diaphragm life exceeds 50 million cycles at speeds over 400 cycles/min.
- Excellent chemical resistance with FDA-compliant Type 303 stainless steel fluid body.
- Low-maintenance design with precise stroke adjustment for high-flow applications.
Technical specifications
| Parameter | Value |
| Dimensions | 152.4 mm length x 29.5 mm diameter (6.00" x 1.16") |
| Weight | 326 g (11.5 oz) |
| Maximum Fluid Pressure | 6.9 bar (100 psi) |
| Fluid Body Material | Type 303 Stainless Steel |
| Seal Head / Diaphragm | UHMW Polymer (FDA compliant) |
| Actuating Air Pressure | 4.8 bar (70 psi) |
| Cycle Rate | Exceeds 400 cycles/min |
Installation guide
(pdf, 1 MB)
Maintenance guide
(pdf, 1.5 MB)
nordson_efd_725d-725da_tech_support_guide.pdf
(pdf, 1.4 MB)
Data sheet
(pdf, 261.6 kB)
3D model
(zip, 227 kB)
