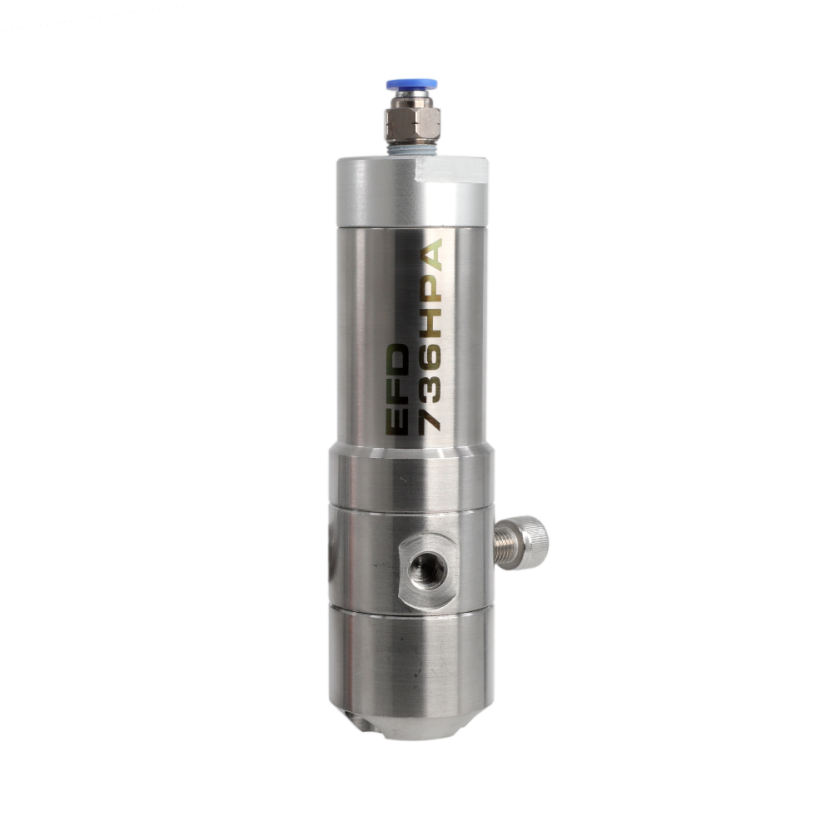

736HPA HIGH PRESSURE VALVE

Product code: 7013449

High pressure valve for sealant and grease control
Unique 736HPA-NV balanced-spool valve easily applies industrial sealants, grease and silicones at fluid pressures up to 2500 psi (172 bar).To ensure consistent bead widths and dot profiles, a stroke limit adjustment is used to reduce opening surge and regulate snuff-back. More

1K/2K	Single Component
Type	High Pressure
Series	736
Wetted material	Stainles Steel 303

Features and Benefits

• Opening surge control

• Adjustable snuff-back cutoff

• Compact size and weight

• All stainless steel construction

• Auxiliary air inlet air-assist closure

• Cycle rate exceeds 400/minute

• Fluid input up to 2500 psi (172 bar)

Specifications

Weight (less fittings): 544 grams (19.2 oz)
Actuating air pressure: 70 psi (4.8 bar)
Maximum fluid pressure: 2500 psi (172 bar)
Fluid inlet thread: 1/4 NPT female
Mounting: 5/16-24 UNF tapped hole
Cycle rate: Exceeds 400 per minute
Air cylinder body: Type 303 stainless steel
Fluid body and outlet cap: Type 303 stainless steel
Piston: Hard-coated aluminum
Spool: Stainless, hard chrome coated
Spool seals: Polyester elastomer
Wetted parts: Spool, spool seals, fluid body, body cap
