български език (EUR)FLEXIBLE TIP GAUGE 20 PINK 1,5″ 1000
Product code: 7018203

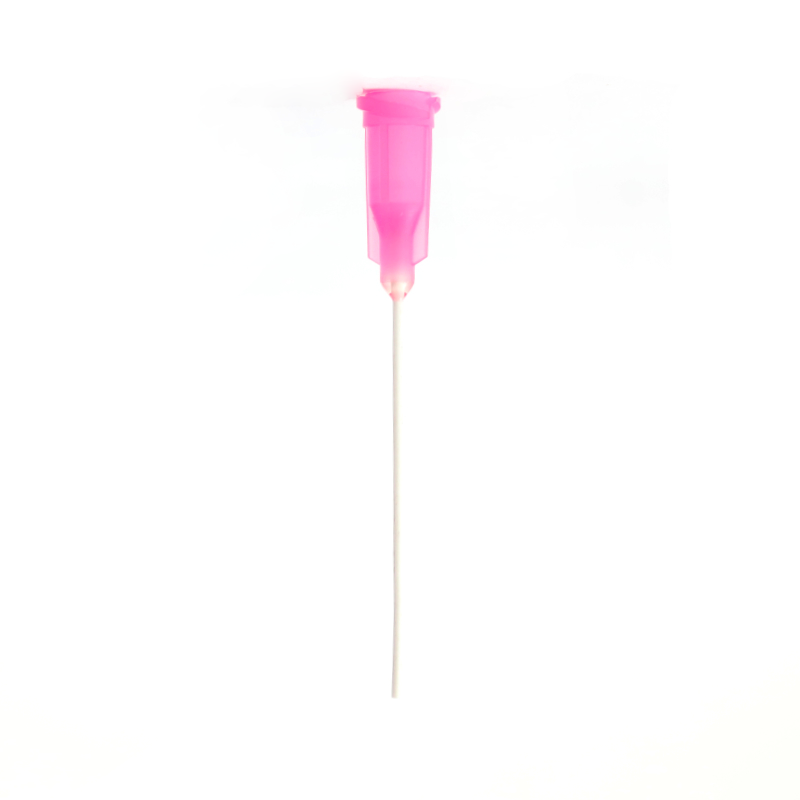

Flexible Tip Gauge 20 Pink 1.5″ 1000 from Nordson with a gauge of 20, a pink colour, a length of 38.1 mm (1.50″), an inner diameter of 0.61 mm (0.024″) and an outer diameter of 0.81 mm (0.032″). It is supplied in packs of 1000 pieces. More
Parameters
| Gauge | 20 |
|---|---|
| Color | Pink |
| ID milimeter (inch) | 0.61 mm (0.024″) |
| OD milimetr (inch) | 0.81 mm (0.032″) |
| Length millimeter (inch) | 38.1 mm (1.50″) |
| Material tubing | Stainless steel 304 |
| Material HUB | Polypropylene |
| Thread | Luer Lock |
| Packaging (pcs in box) | 1000 |
Flexible dispensing tip with luer lock. OD 0.81 mm. Packaging 1000 pieces. Tubing can be cut to length.
This product features a gauge of 20, a pink colour, an inner diameter of 0.61 mm (0.024″) and an outer diameter of 0.81 mm (0.032″). It also offers a length of 38.1 mm (1.50″), tubing made of stainless steel 304, a polypropylene hub and a Luer Lock connection. It is supplied in packs of 1000 pieces.
Documents and 3D models
3D model
(zip, 55.6 kB)
