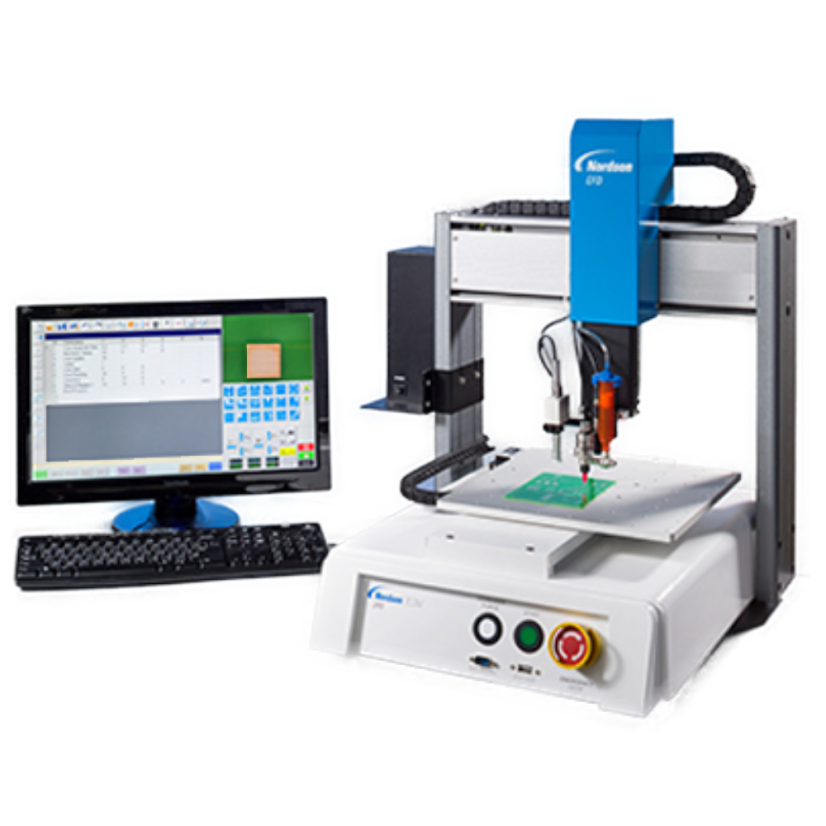

DESKTOP DISPENSING ROBOT NORDSON EV6

More photos (7)

Add to favourites Add to compare list

Product code: 7362104

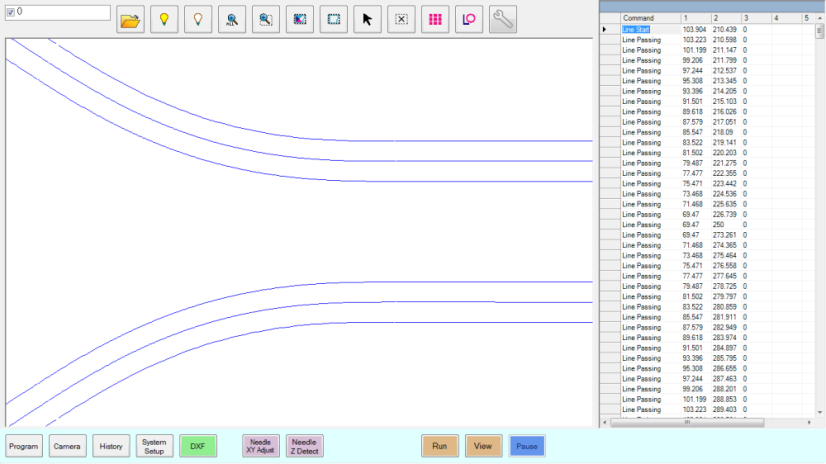

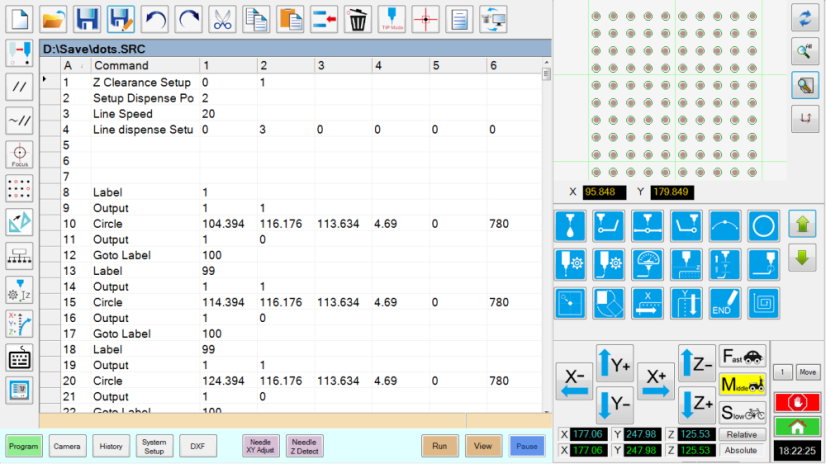

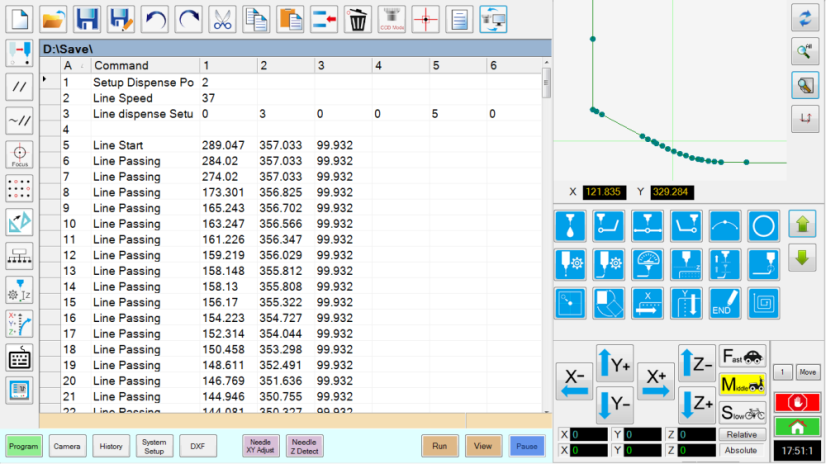

The EV6 Series offers a cost-effective solution for precision automated dispensing, equipped with a simple vision system. This desktop robot allows for easy programming of complex dispensing patterns thanks to the intuitive DispenseMotion™ software, which uses the camera for visual path confirmation and quick point setup. It is ideal for improving production quality and consistency while maintaining low operating costs.

Parameters

Type	EV
Number of Axes	3 axis
Programming	PC + camera
Maximum working area (X/Y/Z)	570/500/150 mm
Workpiece Payload	10 kg
Tool Payload	3 kg

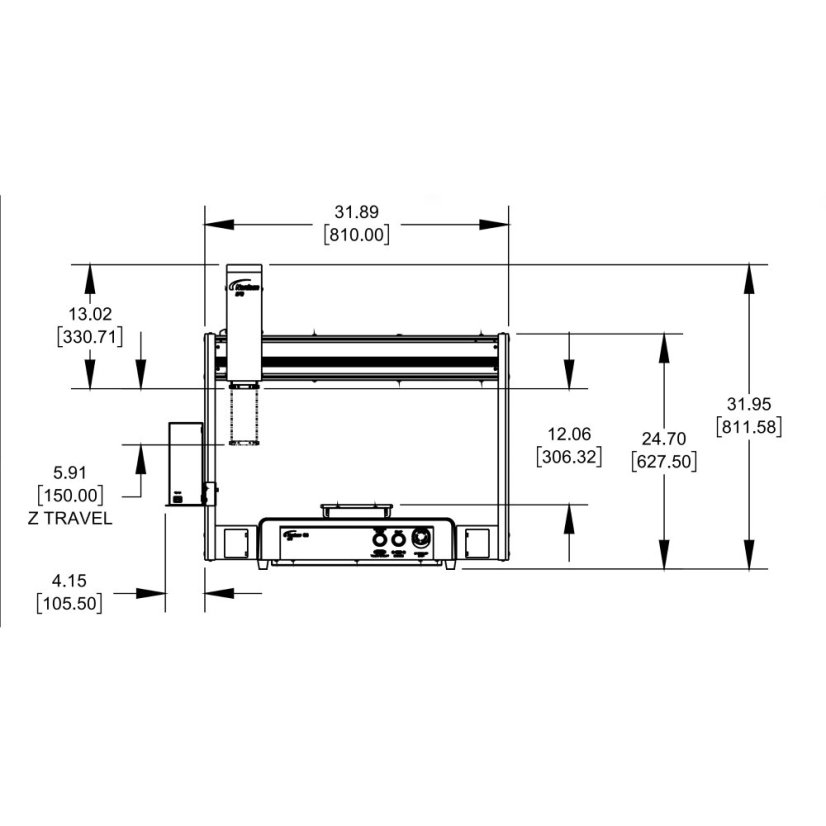

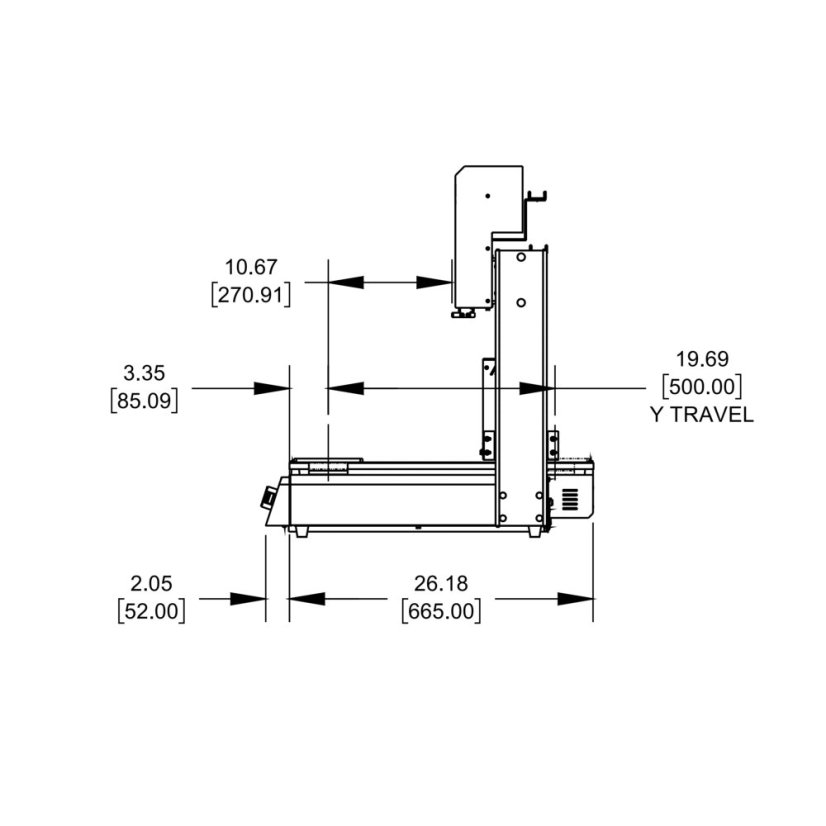

Dimensions	913w x 812h x 718d mm
Maximum speed	800/320mm/s
Drive system	3-phase micro stepping motor
Memory capacity	PC storage
External inputs/outputs	8 inputs / 8 outputs
Repeatability	±0.008 mm / axis
Weight (kg)	58 kg
