DESKTOP DISPENSING ROBOT NORDSON EV2

More photos (7)

Add to favourites Add to compare list

Product code: 7361349

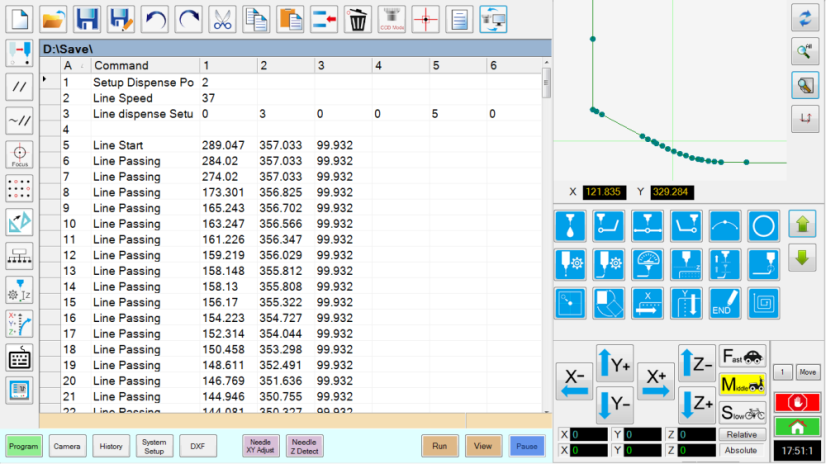

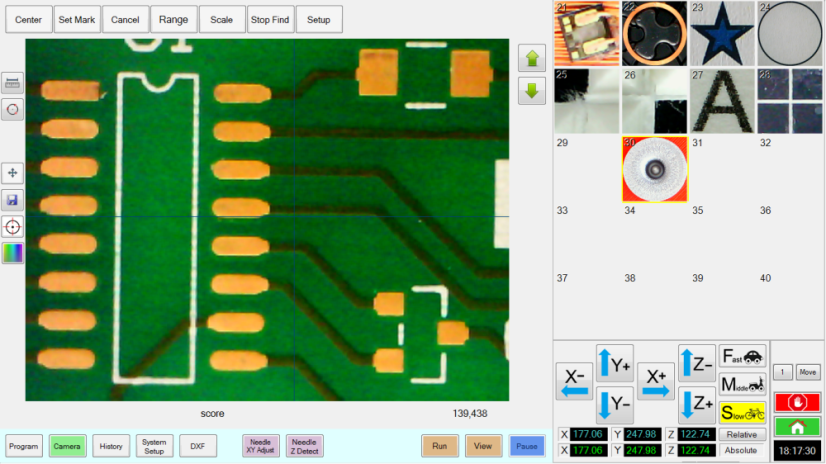

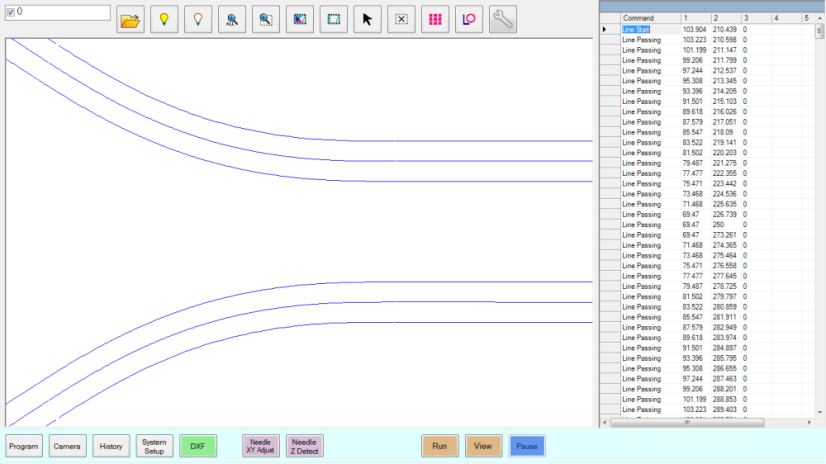

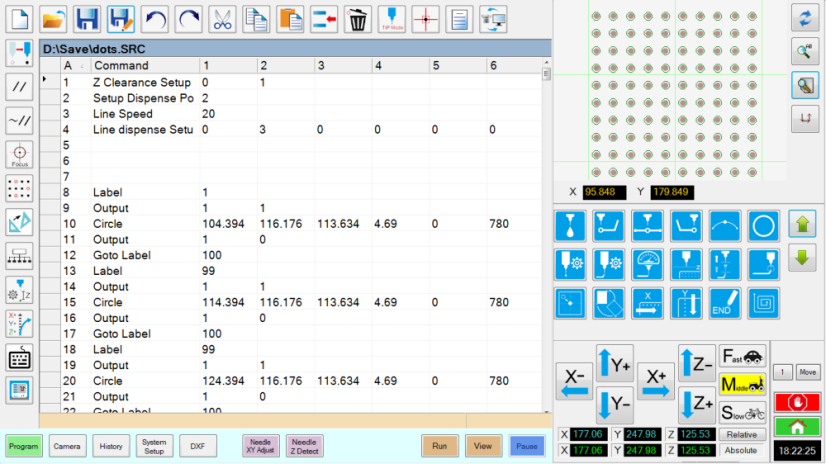

The EV2 model serves as the entry point into Nordson EFD’s vision-supported automation. This 3-axis desktop robot is equipped with a basic camera for easy setup of dispensing points and paths, eliminating positioning errors common with manual systems. Driven by intuitive DispenseMotion™ software, the EV2 offers enhanced production consistency and speed while maintaining ease of use and a very favorable cost of ownership.

Parameters

Type	EV
Number of Axes	3 axis
Programming	PC + camera
Maximum working area (X/Y/Z)	150/200/50 mm
Workpiece Payload	5 kg
Tool Payload	1.5 kg

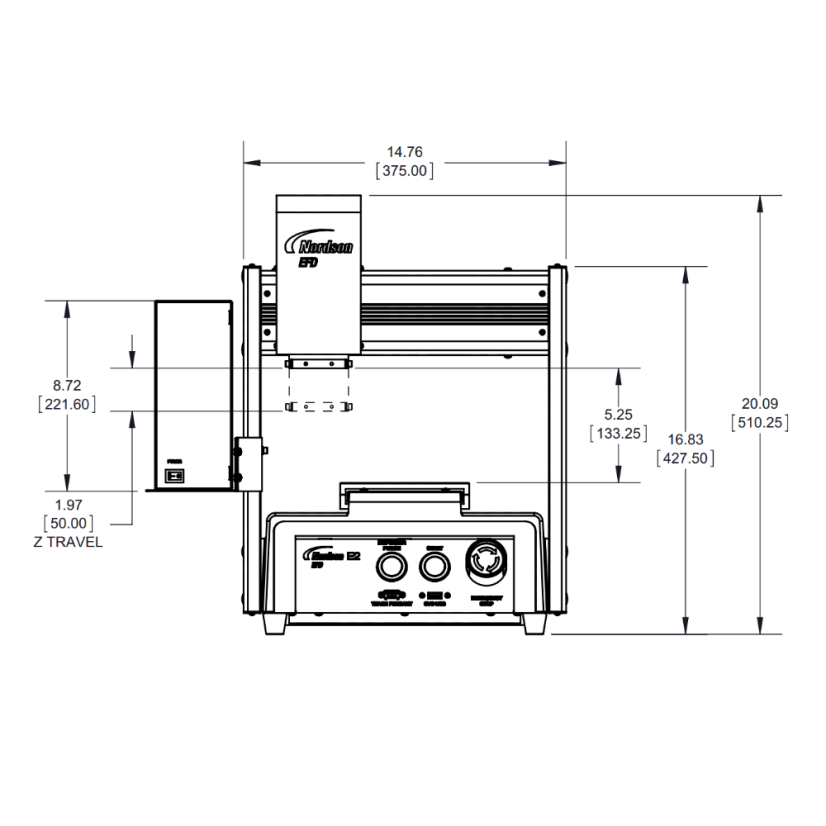

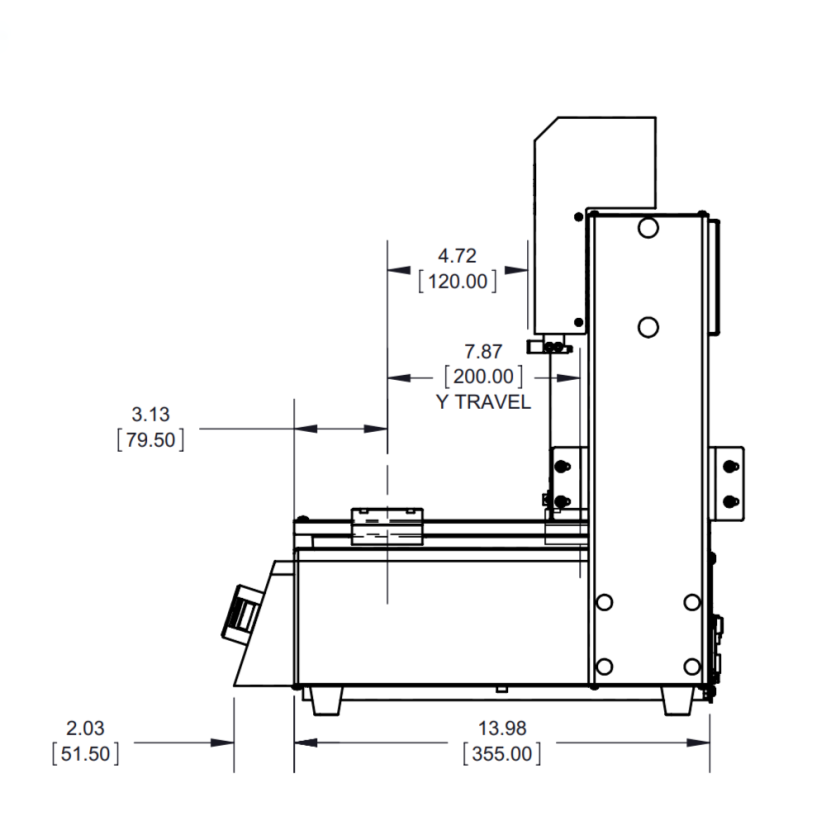

Dimensions	481w x 510h x 432d mm
Maximum speed	500/250 mm/s
Drive system	3-phase micro stepping motor
Memory capacity	PC storage
External inputs/outputs	8 inputs / 8 outputs
Repeatability	±0.008 mm / axis
Weight (kg)	29 kg
