български език (EUR)CHAMFERED TIP GAUGE 25 RED 0,5″ 1000
Product code: 7018354

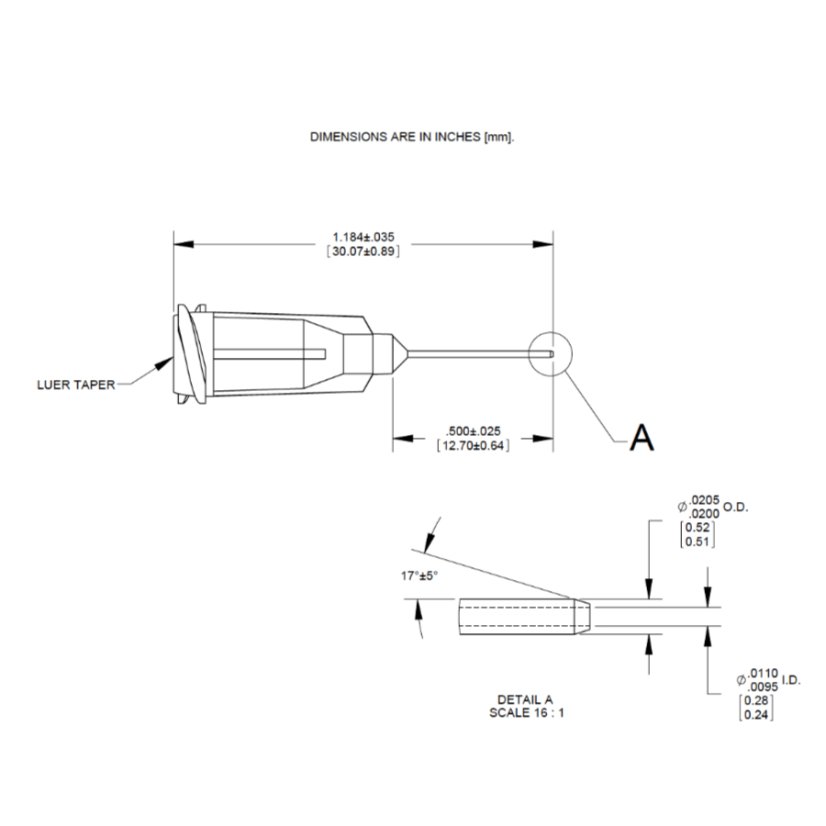

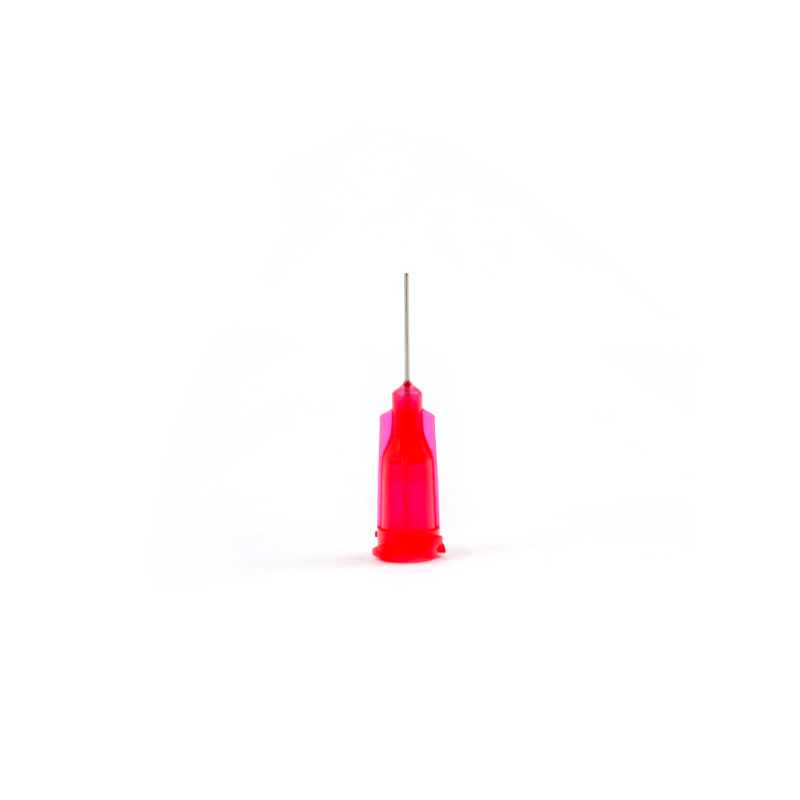

Chamfered Tip Gauge 25 Red 0.5″ 1000 from Nordson with a gauge of 25, a red colour, a length of 12.7 mm (0.50″), an inner diameter of 0.33 mm (0.013″) and an outer diameter of 0.51 mm (0.020″). It is supplied in packs of 1000 pieces. More
Parameters
| Gauge | 25 |
|---|---|
| Color | Red |
| ID milimeter (inch) | 0.33 mm (0.013″) |
| OD milimetr (inch) | 0.51 mm (0.020″) |
| Length millimeter (inch) | 12.7 mm (0.50″) |
| Material tubing | Stainless steel 304 |
| Material HUB | Polypropylene |
| Thread | Luer Lock |
| Packaging (pcs in box) | 1000 |
Chamfered tip with luer lock. ID 0.25 mm. Packaging box 1000 pieces. Use for microdot application of low viscosity fluids.
This product features a gauge of 25, a red colour, an inner diameter of 0.33 mm (0.013″) and an outer diameter of 0.51 mm (0.020″). It also offers a length of 12.7 mm (0.50″), tubing made of stainless steel 304, a polypropylene hub and a Luer Lock connection. It is supplied in packs of 1000 pieces.
Documents and 3D models
3D model
(zip, 60.2 kB)
