български език (EUR)CHAMFERED TIP GAUGE 23 ORANGE 0,5″ 50
Product code: 7018321

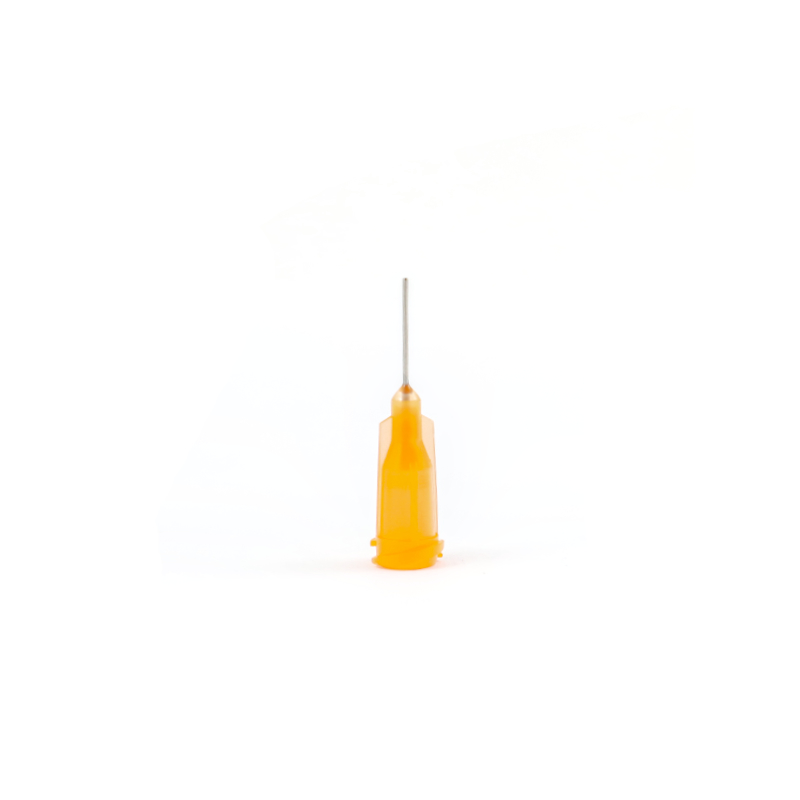

Chamfered Tip Gauge 23 Orange 0.5″ 50 from Nordson with a gauge of 23, an orange colour, a length of 12.7 mm (0.50″), an inner diameter of 0.33 mm (0.013″) and an outer diameter of 0.64 mm (0.025″). It is supplied in packs of 50 pieces. More
Parameters
| Gauge | 23 |
|---|---|
| Color | Orange |
| ID milimeter (inch) | 0.33 mm (0.013″) |
| OD milimetr (inch) | 0.64 mm (0.025″) |
| Length millimeter (inch) | 12.7 mm (0.50″) |
| Material tubing | Stainless steel 304 |
| Material HUB | Polypropylene |
| Thread | Luer Lock |
| Packaging (pcs in box) | 50 |
Chamfered tip with luer lock. ID 0.33 mm. Packaging box 50 pieces. Use for microdot application of low viscosity fluids.
This product features a gauge of 23, an orange colour, an inner diameter of 0.33 mm (0.013″) and an outer diameter of 0.64 mm (0.025″). It also offers a length of 12.7 mm (0.50″), tubing made of stainless steel 304, a polypropylene hub and a Luer Lock connection. It is supplied in packs of 50 pieces.
Documents and 3D models
3D model
(zip, 60 kB)
