български език (EUR)CHAMFERED TIP GAUGE 18 GREEN 0,5″ 50
Product code: 7018129

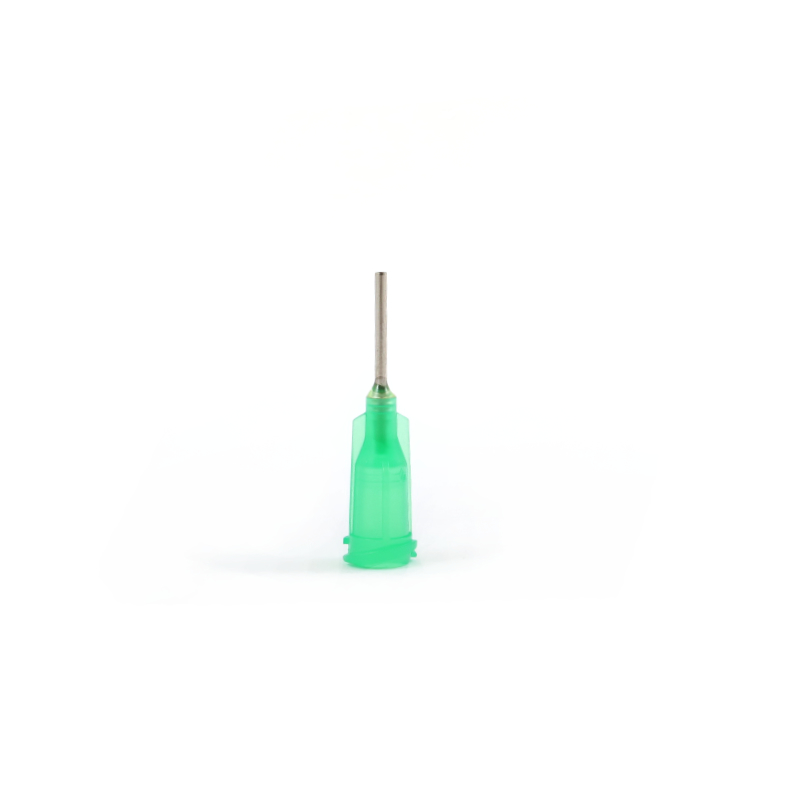

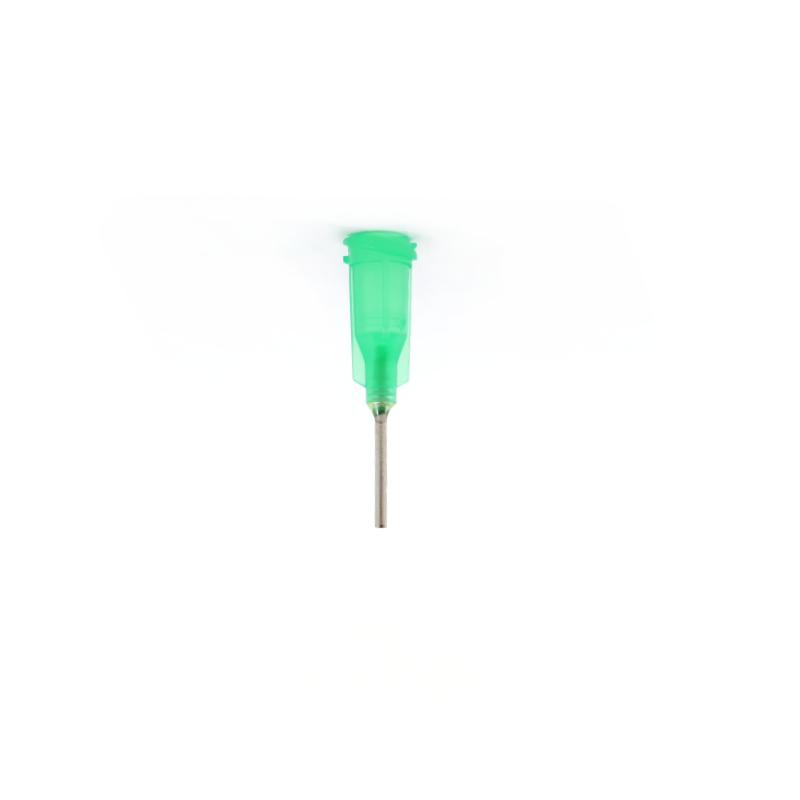

Chamfered Tip Gauge 18 Green 0.5″ 50 from Nordson with a gauge of 18, a green colour, a length of 12.7 mm (0.50″), an inner diameter of 0.84 mm (0.033″) and an outer diameter of 1.27 mm (0.050″). It is supplied in packs of 50 pieces. More
Parameters
| Gauge | 18 |
|---|---|
| Color | Green |
| ID milimeter (inch) | 0.84 mm (0.033″) |
| OD milimetr (inch) | 1.27 mm (0.050″) |
| Length millimeter (inch) | 12.7 mm (0.50″) |
| Material tubing | Stainless steel 304 |
| Material HUB | Polypropylene |
| Thread | Luer Lock |
| Packaging (pcs in box) | 50 |
Chamfered tip with luer lock. ID 0.84 mm. Packaging box 50 pieces. Use for microdot application of low viscosity fluids.
This product features a gauge of 18, a green colour, an inner diameter of 0.84 mm (0.033″) and an outer diameter of 1.27 mm (0.050″). It also offers a length of 12.7 mm (0.50″), tubing made of stainless steel 304, a polypropylene hub and a Luer Lock connection. It is supplied in packs of 50 pieces.
Documents and 3D models
3D model
(zip, 60.2 kB)
