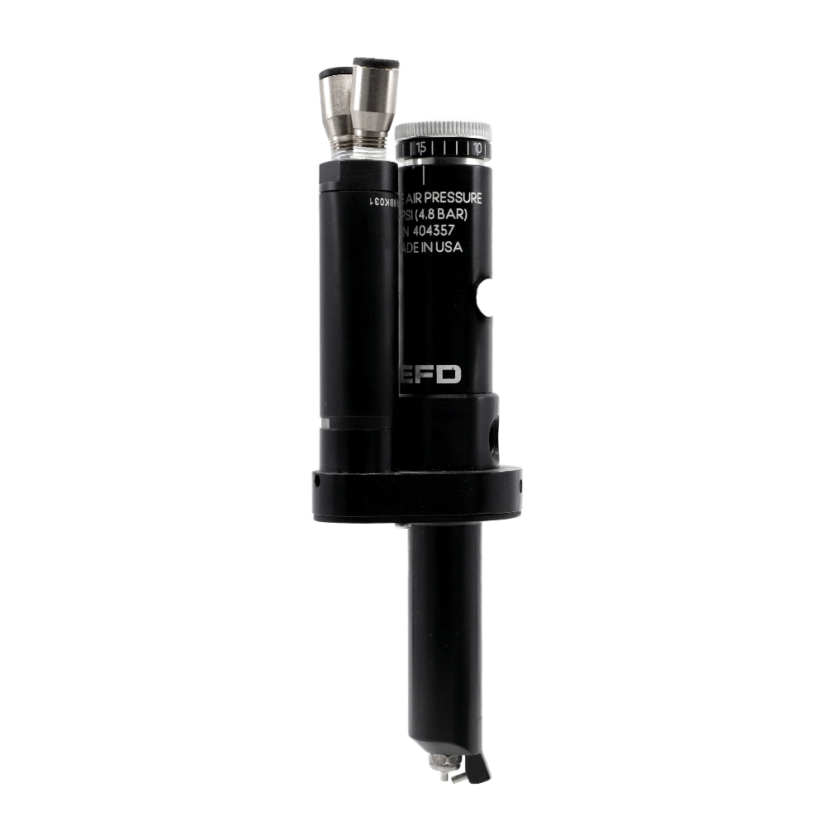

Polski (EUR)782RA RADIAL SPRAY VALVE
Product code: 7021649
Uniform 360° deposits of lubricants, primers, and other fluids

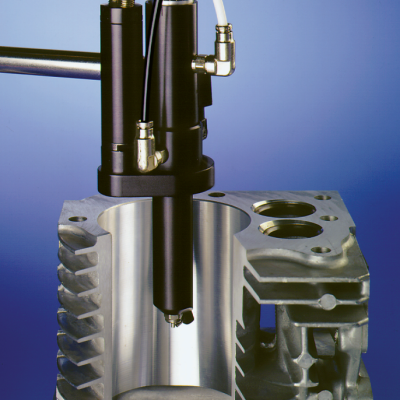

The unique 782RA Series air spray system applies a uniform, 360° coating of low-to-medium viscosity fluids inside cylinders.

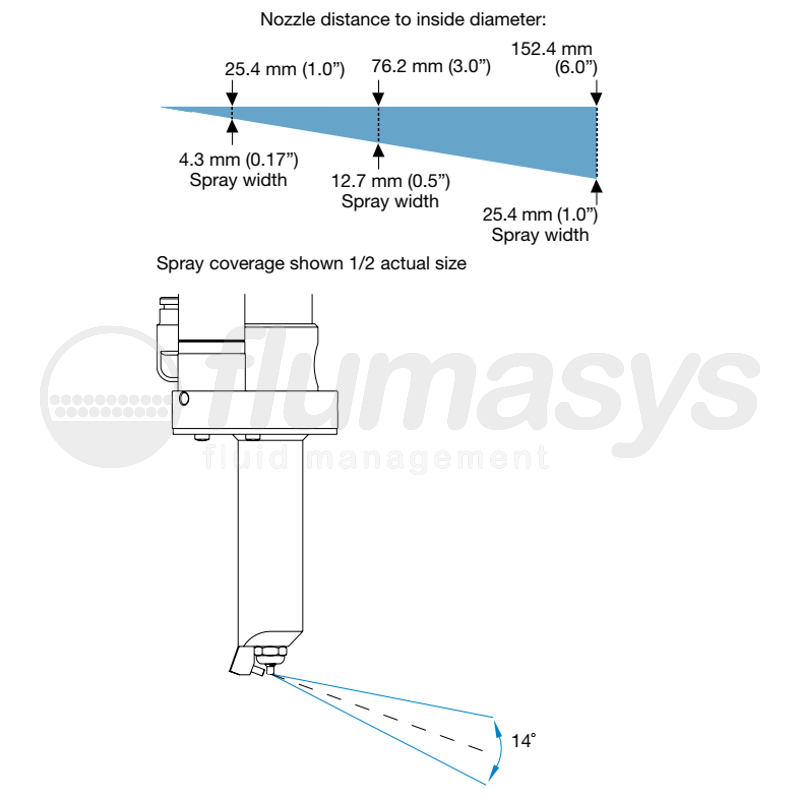

• Designed for cylinder diameters from 25.4 mm to 304.8 mm (1 to 12 inches).
• Uses Low Volume Low Pressure (LVLP) air for atomization.
• Precision air motor drives a rotating air cap to create a radial output.
• Produces a narrow radial spray without mist or overspray.
• Instant fluid shut-off ensures high transfer efficiency and uniform deposits. More
The unique 782RA Series air spray system applies a uniform, 360° coating of low-to-medium viscosity fluids inside cylinders.
• Designed for cylinder diameters from 25.4 mm to 304.8 mm (1 to 12 inches).
• Uses Low Volume Low Pressure (LVLP) air for atomization.
• Precision air motor drives a rotating air cap to create a radial output.
• Produces a narrow radial spray without mist or overspray.
• Instant fluid shut-off ensures high transfer efficiency and uniform deposits. More
| 1K/2K | Single Component |
|---|---|
| Type | Spray |
| Series | 782RA |
| Wetted material | Stainles Steel 303 |
FEATURES AND BENEFITS
- High transfer efficiency with no misting or overspray.
- Adjustable air nozzle and controllable fluid flow rate.
- Self-adjusting PTFE seals and low-maintenance design.
- Cycle rate exceeds 300 cycles per minute.
TECHNICAL SPECIFICATIONS
| Parameter | Value |
| Dimensions | 174.5 mm length x 53.8 mm diameter (6.87" x 2.12") |
| Weight | 480.8 g (16.9 oz) |
| Maximum Fluid Pressure | 20.7 bar (300 psi) |
| Body Material | Hard-coated Aluminum |
| Needle and Nozzle | Stainless Steel (passivated) |
| Needle Packings | PTFE |
| Cycle Rate | Exceeds 300 cycles/min |
