7860C-RS RADIAL SPINNER SYSTEM

Product code: 7021798

Cost-effective dispensing of production fluids inside cylindrical parts

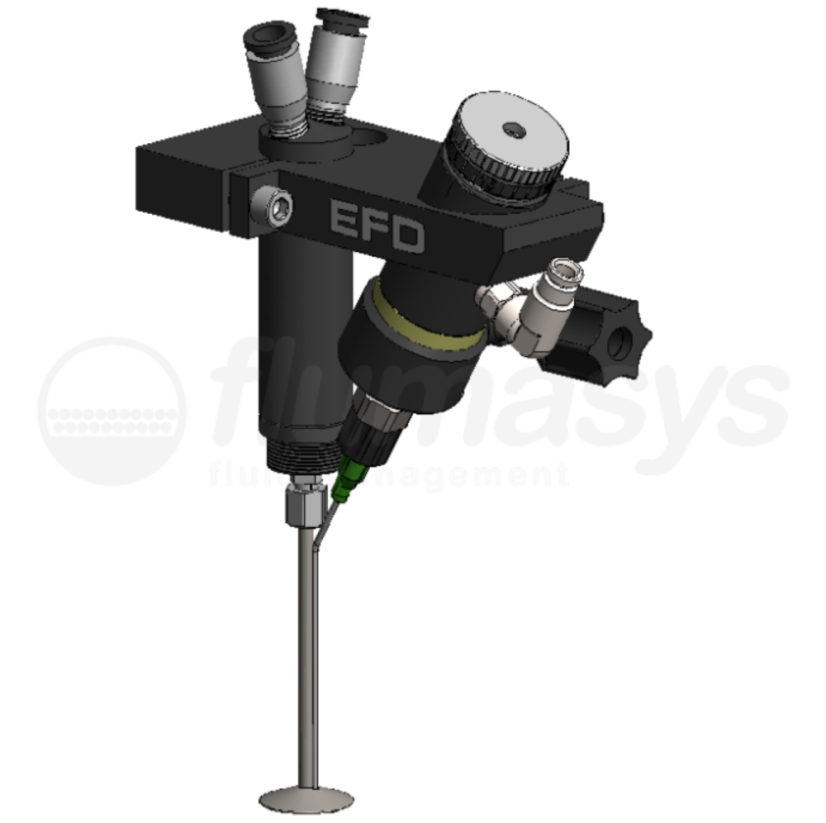

Nordson EFD’s Radial Spinner System facilitates the application of neat, consistent bands of fluids inside cylindrical parts.

• Designed for part diameters from 10 mm to 127 mm (0.4″ – 5″).
• Suitable for low-to-medium viscosity fluids.
• The valve dispenses fluid onto a rotating conical disk, which centrifugalizes it onto the surface.
• System includes precision valve, air motor, bracket, and controller.
• Disks and tips are available in various sizes to suit a wide range of applications. More

1K/2K	Single Component
Type	Radial spinner
Series	7860
Wetted material	Stainles Steel 303

FEATURES AND BENEFITS

Applies precise amounts of material to the correct location without waste.
Improves product performance and appearance by eliminating mess and rework.
Low maintenance design capable of operating in vertical or horizontal positions.
Reduces downtime and enhances overall production efficiency.

TECHNICAL SPECIFICATIONS

Parameter	Value
Air Consumption	<3.2 SCFM at 5.4 bar (80 psi)
Shaft Material	Tool Steel
Disc Material	Passivated Type 303 Stainless Steel
Motor Housing	Black Anodized Aluminum
Required Air Pressure	Min. 4.8 bar (70 psi)
Available Disc Sizes	9 mm, 12 mm, 15 mm, 19 mm

3D model spinner 15 mm 21ga (zip, 3.5 MB)

3D model spinner 19mm 18ga (zip, 3.5 MB)

3D model spinner 12mm 21ga (zip, 3.5 MB)

3D model spinner 9mm 23ga (zip, 3.5 MB)

Installation guide (pdf, 1.3 MB)

Data sheet (pdf, 1 MB)
