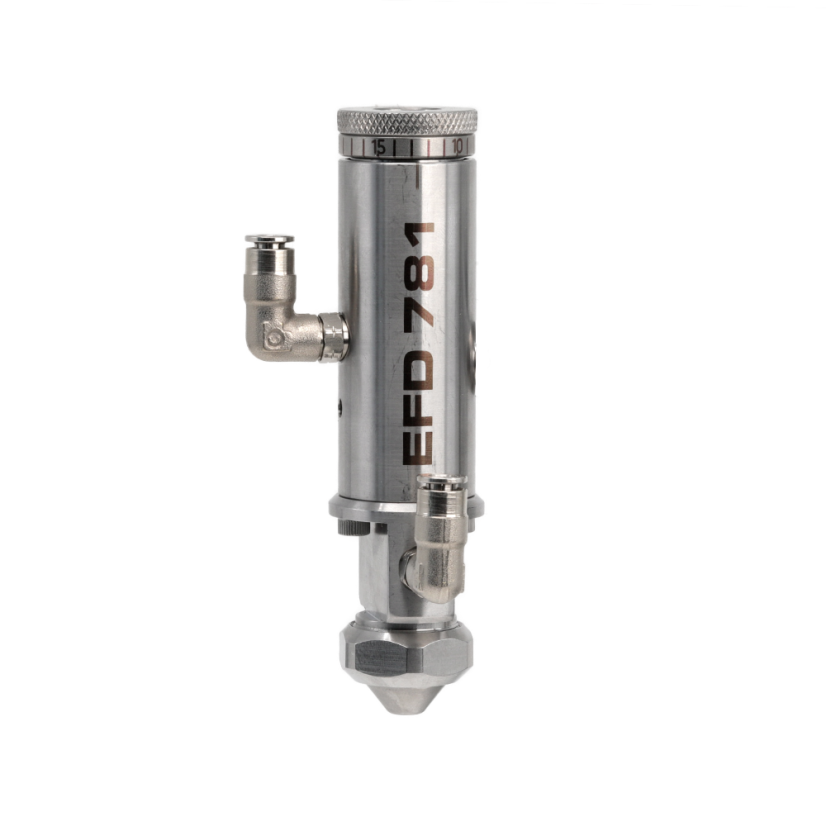

781S-SS SPRAY VALVE (0,046″ nozzle)

Product code: 7007031

Consistent, accurate 781S spray valve systems

The 781S Series Low Volume Low Pressure (LVLP) spray systems provide uniform application of low to medium viscosity fluids.

• Reliably dispense quantities from microliters to milliliters.
• Circular pattern with diameters from 4.3 to 50.8 mm (0.17″ to 2.0″).
• Fan pattern with widths up to 165.1 mm (6.5″).

The combination of adjustable fluid flow, adjustable nozzle air pressure, and positive shut-off ensures excellent spray control. More

1K/2K	Single Component
Type	Spray
Series	781
Wetted material	Stainles Steel 303

Features and Benefits

Highly uniform coverage area with no mist or excessive overspray.
Fully adjustable fluid flow and spray air pressure for maximum process control.
High transfer efficiency and cycle rates exceeding 400 per minute.
Low-maintenance, all-stainless steel (Type 303) construction for heavy-duty use.

Technical Specifications

Parameter	Value
Maximum Fluid Pressure	20.7 bar (300 psi)
Material (Body, Needle, Tip)	Type 303 Stainless Steel
Needle Packings	Teflon®
Actuating Air Pressure	4.8 – 6.2 bar (70 – 90 psi)
Weight	405.3 g (14.2 oz)
Dimensions	104.6 mm x 26.9 mm (4.12" x 1.06")
