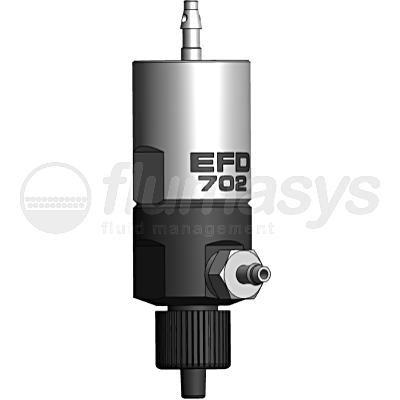

702V-A MINI DIAPHRAGM VALVE – Acetal

Product code: 7020680

Controlled, consistent coatings and bonds in a miniature design

The 702V-A miniature diaphragm valve is designed for drip-free coatings and consistent bonding in spaces with limited access.

• 60% smaller and 70% lighter, reducing wear and tear on robotic arms.
• Inert polymer diaphragm isolates fluid from the actuator cylinder.
• Fast on/off cycling and very fine flow control for consistent results.
• Acetal head ensures compatibility with anaerobic adhesives and cyanoacrylates.
• Ideal for metal-reactive fluids and UV-cure adhesives. More

1K/2K	Single Component
Type	Diaphragm
Series	702
Wetted material	Acetal

Features and benefits

Consistent shot-to-shot performance and fast, clean shutoff that eliminates dripping.
Unique valve design eliminates trapped air and bubbles within the fluid.
Low maintenance over millions of cycles and tamper-resistant stroke adjustment.
High cycle rate exceeding 500 per minute for maximum productivity.

Technical specifications

Parameter	Value
Maximum Fluid Pressure	4.8 bar (70 psi)
Fluid Chamber Material	Acetal Copolymer
Diaphragm Material	UHMW Polyethylene
Actuating Air Pressure	4.8 – 6.2 bar (70–90 psi)
Cycle Rate	Exceeds 500 cycles/min
Cylinder and Piston Material	Type 303 Stainless Steel
