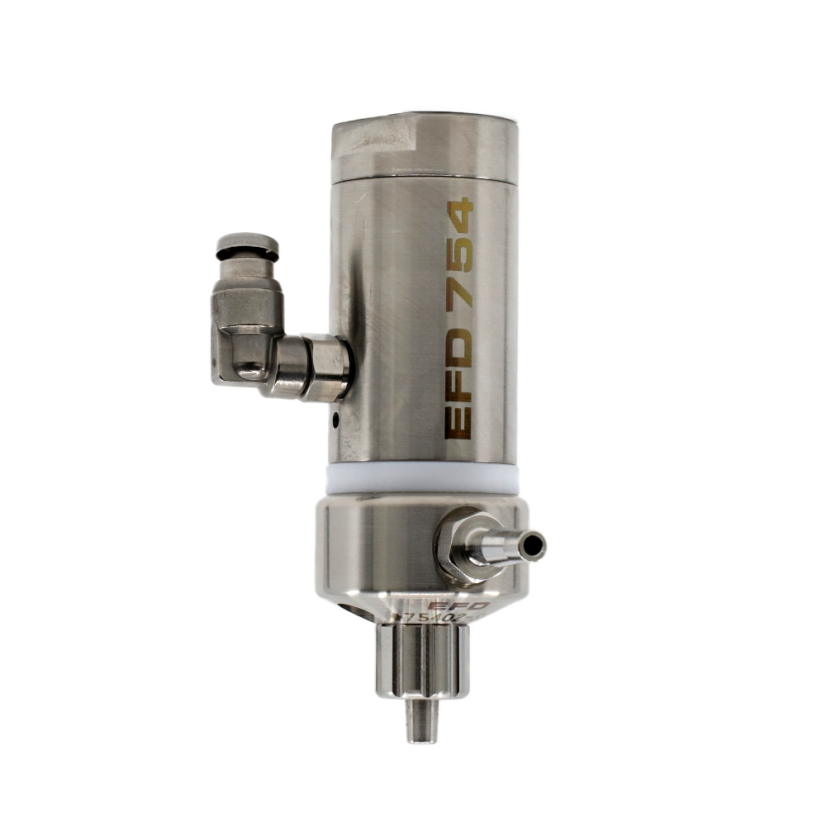

754V-SS ASEPTIC DIAPHRAGM VALVE

Product code: 7021514

Compact diaphragm valve for aseptic and sterile fluid applications

The 754V-SS aseptic dispensing valve system precisely controls the application of most low-to-medium viscosity fluids.

• Seal-less design with an inert PTFE diaphragm isolates the actuator from the valve.
• Fluid flow path with zero retention areas, critical for sterile applications.
• Wetted parts made of 316L stainless steel and PTFE.
• Suitable for CIP (Clean-In-Place) and SIP (Sterilize-In-Place) processes.
• Ideal for precise dispensing in aseptic and sterile environments. More

Parameters

1K/2K	Single Component
Type	Diaphragm
Series	754
Wetted material	Stainles Steel 316

Features and benefits

Precise and consistent deposit size with clean, drip-free cutoff.
Diaphragm life exceeds 100 million cycles at speeds over 500 cycles/min.
Easy Cleaning-In-Place (CIP) and autoclavable up to 260°C (500°F).
Compact 316L stainless steel design with FDA-compliant wetted parts.

Technical specifications

Parameter	Value

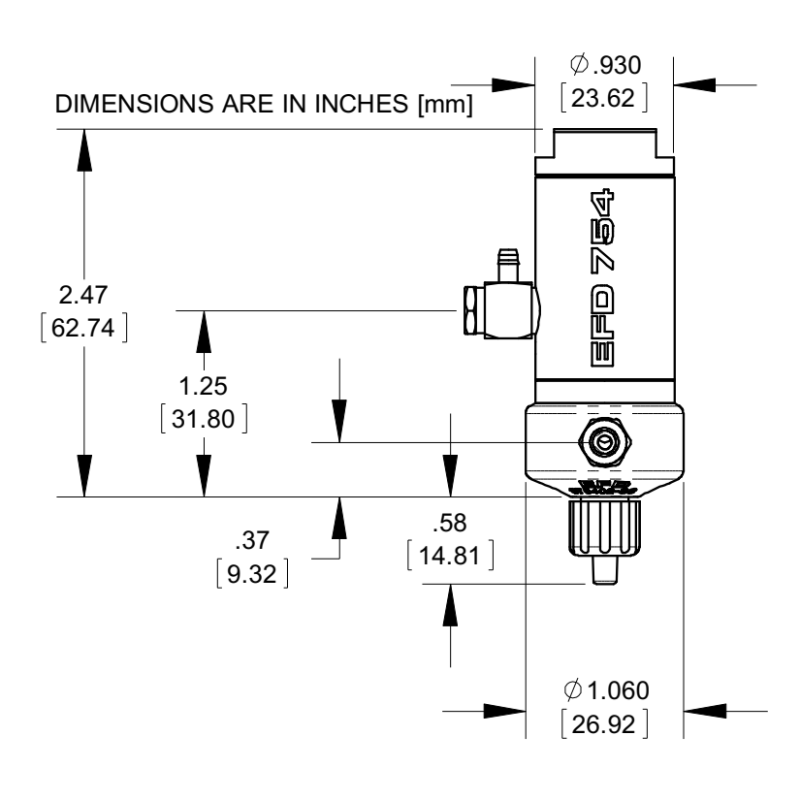

Dimensions	77.5 mm length x 26.9 mm diameter (3.05" x 1.06")
Weight	193.3 g (6.82 oz)
Maximum Fluid Pressure	4.8 bar (70 psi)
Material (Body, Piston)	Type 316L Stainless Steel
Actuating Air Pressure	4.8 bar (70 psi)
Diaphragm Material	PTFE
Fluid Outlet	Male Luer Lock
