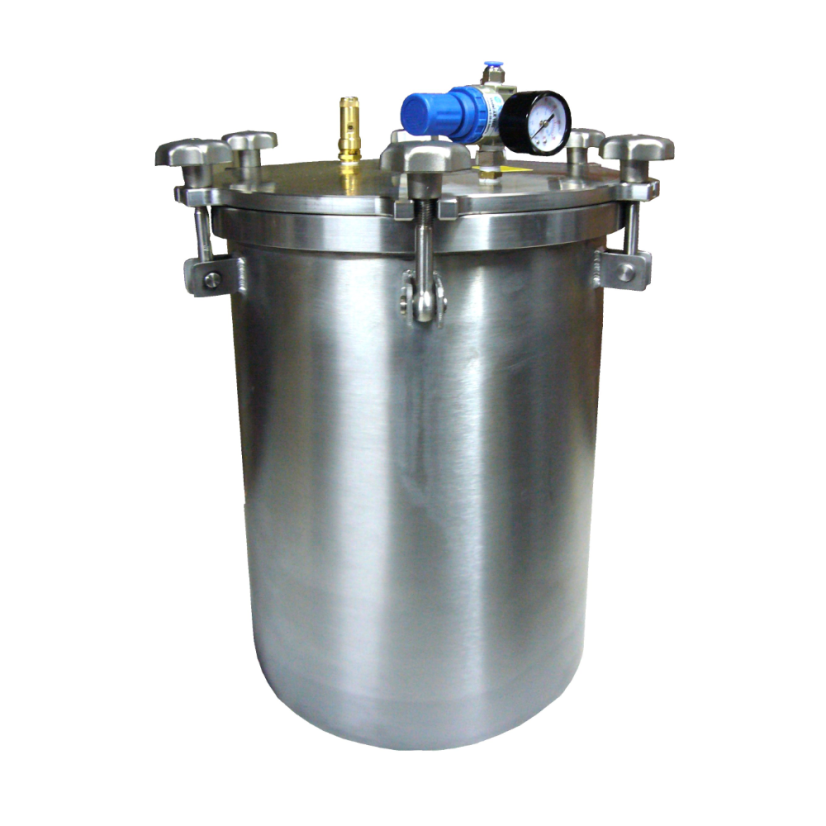

25L ST Series Pressure Vessel

Product code: 2500CL-ST

Standard pressure tanks maintain steady fluid pressure to produce the most accurate, repeatable deposits possible.All small pressure reservoirs are exclusively made of stainless steel. This ensures that content does not corrode the reservoir or gets contaminated. ST Tanks Series can operate to 100 °C.In addition to the standard pressure tanks series ST, special and custom versions can be supplied for all types of requirements. More

Type	ST
Volume	25 litres
Material	Stainless steel 304
Agitation	No agitation
Pressure range	0-6.9 bar (100 psi)

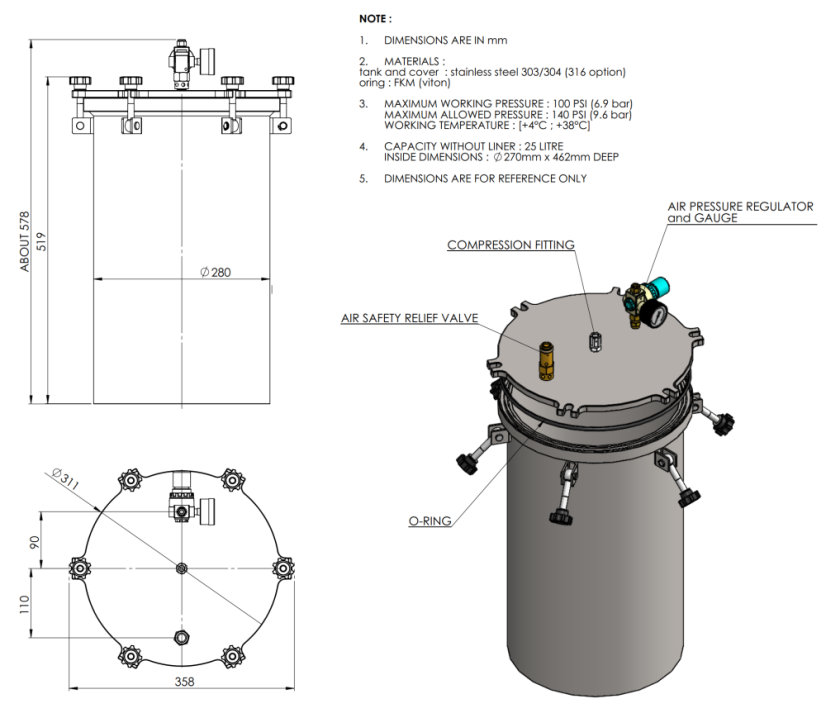

SPECIFICATIONS

Body	Stainless steel (SS 304)
Lid	Stainless steel (SS 303)
Sealing	Viton o-ring
Closure	Star nuts for lid release
Equipment	Pressure gauge, regulator and safety valve at 100 psi (7 bar)
Valve	Release valve up to 100 psi (7 bar)
Quick coupler	6 or 8 mm inlet quick coupler

ACCESSORIES

Quick-exhaust valve
Vessel pressure sensing
Media level sensing
