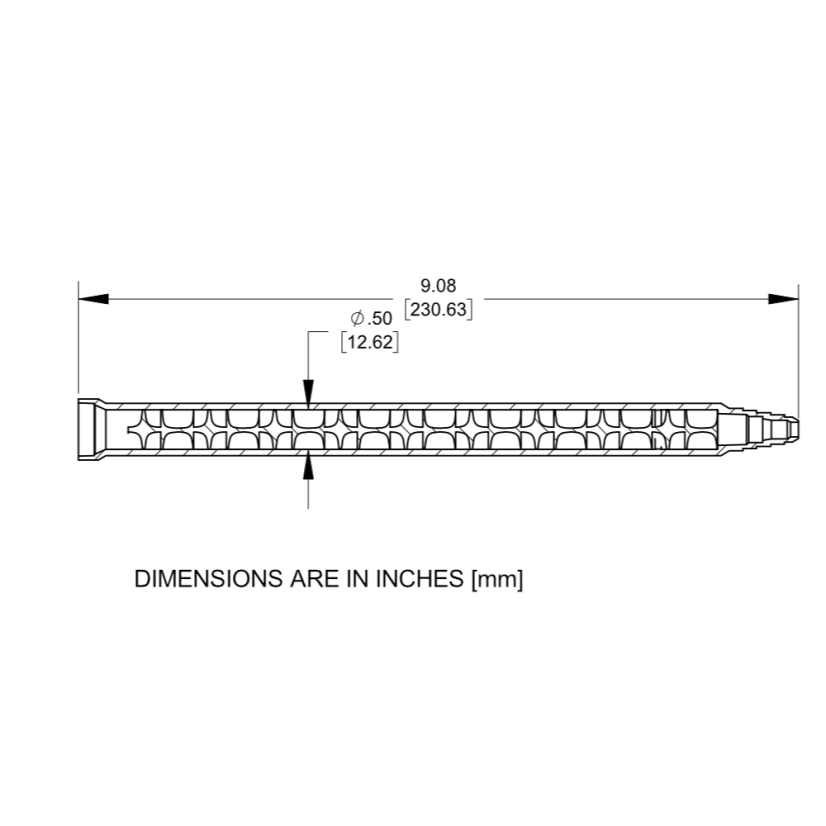

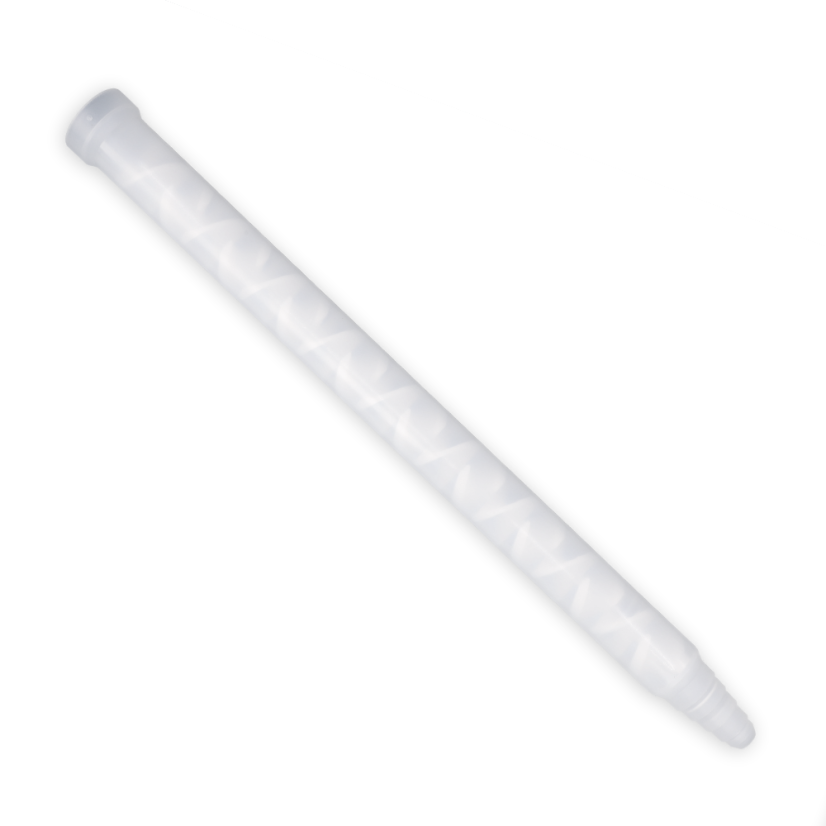

Static mixer NORDSON EFD 161-218

Type Bell
Mixing Elements 18
Housing Outlet Stepped
Element Diameter (mm/inch) 12.65 / 0.497“
Outside Diameter (mm/inch) 16.76 / 0.660“
Housing Length (cm/inch) 23.06 / 9.08“
Elements Material Acetal
Mixer Material Polypropylen
Pressure Limit (Psi@75°F / Bar@30°C) 270/ 19
Bell Inlet Housing (mm/inch) 16.69 / 0.657“
Outlet Tip Orifice (mm/inch) 4.57 / 0.18“
