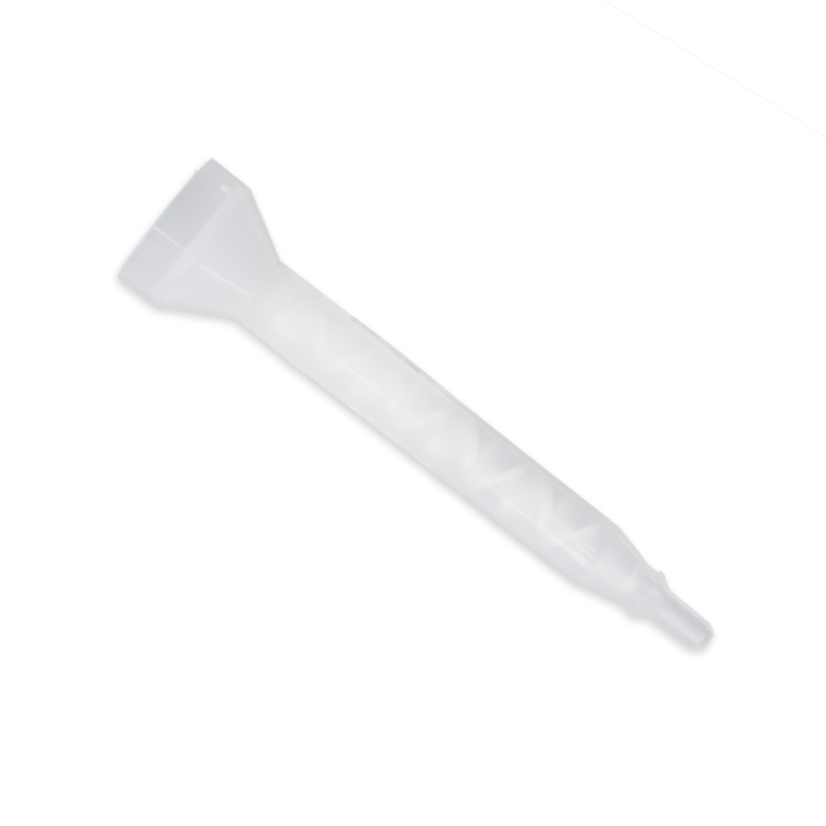

Static mixer NORDSON EFD 160-608SH

Product code: 7700830

The H-Tapered outlet is offered where precise placement of the adhesive is required. In order to connect Luer Needles or extensions, it is moulded with a new interlocking connection. This requires the attachment of a Luer Lok Adapter which must be ordered separately.

Parameters

Type	Bell
Mixing Elements	8
Housing Outlet	H Tapered
Element Diameter (mm/inch)	6.30 / 0.248“
Outside Diameter (mm/inch)	9.40 / 0.370“
Housing Length (cm/inch)	9.04 / 3.56“
Elements Material	Acetal
Mixer Material	Polypropylen
Pressure Limit (Psi@75°F / Bar@30°C)	360 / 25
Bell Inlet Housing (mm/inch)	16.69 / 0.657“
Outlet Tip Orifice (mm/inch)	2.29 / 0.09“
