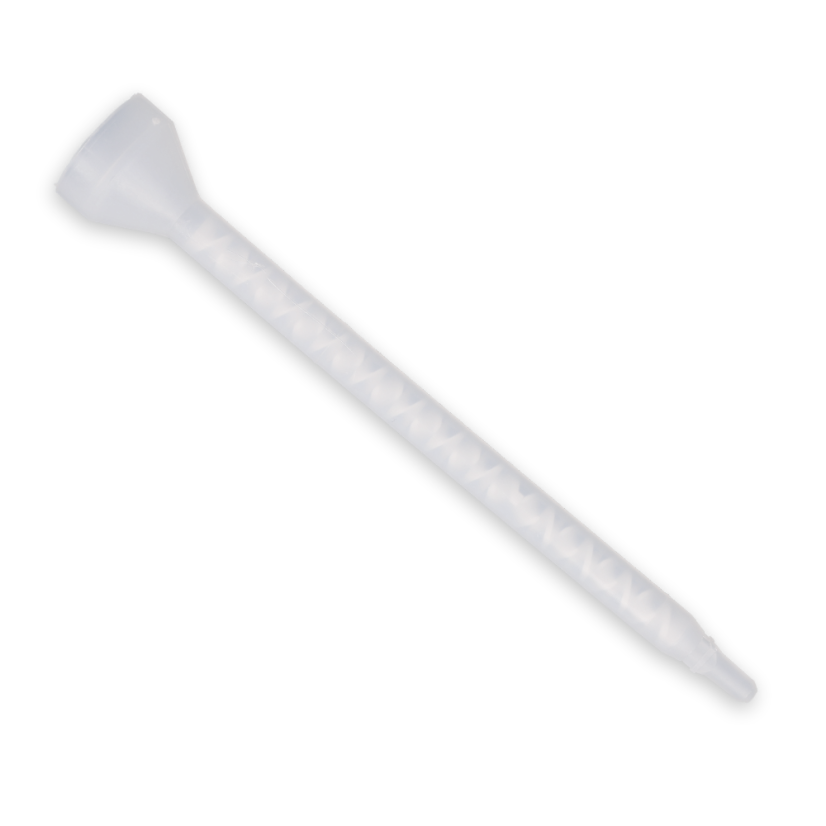

Static mixer NORDSON EFD 160-424SH

Product code: 7700819

The H-Tapered outlet is offered where precise placement of the adhesive is required. In order to connect Luer Needles or extensions, it is moulded with a new interlocking connection. This requires the attachment of a Luer Lok Adapter which must be ordered separately.

Parameters11
Inquiry form

Type	Bell
Mixing Elements	24
Housing Outlet	H Tapered

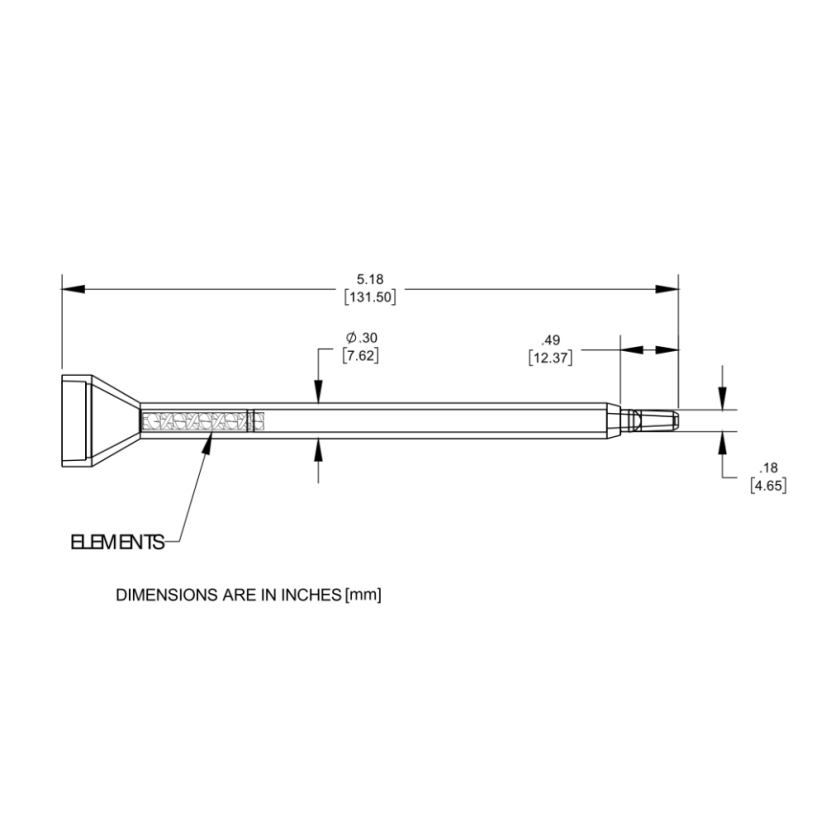

Element Diameter (mm/inch)	4.80 / 0.189“
Outside Diameter (mm/inch)	7.62 / 0.300“
Housing Length (cm/inch)	13.16 / 5.18“
Elements Material	Acetal
Mixer Material	Polypropylen
Pressure Limit (Psi@75°F / Bar@30°C)	500 / 34
Bell Inlet Housing (mm/inch)	16.69 / 0.657“
Outlet Tip Orifice (mm/inch)	1.78 / 0.07“
