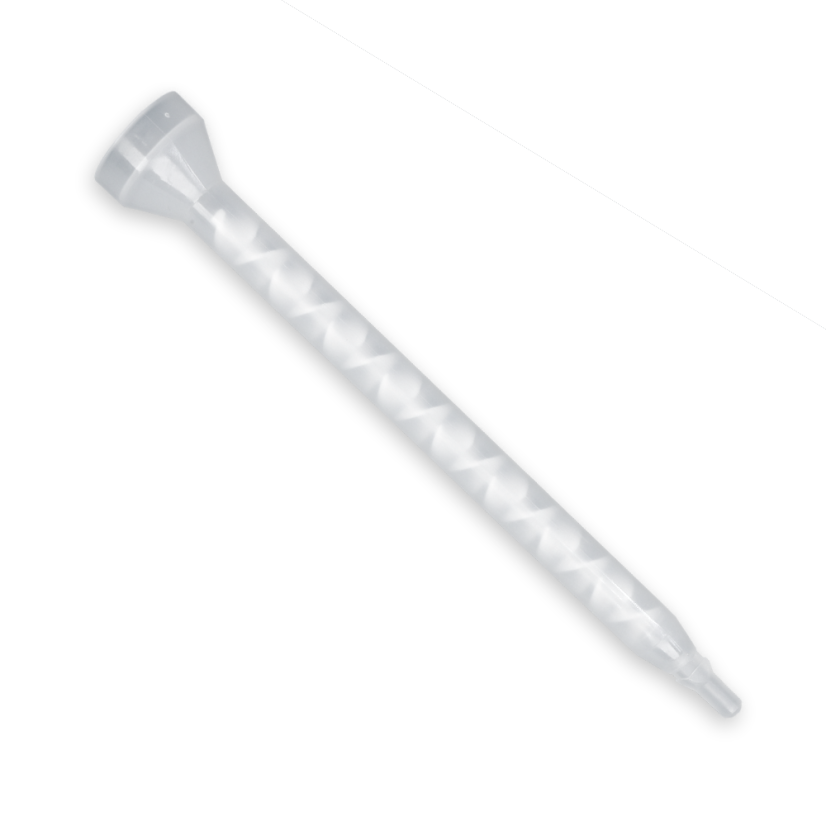

Static Mixer Flumasys 160-616SH

Product code: 87700836

The H-Tapered outlet is offered where precise placement of the adhesive is required. In order to connect Luer Needles or extensions, it is moulded with a new interlocking connection. This requires the attachment of a Luer Lok Adapter which must be ordered separately.

Parameters8
Inquiry form

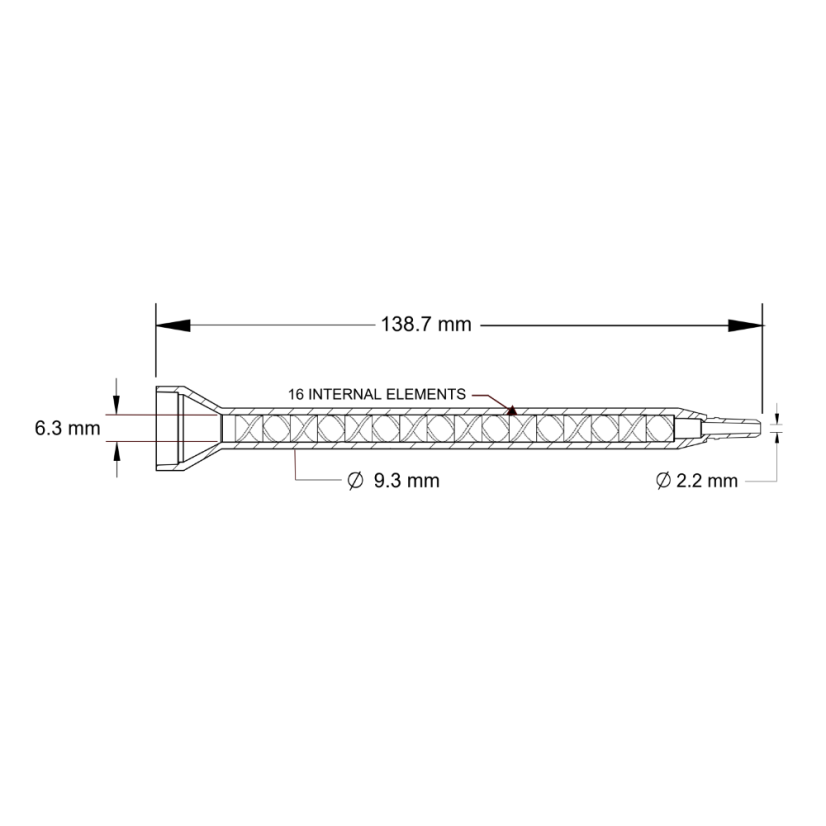

Type	Bell
Mixing Elements	16
Housing Outlet	H Tapered
Element Diameter (mm/inch)	6.30 / 0.248“
Outside Diameter (mm/inch)	9.30 / 0.366“
Housing Length (cm/inch)	13.87 / 5.46““
Bell Inlet Housing (mm/inch)	16.69 / 0.657“
Outlet Tip Orifice (mm/inch)	2.20 / 0.08“
