Static Mixer Flumasys 160-424SH

Product code: 87700819
The H-Tapered outlet is offered where precise placement of the adhesive is required. In order to connect Luer Needles or extensions, it is moulded with a new interlocking connection. This requires the attachment of a Luer Lok Adapter which must be ordered separately.

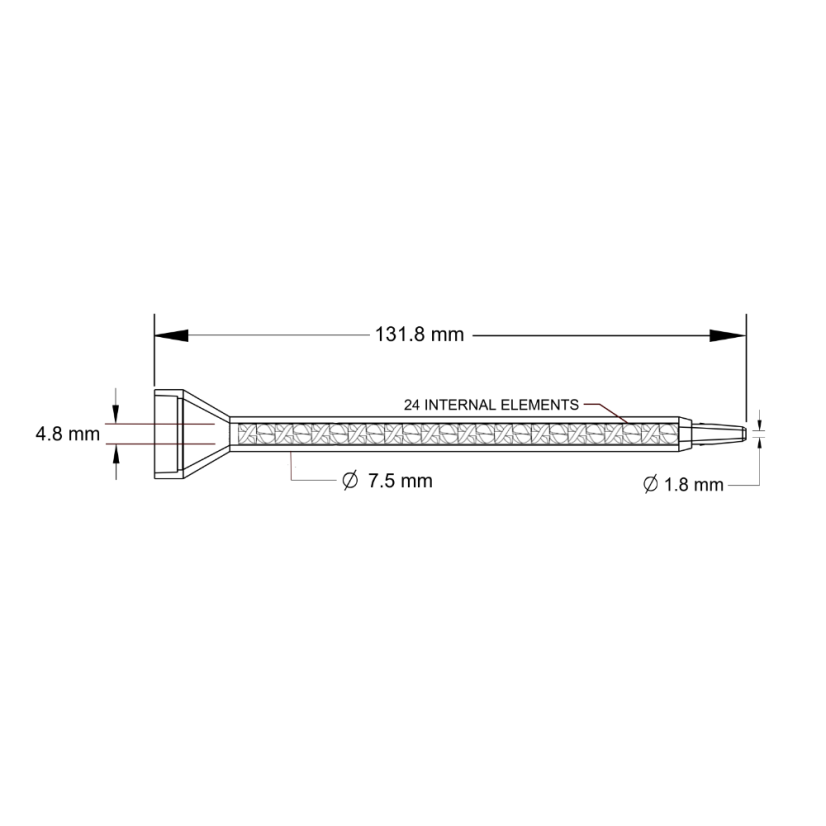

Parameters

Type Bell
Mixing Elements 24
Housing Outlet H Tapered
Element Diameter (mm/inch) 4.80 / 0.189“
Outside Diameter (mm/inch) 7.50 / 0.295“
Housing Length (cm/inch) 13.18 / 5.18“
Bell Inlet Housing (mm/inch) 16.69 / 0.657“
Outlet Tip Orifice (mm/inch) 1.80 / 0.07“
