български език (EUR)GP TIP GAUGE 25 RED 0,25″ 1000
Product code: 7018334

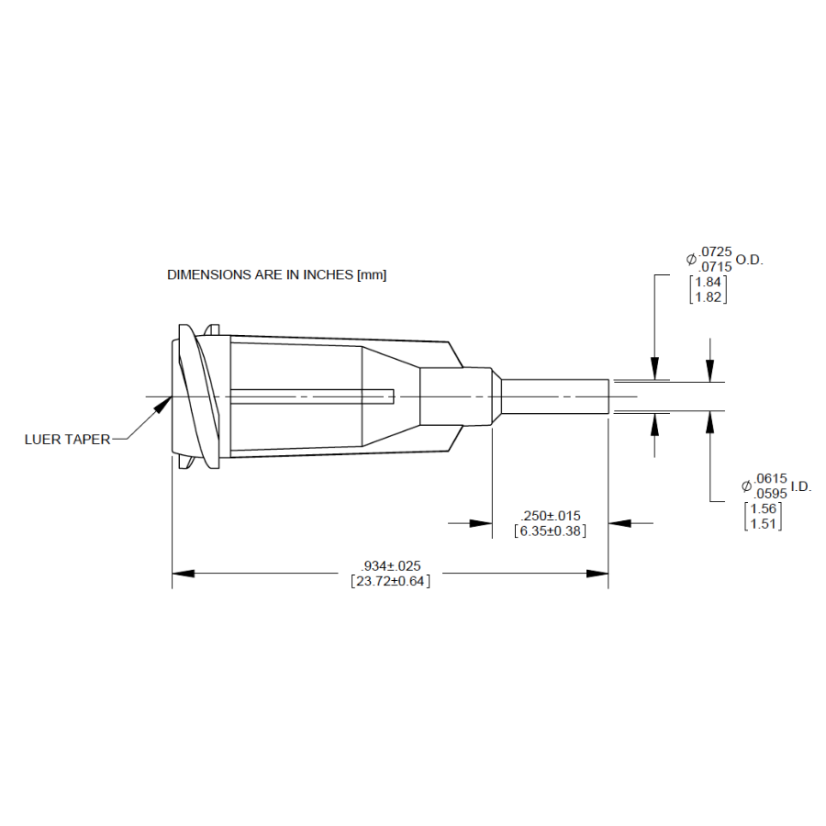

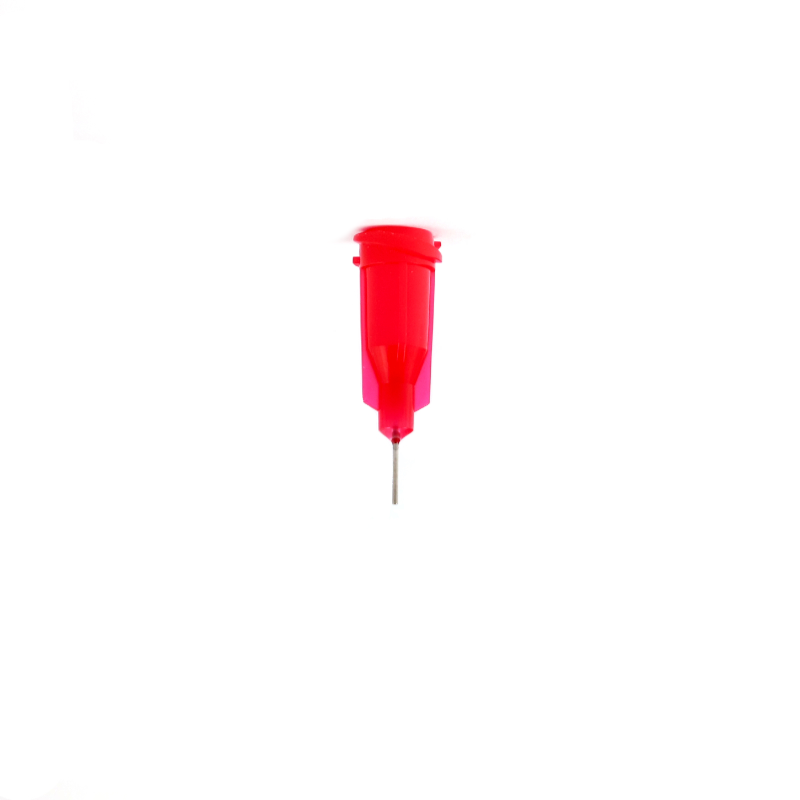

GP Tip Gauge 25 Red 0.25″ 1000 from Nordson with a gauge of 25, a red colour, a length of 6.35 mm (0.25″), an inner diameter of 0.25 mm (0.010″) and an outer diameter of 0.52 mm (0.020″). It is supplied in packs of 1000 pieces. More
Parameters
| Tip Angle | Straight |
|---|---|
| Gauge | 25 |
| Color | Red |
| ID milimeter (inch) | 0.25 mm (0.010″) |
| OD milimetr (inch) | 0.52 mm (0.020″) |
| Length millimeter (inch) | 6.35 mm (0.25″) |
| Material tubing | Stainless steel 304 |
| Material HUB | Polypropylene |
| Thread | Luer Lock |
| Packaging (pcs in box) | 1000 |
General purpose stainless steel dispensing tip 0.25" with luer lock. OD 0.52 mm, ID 0.25 mm. Packaging 1000 pieces. Burr-free, polished, passivated stainless steel dispense tips.
This product features a straight tip, a gauge of 25, a red colour, an inner diameter of 0.25 mm (0.010″) and an outer diameter of 0.52 mm (0.020″). It also offers a length of 6.35 mm (0.25″), tubing made of stainless steel 304, a polypropylene hub and a Luer Lock connection. It is supplied in packs of 1000 pieces.
Documents and 3D models
Nordson-EFD-Optimum Poster ENG.pdf
(pdf, 974.3 kB)
3D model
(zip, 60.4 kB)
