български език (EUR)GP TIP GAUGE 23 ORANGE 0,5″ 45° 1000
Product code: 7018311

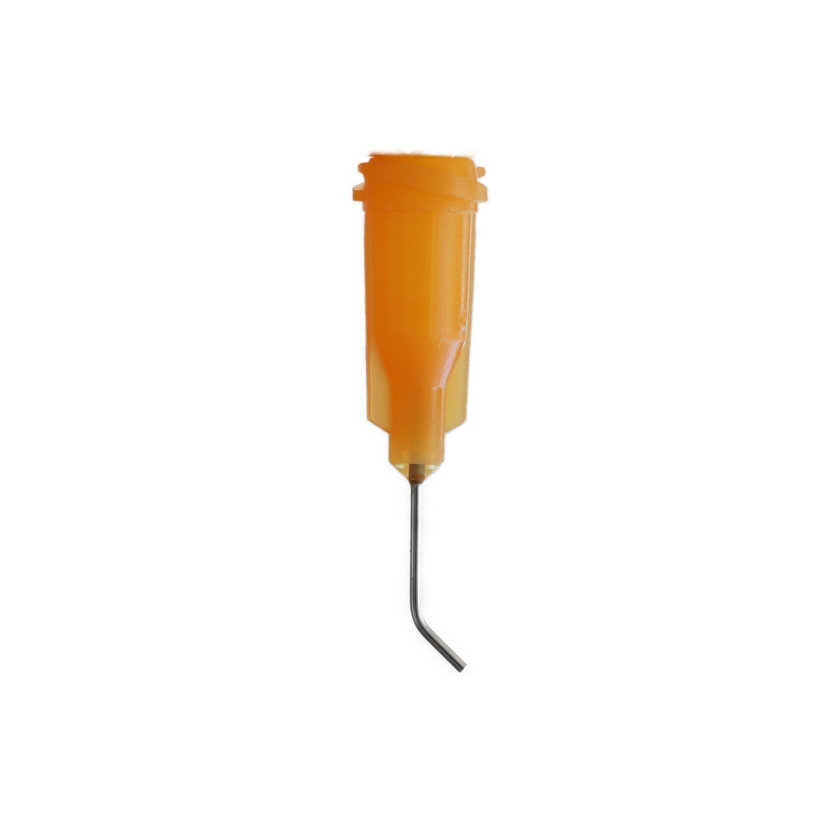

GP Tip Gauge 23 Orange 0.5″ 45° 1000 from Nordson with a gauge of 23, an orange colour, a length of 12.7 mm (0.50″), an inner diameter of 0.33 mm (0.013″) and an outer diameter of 0.65 mm (0.025″). It is supplied in packs of 1000 pieces. More
Parameters
| Tip Angle | 45° |
|---|---|
| Gauge | 23 |
| Color | Orange |
| ID milimeter (inch) | 0.33 mm (0.013″) |
| OD milimetr (inch) | 0.65 mm (0.025″) |
| Length millimeter (inch) | 12.7 mm (0.50″) |
| Material tubing | Stainless steel 304 |
| Material HUB | Polypropylene |
| Thread | Luer Lock |
| Packaging (pcs in box) | 1000 |
General purpose stainless steel dispensing tip 45° with luer lock. OD 0.65 mm, ID 0.33 mm. Packaging 1000 pieces. Burr-free, polished, passivated stainless steel dispense tips.
This product features a 45° tip, a gauge of 23, an orange colour, an inner diameter of 0.33 mm (0.013″) and an outer diameter of 0.65 mm (0.025″). It also offers a length of 12.7 mm (0.50″), tubing made of stainless steel 304, a polypropylene hub and a Luer Lock connection. It is supplied in packs of 1000 pieces.
Documents and 3D models
Nordson-EFD-Optimum Poster ENG.pdf
(pdf, 974.3 kB)
3D model
(zip, 79.5 kB)
