Product code: 7018036

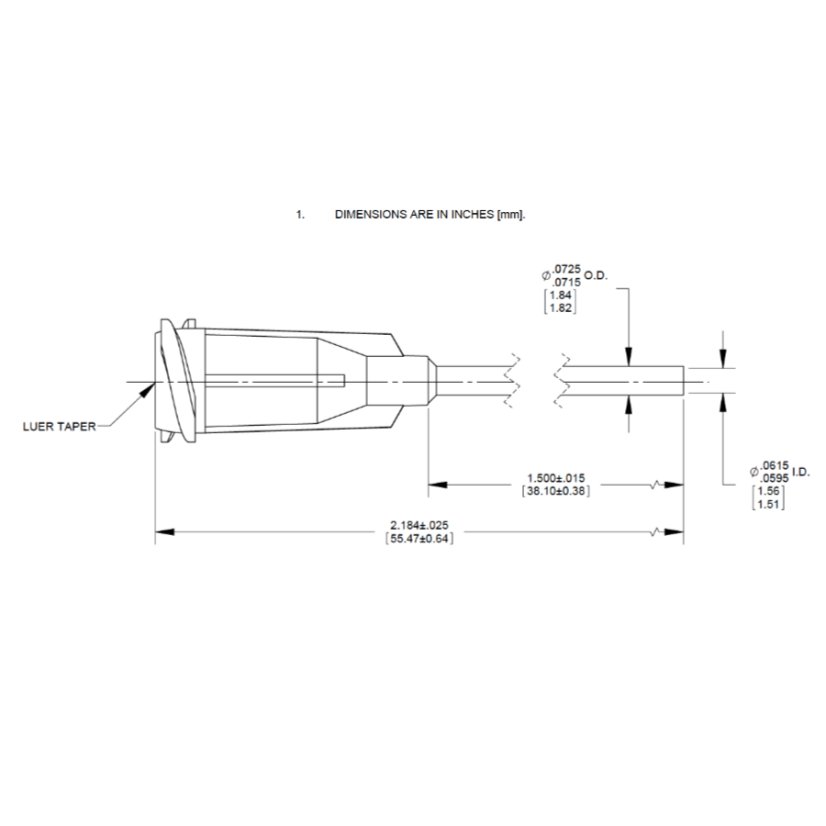

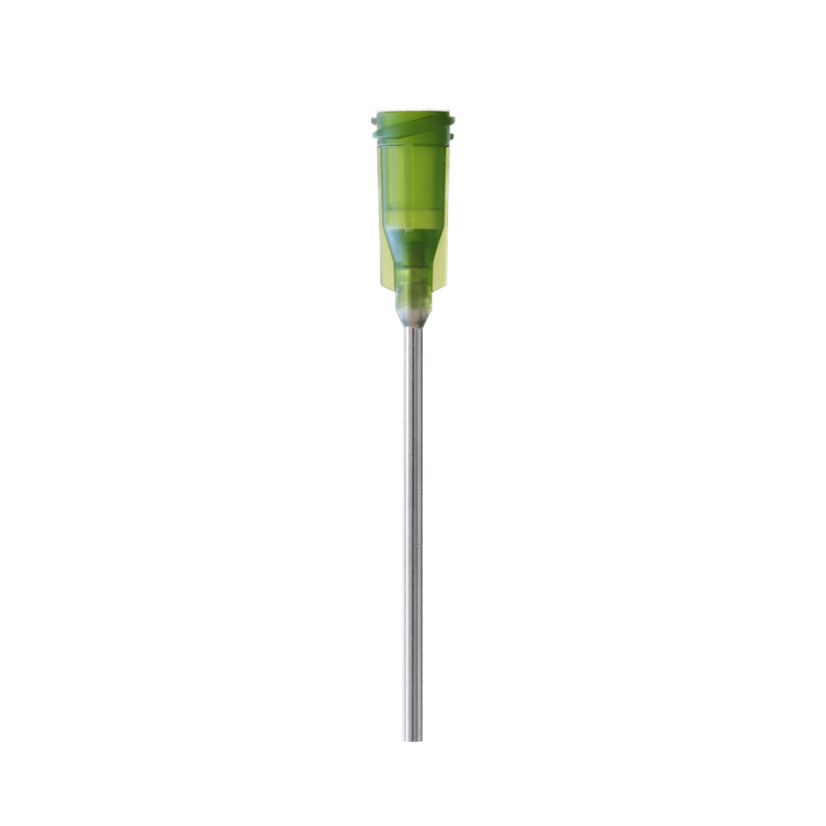

GP Tip Gauge 14 Olive 1.5″ 1000 from Nordson with a gauge of 14, an olive colour, a length of 38.1 mm (1.5″), an inner diameter of 1.54 mm (0.060″) and an outer diameter of 1.83 mm (0.072″). It is supplied in packs of 1000 pieces. More
Parameters
| Tip Angle | Straight |
|---|---|
| Gauge | 14 |
| Color | Olive |
| ID milimeter (inch) | 1.54 mm (0.060″) |
| OD milimetr (inch) | 1.83 mm (0.072″) |
| Length millimeter (inch) | 38.1 mm (1.5″) |
| Material tubing | Stainless steel 304 |
| Material HUB | Polypropylene |
| Thread | Luer Lock |
| Packaging (pcs in box) | 1000 |
General purpose stainless steel dispensing tip 1.5" with luer lock. OD 1.83 mm, ID 1.54 mm. Packaging 1000 pieces. Burr-free, polished, passivated stainless steel dispense tips.
This product features a straight tip, a gauge of 14, an olive colour, an inner diameter of 1.54 mm (0.060″) and an outer diameter of 1.83 mm (0.072″). It also offers a length of 38.1 mm (1.5″), tubing made of stainless steel 304, a polypropylene hub and a Luer Lock connection. It is supplied in packs of 1000 pieces.
Documents and 3D models
Nordson-EFD-Optimum Poster ENG.pdf
(pdf, 974.3 kB)
3D model
(zip, 59.8 kB)
