DESKTOP DISPENSING ROBOT NORDSON PROPlus4

More photos (7)

Add to favourites Add to compare list

Product code: 7363653

The PROPlus4 is a top-of-the-line desktop robot designed for maximum precision and repeatability in demanding dispensing applications. It features the advanced SmartVision™ camera system and linear motors, enabling exceptional speed and accuracy. With intuitive software and automatic surface height detection, it is ideal for complex assemblies in the electronics and automotive industries.

Parameters

Type	PROPlus/PROX
Number of Axes	3 axis

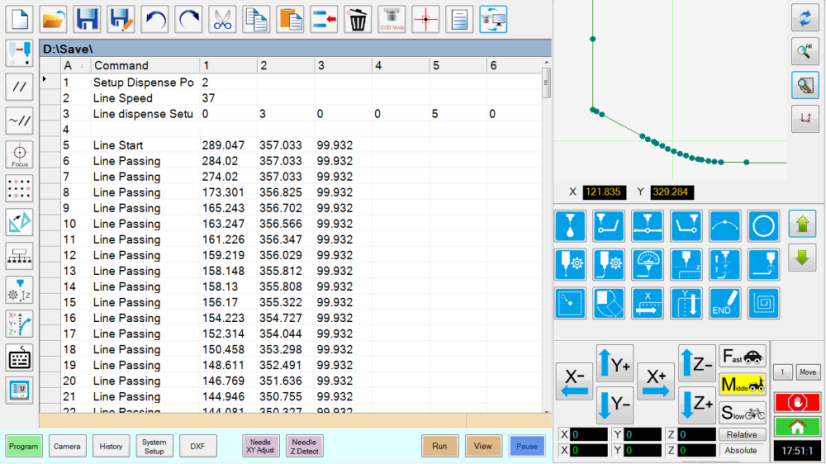

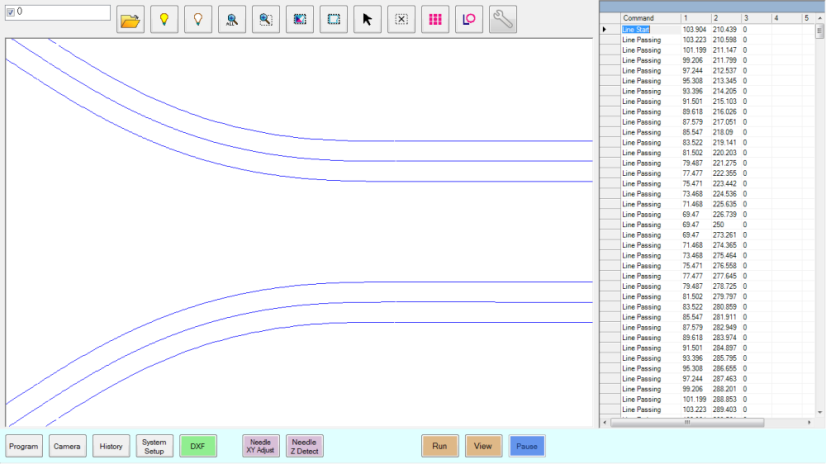

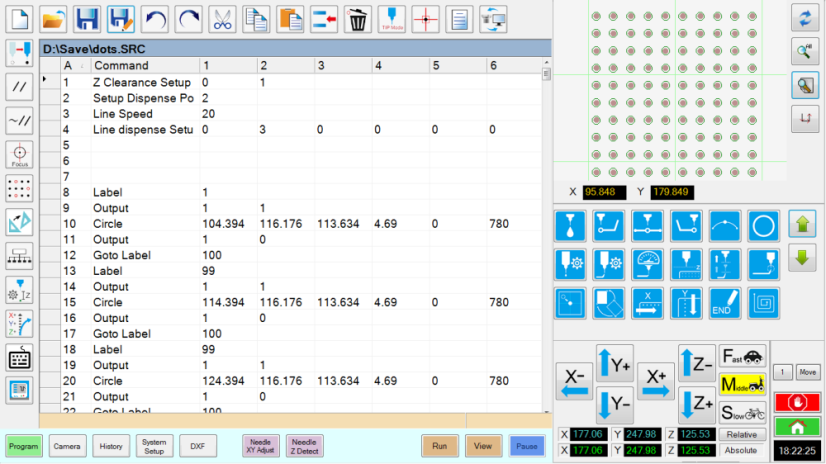

Programming	PC + camera
Maximum working area (X/Y/Z)	350/350/100 mm
Workpiece Payload	25 kg
Tool Payload	6 kg

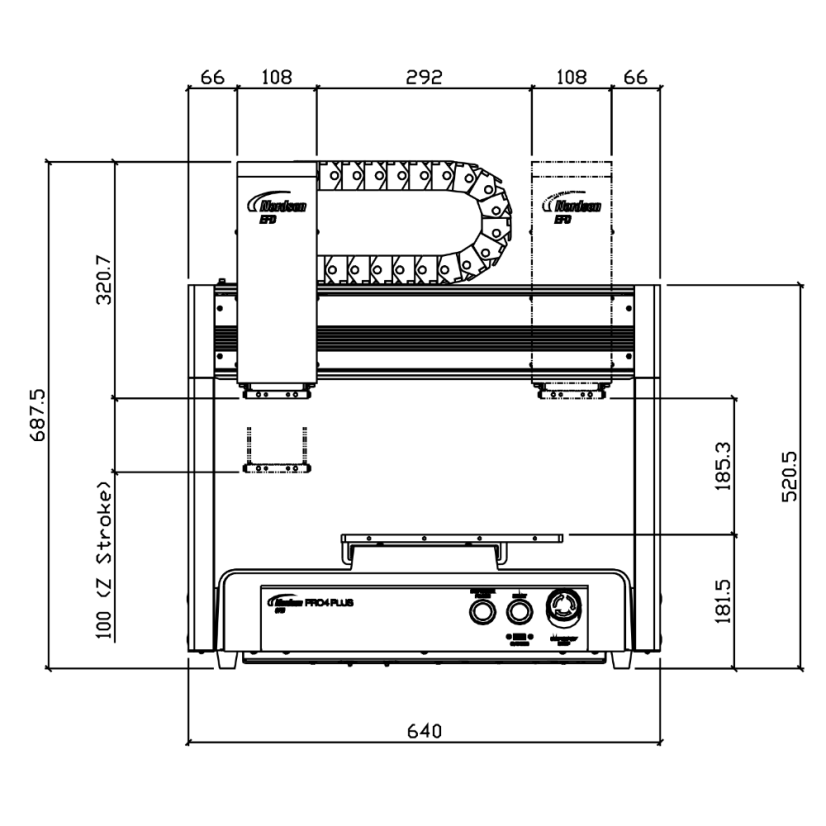

Dimensions	820w x 690h x 690d mm
Maximum speed	800/250 mm/s
Drive system	Servomotor
Memory capacity	PC storage
Tip detection	Included
External inputs/outputs	8 inputs / 8 outputs
Laser height detection	Optional

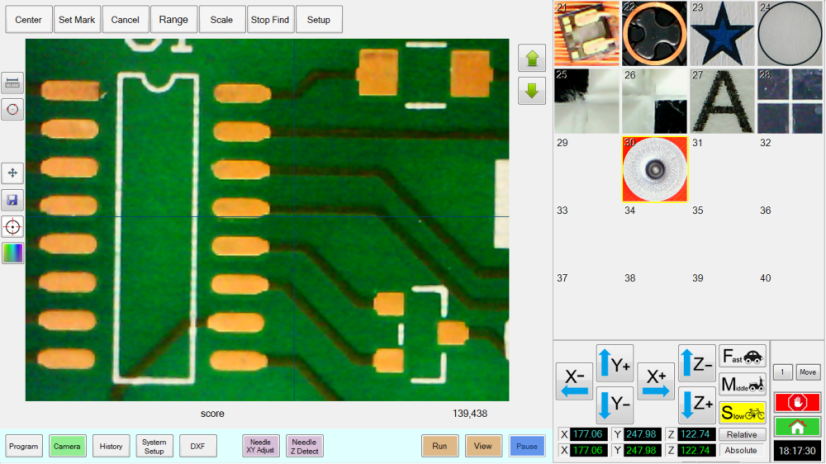

Vision	CCD smart camera
Repeatability	±0.003 mm / axis
Weight (kg)	63.5 kg
