български език (EUR)DESKTOP DISPENSING ROBOT NORDSON E3
Product code: 7361346

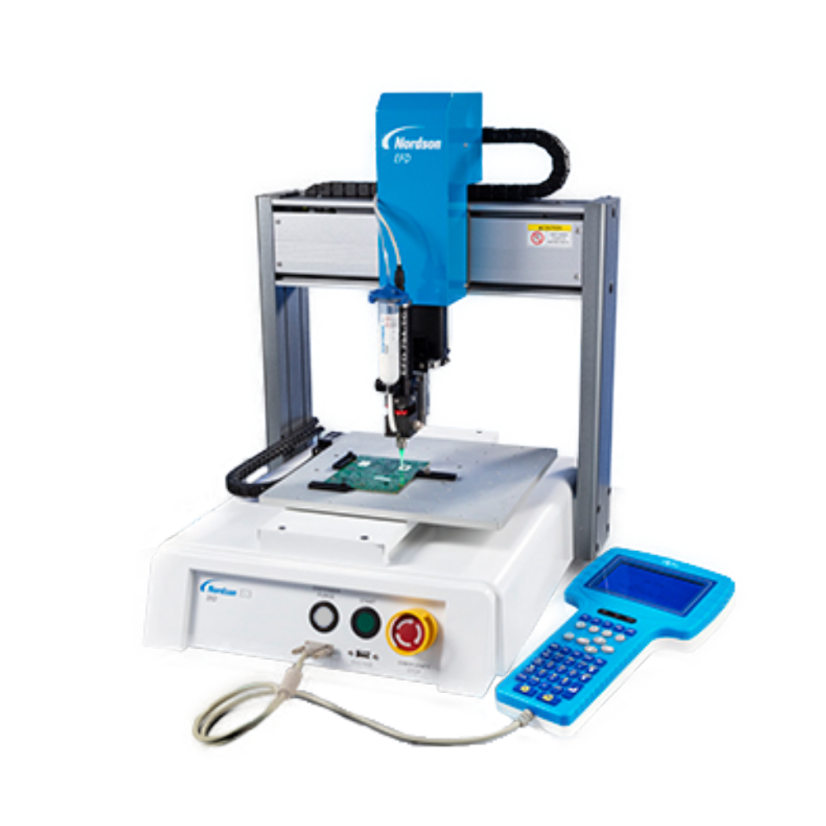

The E3 model is a compact and cost-effective 3-axis automated system designed for an easy transition from manual to automated dispensing. This desktop robot offers simple programming via a handheld teach pendant, robust construction, and high positioning accuracy. It is the ideal solution for applications requiring consistent application of dots, lines, and fills with minimal maintenance and space requirements.
Parameters
| Type | E |
|---|---|
| Number of Axes | 3 axis |
| Programming | Teach Pendant |
| Maximum working area (X/Y/Z) | 300/300/100 mm |
| Workpiece Payload | 10 kg |
| Tool Payload | 5 kg |

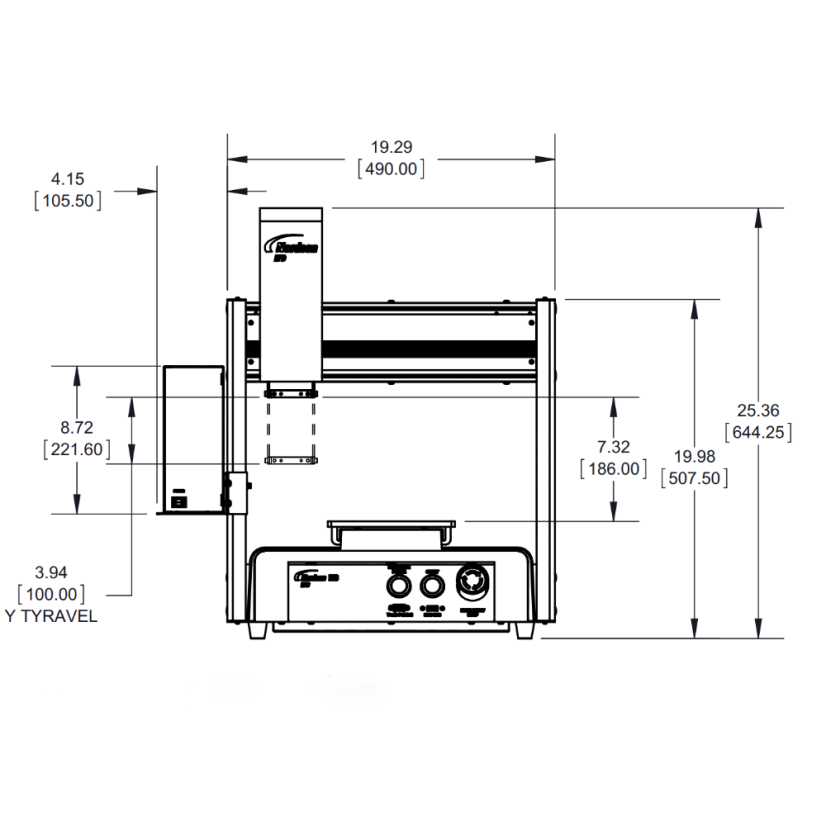

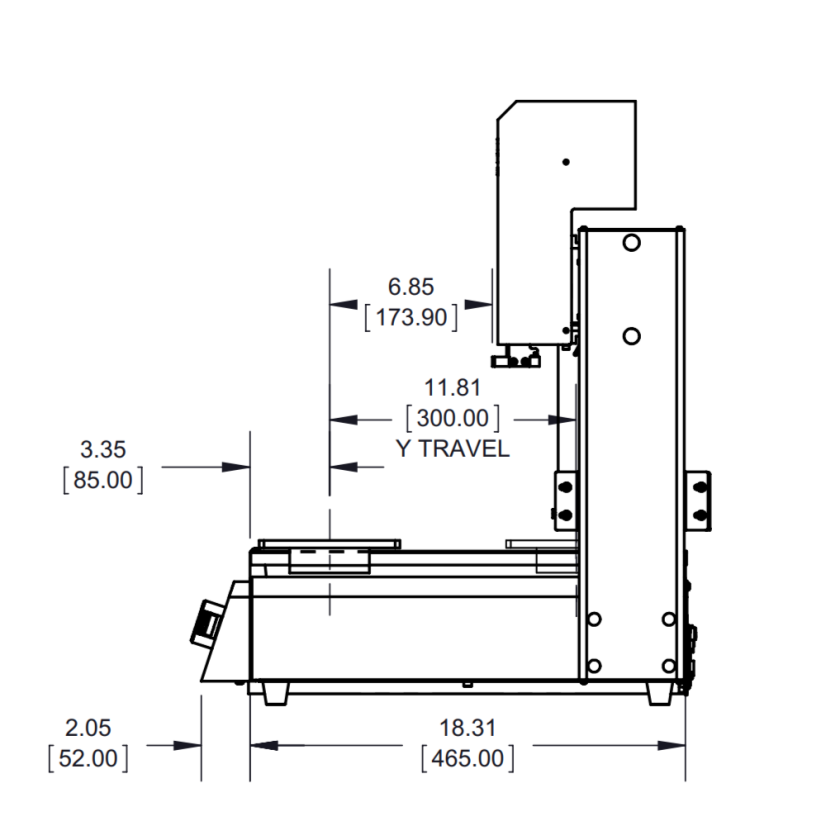

| Dimensions | 490w x 644h x 519d mm |
| Maximum speed | 800/320 mm/s |
| Drive system | 3-phase micro stepping motor |
| Memory capacity | 1-99 programs, 1-9.999 points per program |
| External inputs/outputs | 8 inputs / 8 outputs |
| Repeatability | ±0.008 mm / axis |
| Weight (kg) | 39.5 kg |
Documents and 3D models
Data sheet accessories
(pdf, 492.2 kB)
Maintenance guide
(pdf, 2.7 MB)
Data sheet
(pdf, 669.6 kB)
Operating manual
(pdf, 4.3 MB)
Quick programming guide
(pdf, 2 MB)
Quick start guide
(pdf, 811.2 kB)
3D model
(zip, 9.5 MB)
