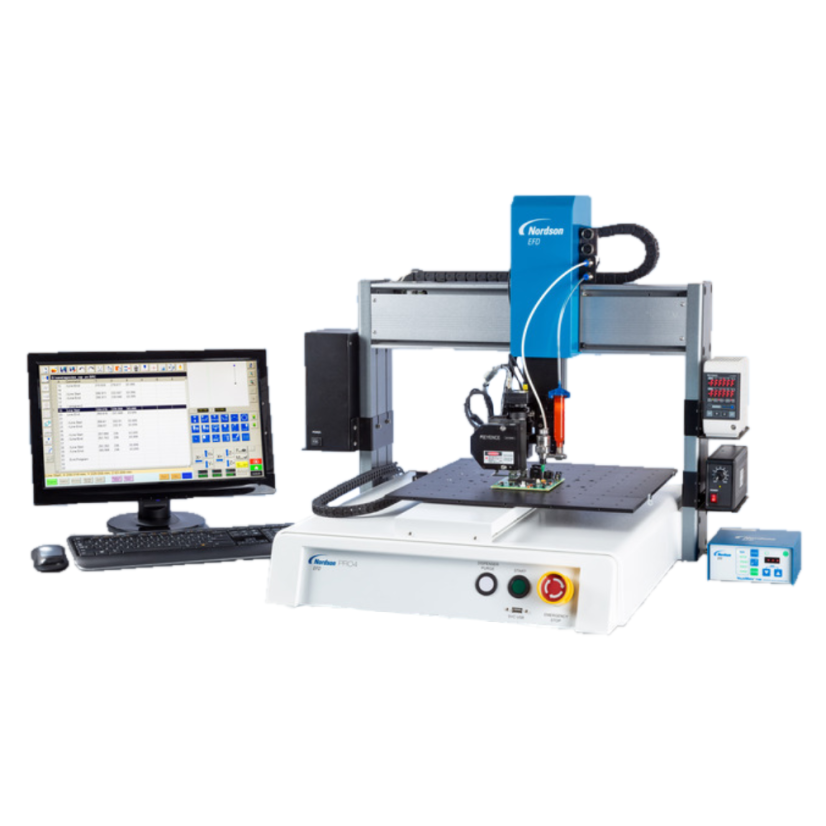

български език (EUR)DESKTOP DISPENSING ROBOT NORDSON PROPlus3
Product code: 7363650

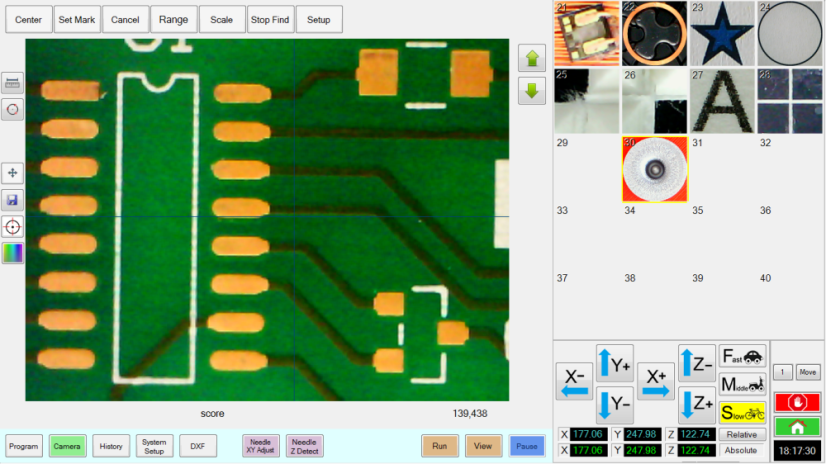

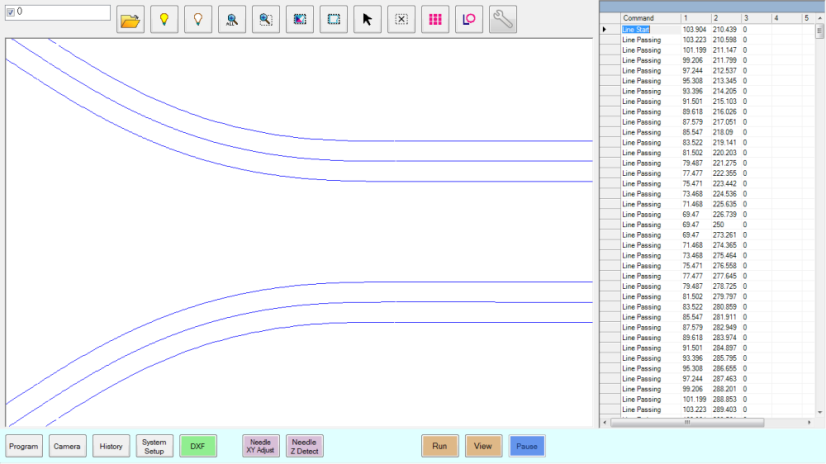

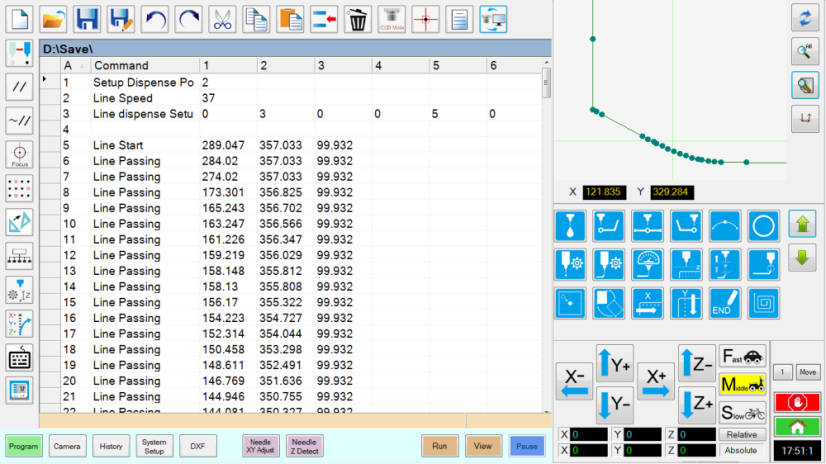

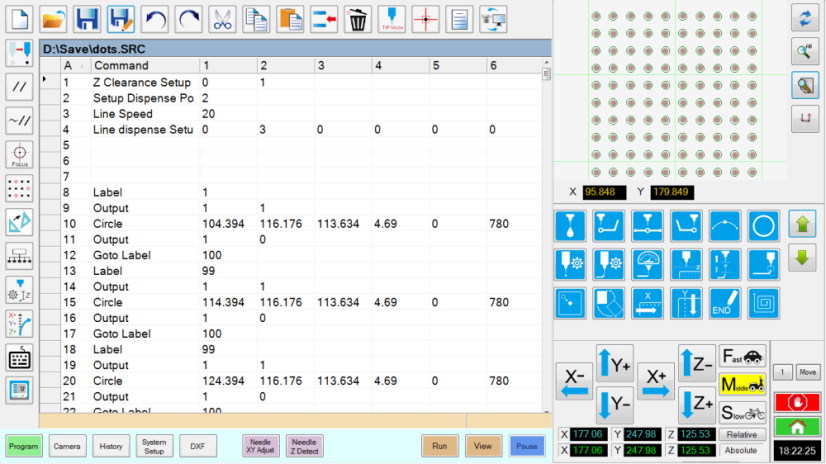

The PROPlus3 represents the pinnacle of desktop dispensing systems, designed for applications requiring high precision and repeatability. This system utilizes linear motors to achieve exceptional speed and movement accuracy in the X, Y, and Z axes. With the integrated SmartVision™ camera system and intuitive software, it allows for easy programming of even the most complex dispensing paths.
Parameters
| Type | PROPlus/PROX |
|---|---|
| Number of Axes | 3 axis |
| Programming | PC + camera |
| Maximum working area (X/Y/Z) | 250/250/100 mm |
| Workpiece Payload | 25 kg |
| Tool Payload | 6 kg |

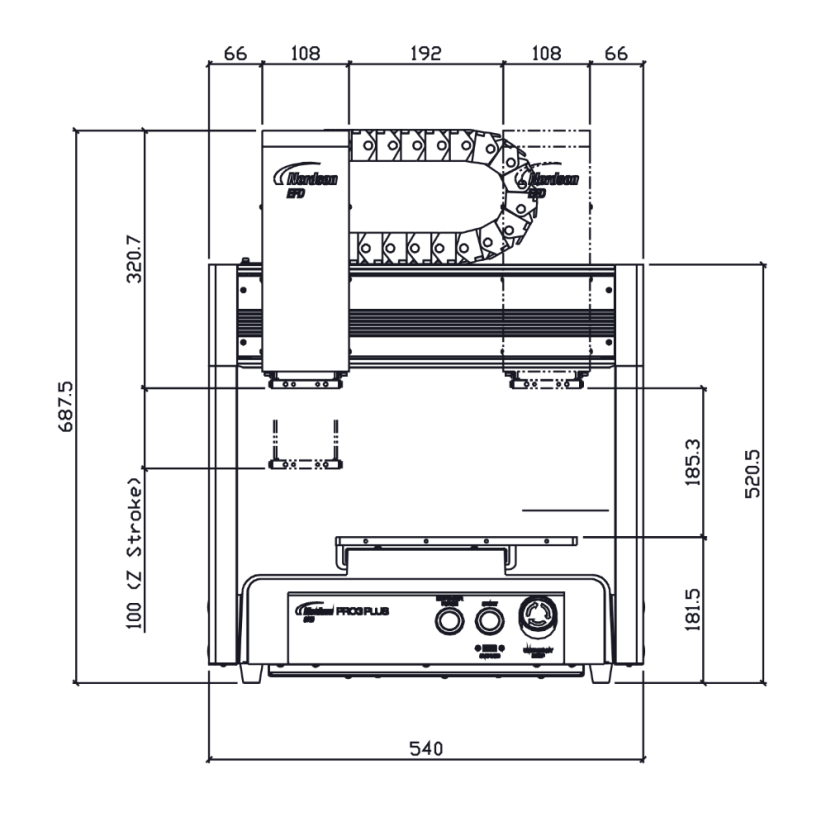

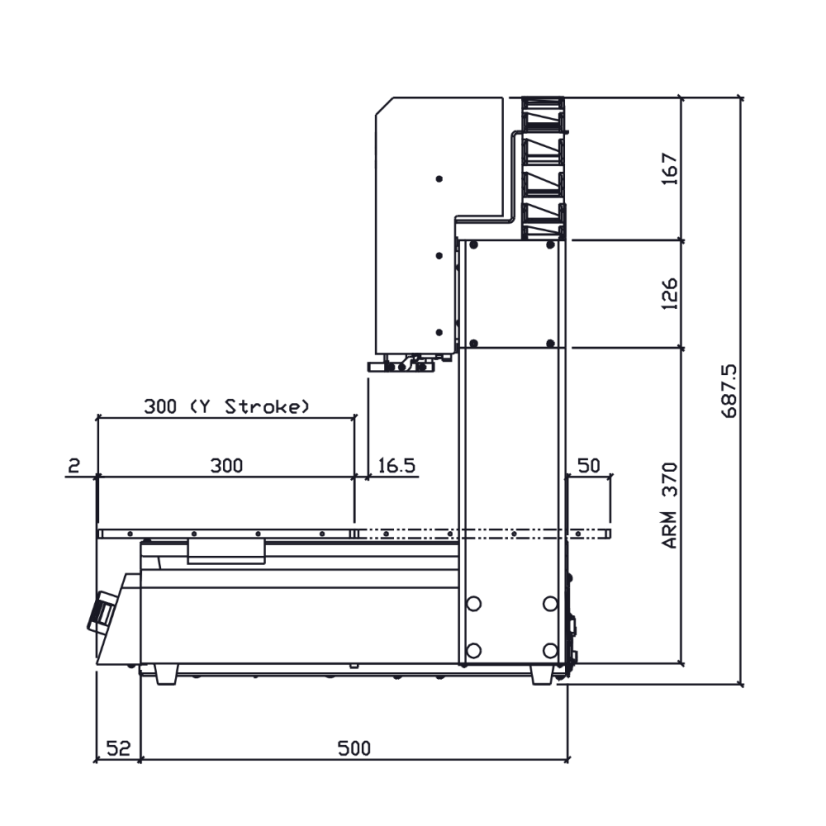

| Dimensions | 720w x 690h x 590d mm |
| Maximum speed | 800/250 mm/s |
| Drive system | Servomotor |
| Memory capacity | PC storage |
| Tip detection | Included |
| External inputs/outputs | 8 inputs / 8 outputs |
| Laser height detection | Optional |
| Vision | CCD smart camera |
| Repeatability | ±0.003 mm / axis |
| Weight (kg) | 50.5 kg |
Documents and 3D models
Data sheet accessories
(pdf, 492.2 kB)
Maintenance guide
(pdf, 2.7 MB)
Data sheet
(pdf, 713.3 kB)
Operating manual
(pdf, 7.7 MB)
Quick start guide
(pdf, 1.6 MB)
