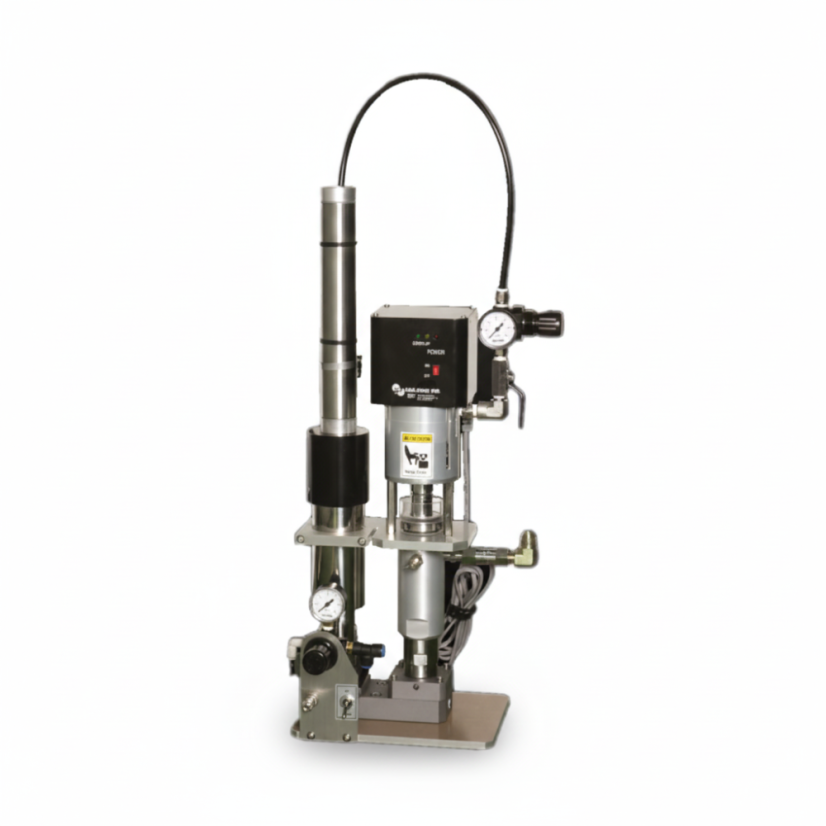

Cartridge Pump

Product code: SJP315CT

The Cartridge pump is a powerful system for controlled transfer of thick fluids from 1/10th gallon (310 ml) plastic cartridges. It is designed to easily transfer material for controlled dispensing via a high pressure valve. The suitable viscosity range is 5,000 cps – 600,000 cps and maximum material pressure is 996 psi.

FEATURES:

-Material delivered air-free
-Wipe-clean action
-High-pressure regulation
-Adjustable piston pressure
-Electrical extruder motor
-Simple load mechanism provides easy cleaning
-Teflon wetted parts
-Avoids waste
-Metal Jacket retainer
More

Power input	AC 220 V/110 V 50-60 Hz
Electrical Consumption	20 W

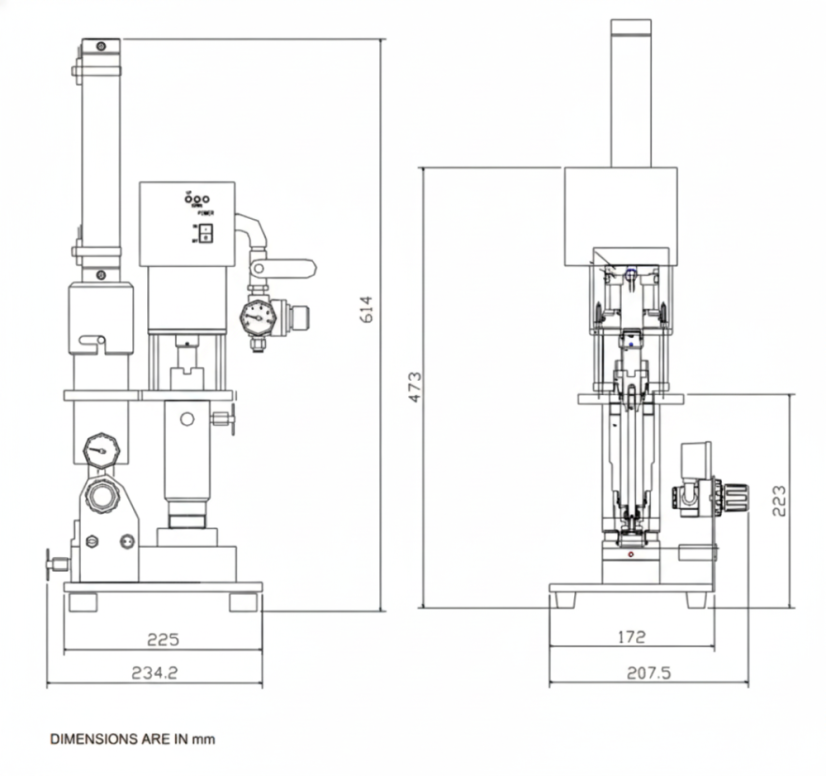

Dimension	255 (W) x 170 (L) x 649 (H)
Weight	15 kg
Air Input Pressure	2 kgf/cm2 - 7 kgf/cm2
Air Consumption	80 l /min
Ratio	5:1 (type B) / 15:1 (type D)
Maximum Output Pressure	17 kgf/cm2 / 70 kgf/cm2
Fluid Viscosity Range	10,000 - 600,000 cps
Cartridge Size	1/10 th gallon (300 ml, 340 ml)

flumasys_sjp315ct_cartridge_pump_brochure.pdf (pdf, 265.3 kB)
