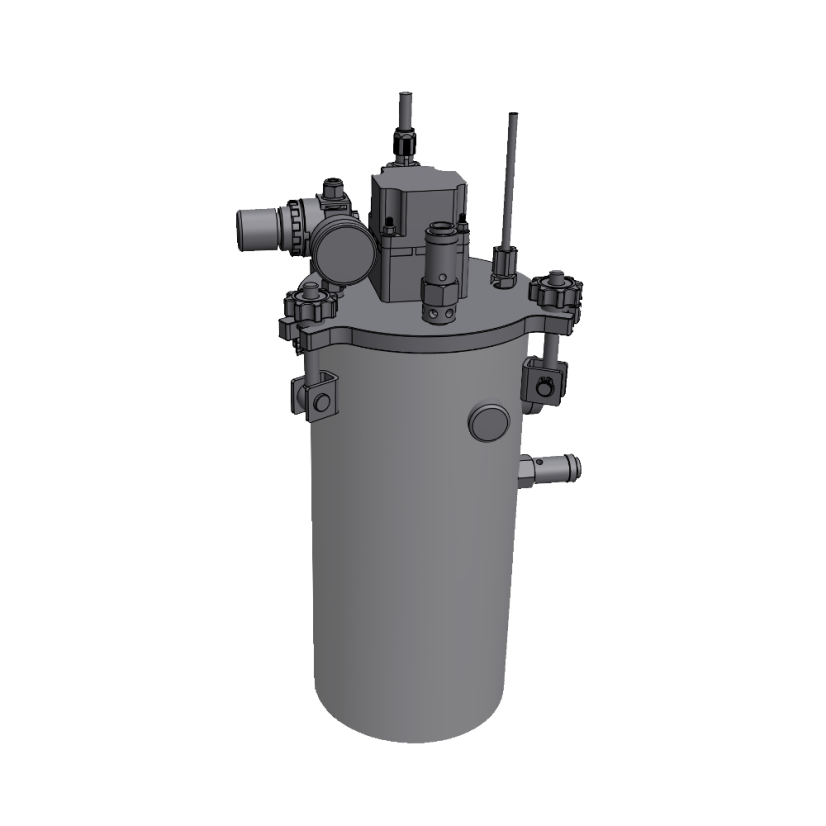

5L STEL Series Pressure Vessel

Product code: 5000ML-STEL

The STEL series compact agitated pressure reservoirs are specifically designed to suit fluids requiring gentle stir or fast agitation. Made to work in both busy factories and research labs, the reservoirs can provide intermittent or constant agitation. All compact agitated pressure reservoirs are exclusively made of stainless steel grade 304. This ensures that the material contents are not contaminated by corrosion. If required, different surface finish can be supplied. ST Tanks Series can operate to 100 °C. More

Type	STEL
Volume	5 litres
Material	Stainless steel 304
Agitation	Electrical
Pressure range	0-6.9 bar (100 psi)

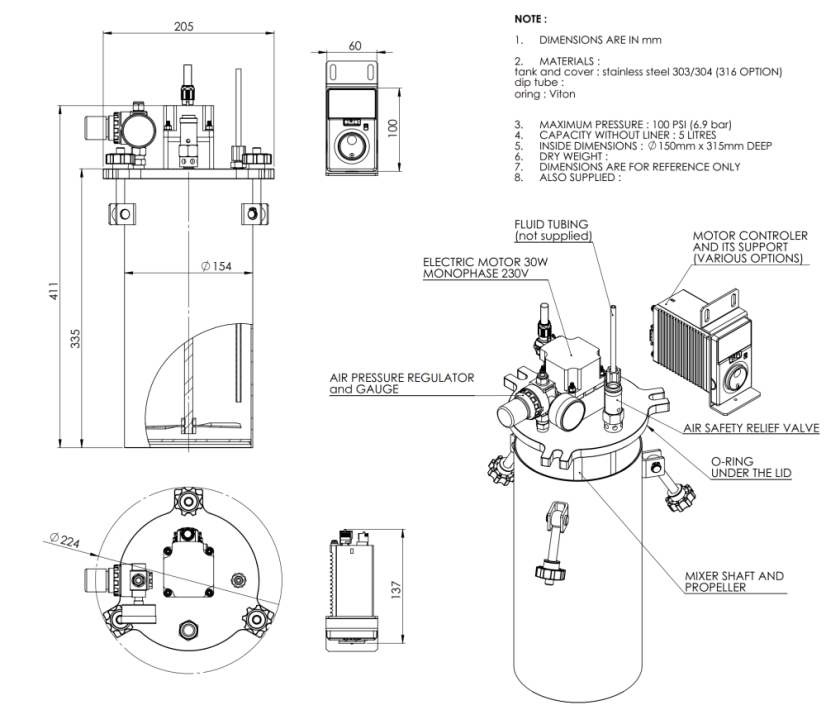

Technical Specifications

Body & Lid Material	Stainless Steel
Sealing	Viton O-ring
Lid Release	Star Nuts
Regulator & Safety Valve	100 psi (7 bar)
Inlet Quick Coupler	6 mm or 8 mm
Agitator System	SS Shaft, 2-blade propeller
Speed Range	80–4000 RPM

Mixing Blades

Simple	Cross	Triple Pitch	Dual Level
Standard for general use.	For higher viscosity.	Rounded for vortex effect.	Two levels of blades.
