български език (EUR)DESKTOP DISPENSING ROBOT NORDSON PROX5
Product code: 7366456
Desktop Dispensing Robot Nordson PROX5 with a number of axes of 3 axis, a programming of PC + camera, a maximum working area of 450/500/100 mm (X/Y/Z) and a workpiece payload of 15 kg. More
Parameters
| Number of Axes | 3 axis |
|---|---|

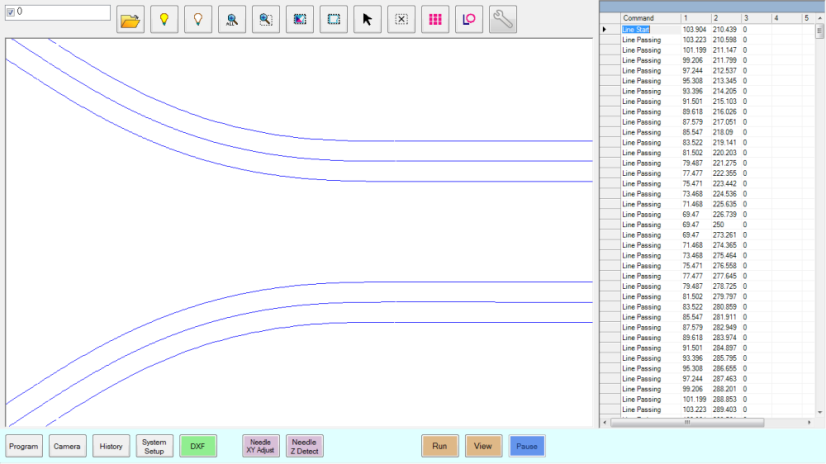

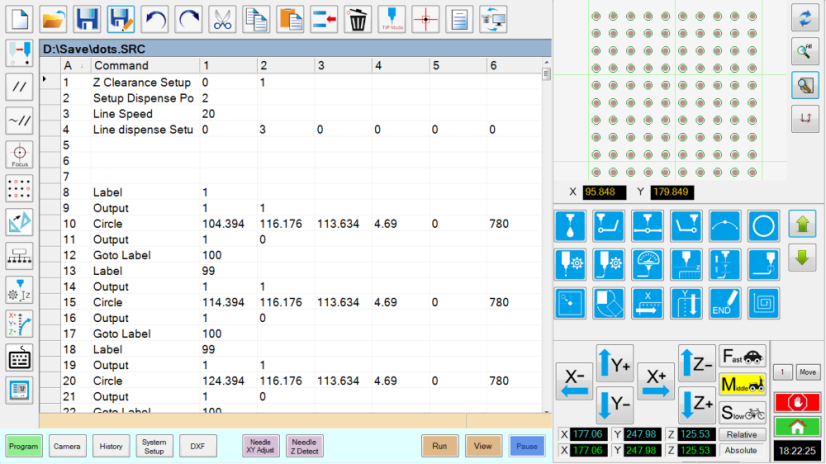

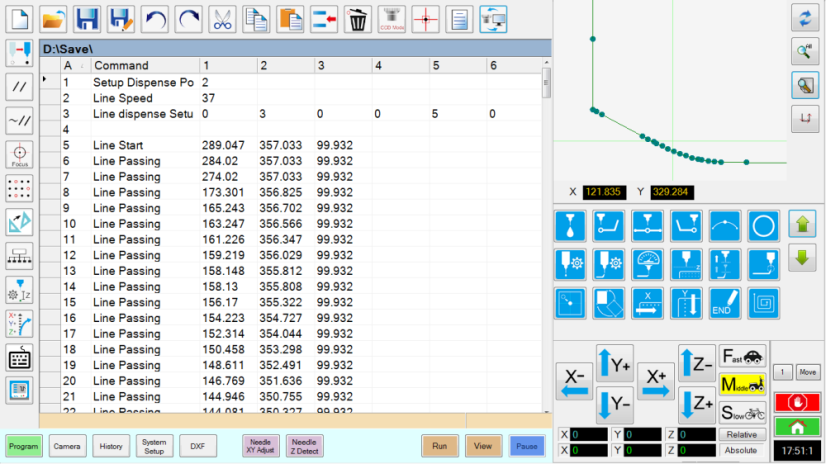

| Programming | PC + camera |
| Maximum working area (X/Y/Z) | 450/500/100 mm |
| Workpiece Payload | 15 kg |
| Tool Payload | 3.5 kg |

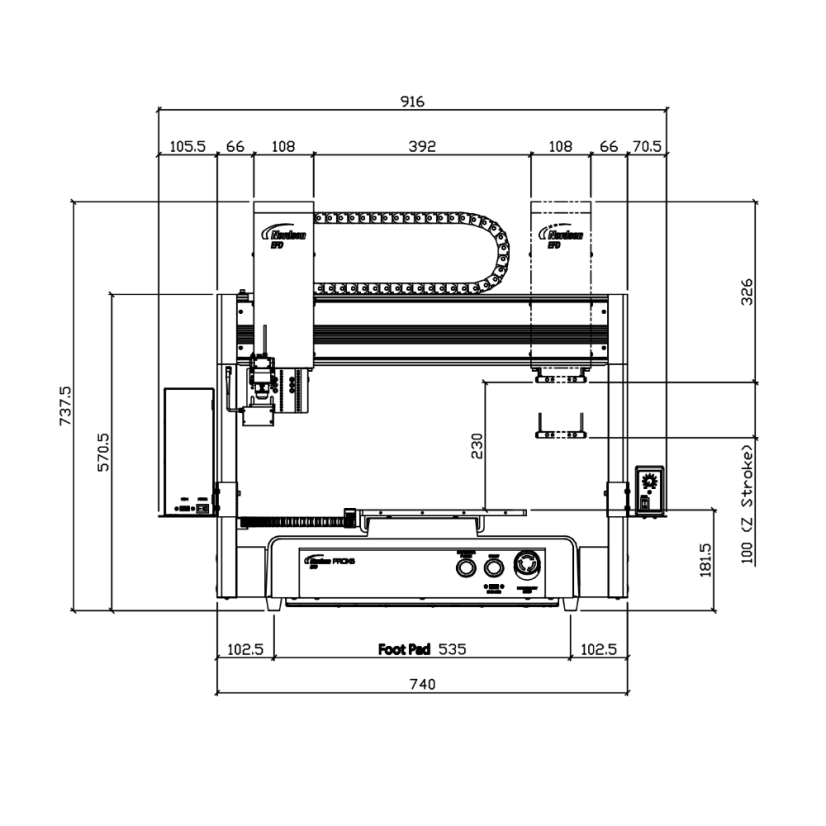

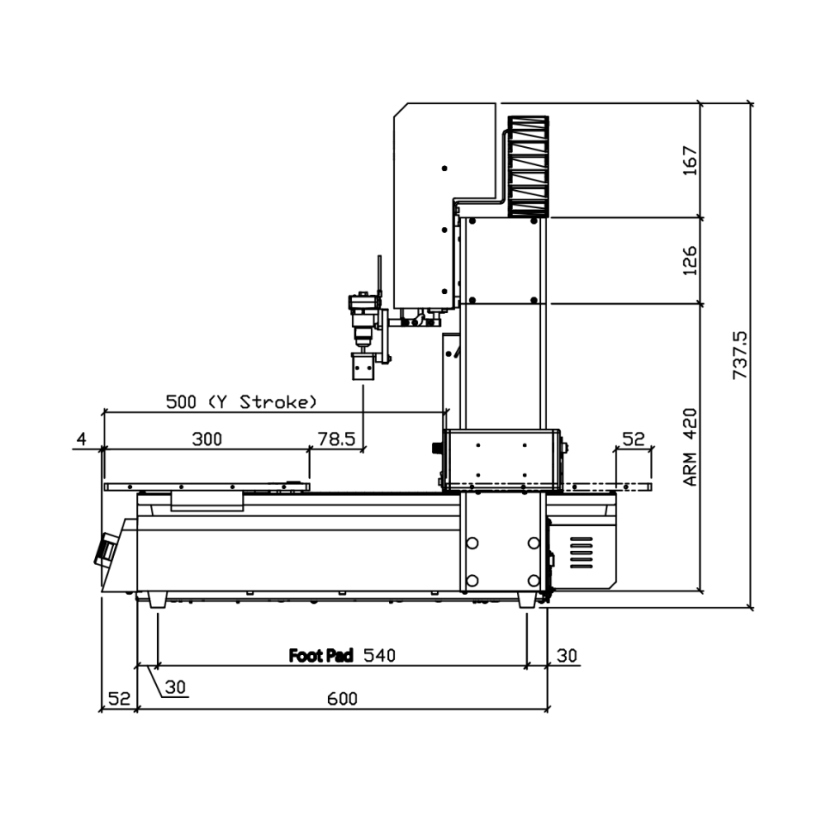

| Dimensions | 920w x 737h x 790d mm |
| Maximum speed | 800/250 mm/s |
| Drive system | 5-phase micro stepping motor |
| Memory capacity | PC storage |
| Tip detection | Included |
| External inputs/outputs | 8 inputs / 8 outputs |
| Laser height detection | Optional |

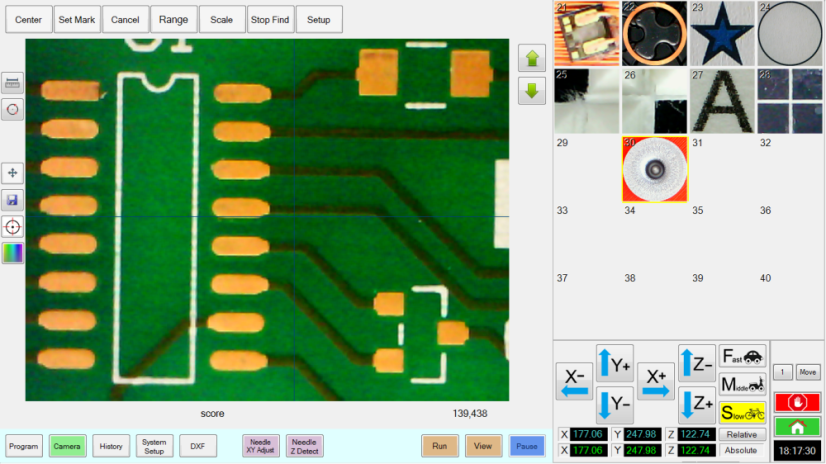

| Vision | CCD smart camera |
| Repeatability | ±0.003 mm / axis |
| Weight (kg) | 75 kg |

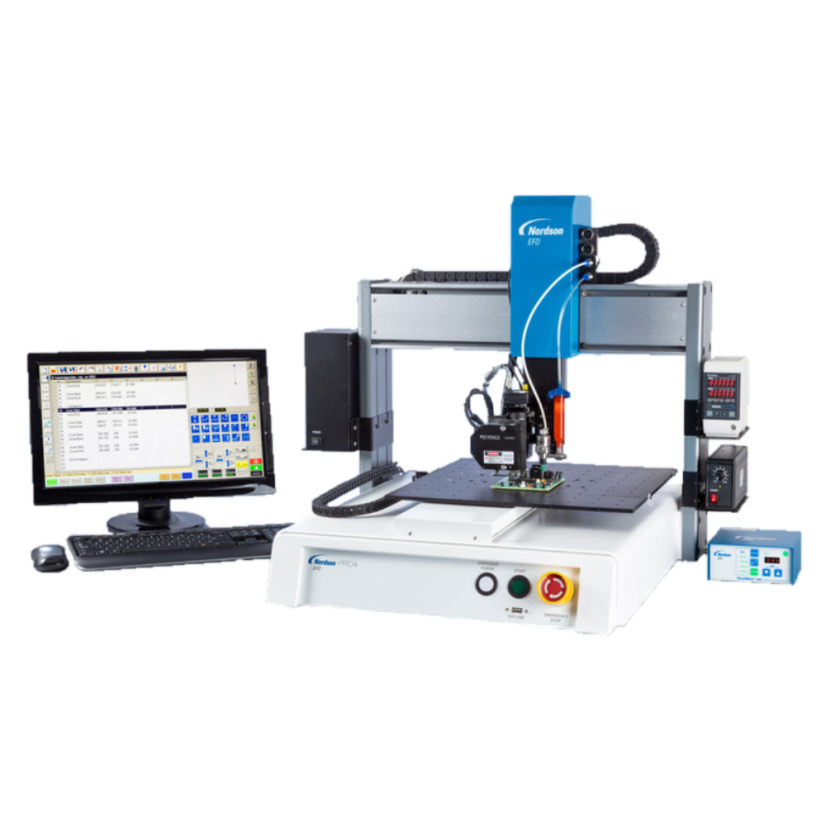

Nordson EFD PROX5 desktop robot provides precise liquid dispensing with vision guidance. It boosts production efficiency and reliability.
This product features a number of axes of 3 axis, a programming of PC + camera, a maximum working area of 450/500/100 mm (X/Y/Z), a workpiece payload of 15 kg, a tool payload of 3.5 kg, a dimensions of 920w x 737h x 790d mm, a maximum speed of 800/250 mm/s and a drive system of 5-phase micro stepping motor. It also offers a memory capacity of PC storage, a tip detection of Included, an external inputs/outputs of 8 inputs / 8 outputs, a laser height detection of Optional, a vision of CCD smart camera, a repeatability of ±0.003 mm / axis and a weight of 75 kg.
Documents and 3D models
nordson_efd_proplus_pro_series_data_sheet.pdf
(pdf, 713.3 kB)
nordson_efd_proplus_pro_series_operating_manual.pdf
(pdf, 7.7 MB)
nordson_efd_proplus_pro_series_quick_start_guide.pdf
(pdf, 1.6 MB)
