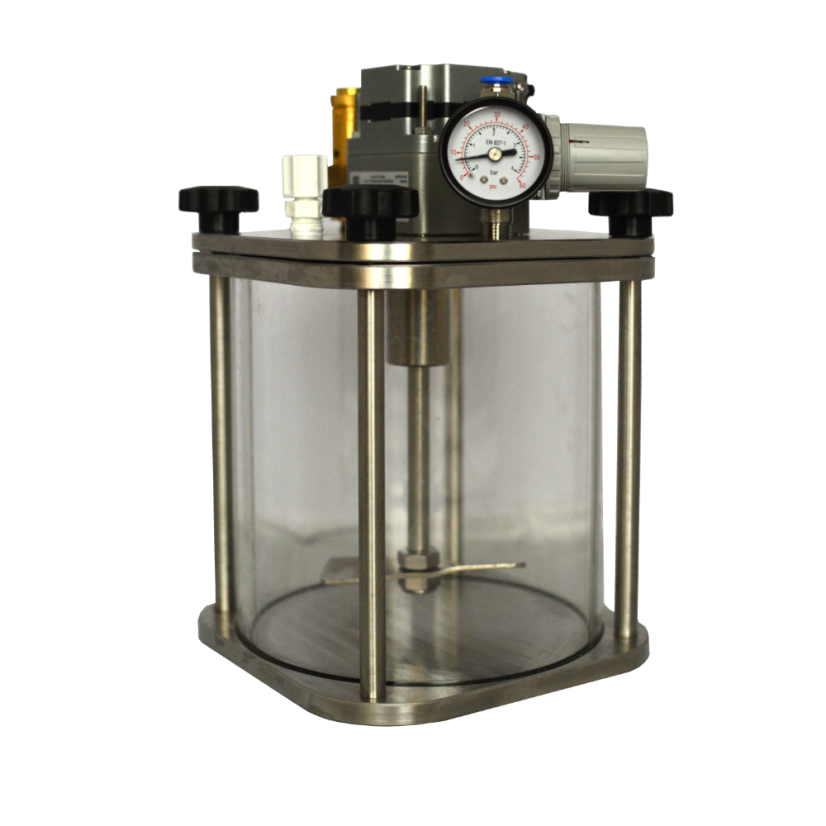

Polski (EUR)2L Acrylic & Stainless Steel 304 Clear Pressure Vessel with Agitation
Product code: 82202100
The CTEL series clear pressure vessels with agitation by electric motor are specifically designed to suit fluids requiring gentle stir, fast or programmed agitation. Made to work in both busy factories and research labs, the reservoirs can provide intermittent or constant agitation. All compact agitated pressure reservoirs are exclusively made of stainless steel grade 303 and clear acrylic cylinders. This ensures that the material contents are not contaminated by corrosion. CT Tanks Series can operate to 28°C. More
| Type | CTEL |
|---|---|
| Volume | 2 litres |
| Material | Acrylic / Stainless steel 304 |
| Agitation | Electrical |
| Pressure range | 0-4 bar (58 psi) |
TECHNICAL PARAMETERS
| Max. operating pressure | 60 psi (4 bar) |
| Volume | 2 l |
| Weight | 7.0 kg |
| Power / Voltage | 0.3 kW / 230 V AC |
| Speed range | 40–800 RPM |
| Torque | 1.4 Nm |
MIXING BLADES
| Simple blade | Cross blade | Triple pitch blade | Dual level blade |
|---|---|---|---|
| For general use. Supplied with all standard tanks. | Optional blade propeller for thicker materials. | Rounded blades to achieve mixing effect. | Optional dual-level blade. |
 |
 |
 |
 |
