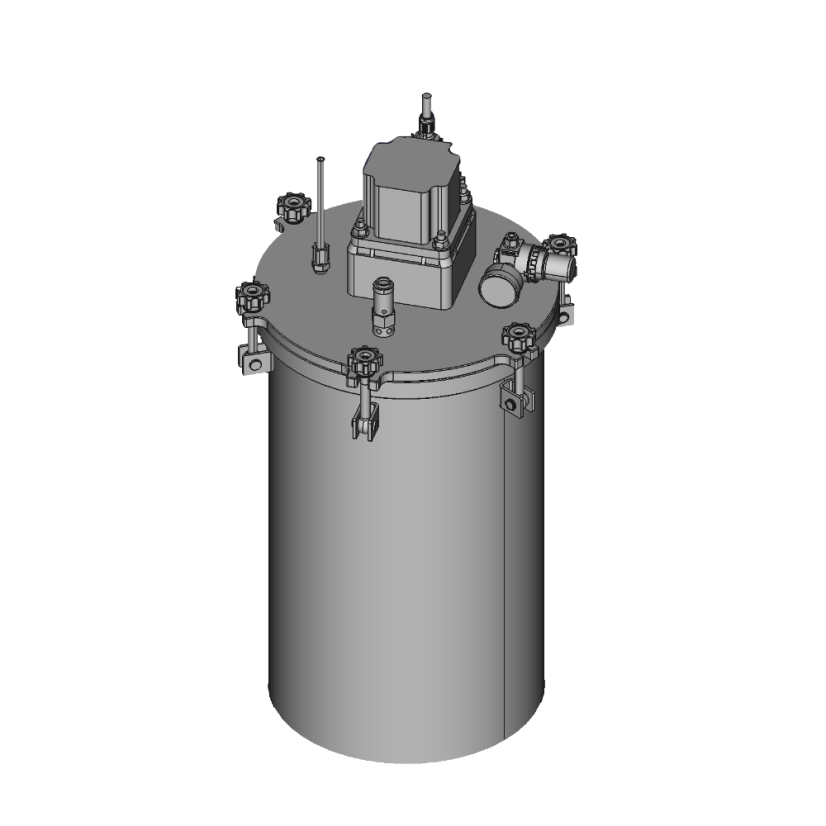

25L STEL Series Pressure Vessel

Product code: 2500CL-STEL

The STEL series compact agitated pressure reservoirs are specifically designed to suit fluids requiring gentle stir or fast agitation. Made to work in both busy factories and research labs, the reservoirs can provide intermittent or constant agitation. All compact agitated pressure reservoirs are exclusively made of stainless steel grade 304. This ensures that the material contents are not contaminated by corrosion. If required, different surface finish can be supplied. ST Tanks Series can operate to 100 °C. More

Type	STEL
Volume	25 litres
Material	Stainless steel 304
Agitation	Electrical
Pressure range	0-6.9 bar (100 psi)

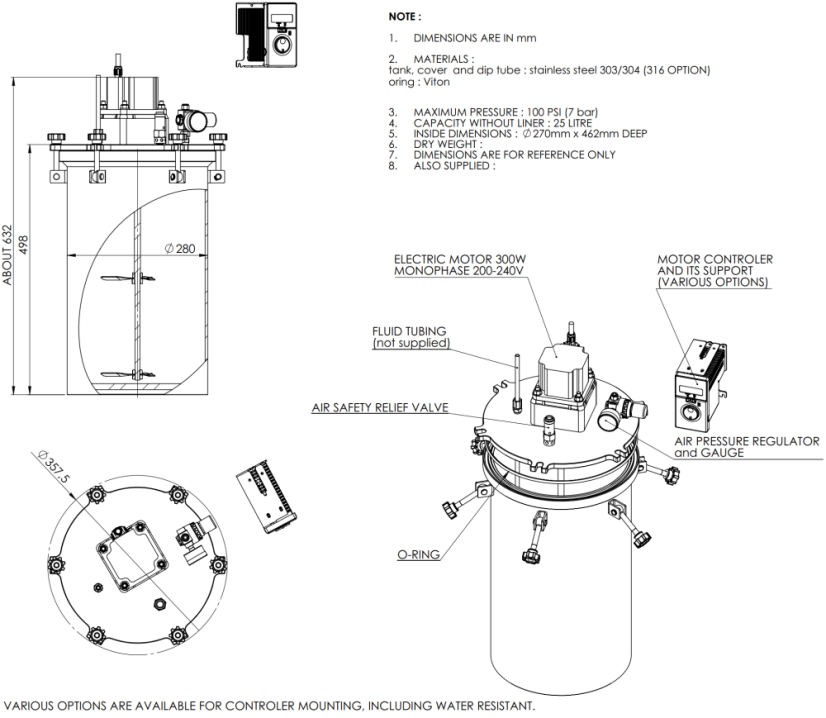

SPECIFICATIONS

Body and Lid	Stainless steel, Viton o-ring
Closure	Star nuts for lid release
Equipment	Pressure gauge, regulator and safety valve at 100 psi (7 bar)
Quick coupler	6 or 8 mm inlet quick coupler
Stirrer assembly	Stainless steel shaft and two-blade mixing propeller
Control	Remote control or integrated controller
Speed range	80-4000 RPM

ACCESSORIES

Three/four mixing blades or dual-level mixing blades
Custom modifications on request

Mixing blades

Simple blade	Cross blade	Triple pitch blade	Dual level blade
For general use. Supplied with all standard mixing tanks.	Optional blade propeller for thicker materials.	Optional with rounded blades for mixing effect.	Optional dual-level blade.
