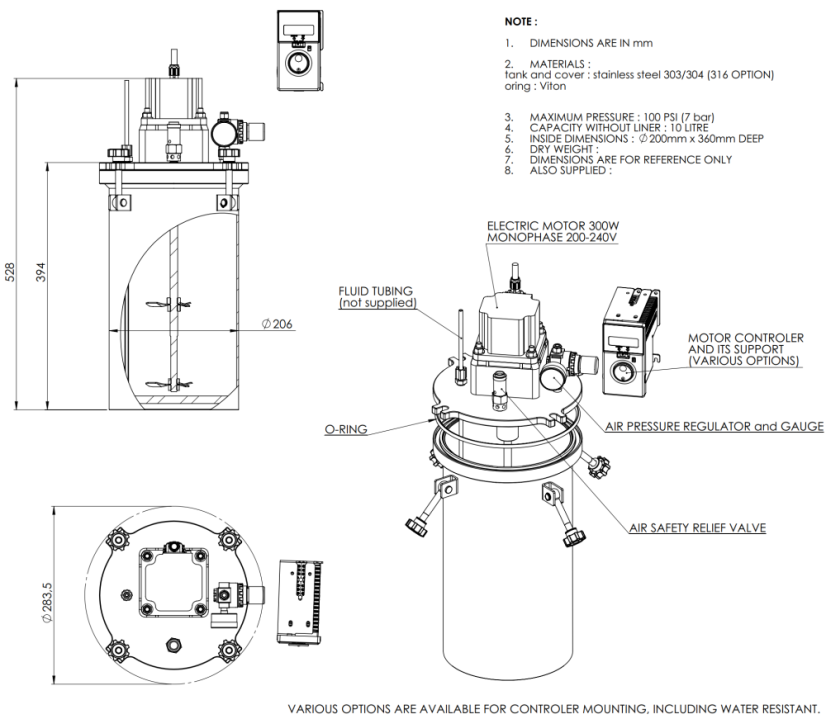

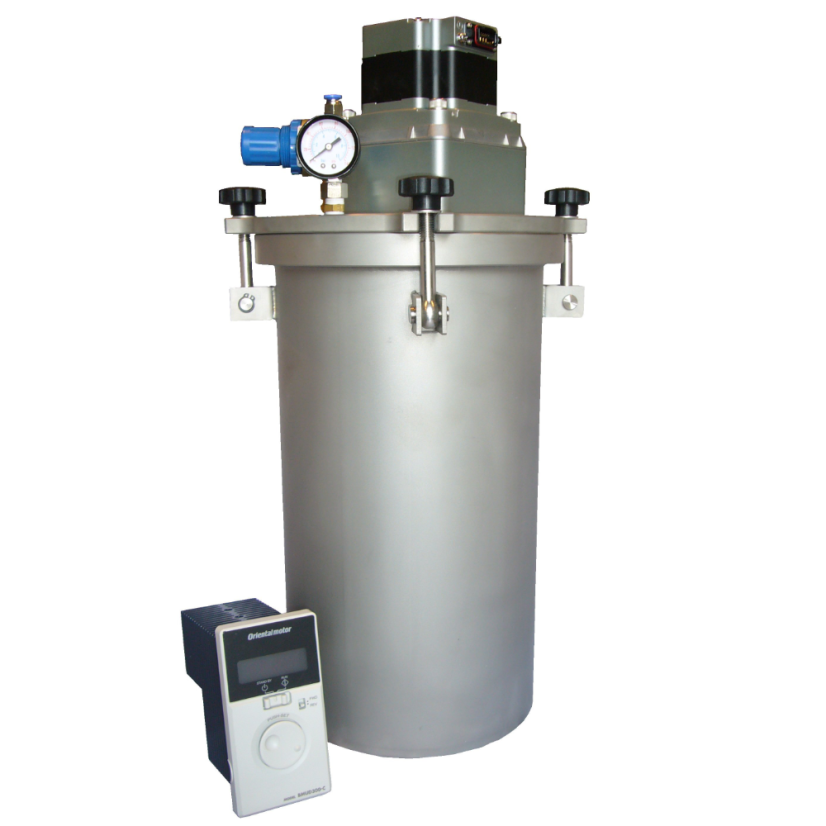

10L STEL Series Pressure Vessel

Product code: 1000CL-STEL

The STEL series compact agitated pressure reservoirs are specifically designed to suit fluids requiring gentle stir or fast agitation. Made to work in both busy factories and research labs, the reservoirs can provide intermittent or constant agitation. All compact agitated pressure reservoirs are exclusively made of stainless steel grade 304. This ensures that the material contents are not contaminated by corrosion. If required, different surface finish can be supplied. ST Tanks Series can operate to 100 °C. More

Type	STEL
Volume	10 litres
Material	Stainless steel 304
Agitation	Electrical
Pressure range	0-6.9 bar (100 psi)

SPECIFICATIONS

Material	Stainless steel body and lid, Viton o-ring
Closure	Star nuts for lid release
Equipment	Pressure gauge, regulator and safety valve at 100 psi (7 bar)
Quick coupler	6 or 8 mm inlet quick coupler
Agitator	Stainless steel shaft and dual-blade propeller
Control & Speed	Remote or integrated; 80–4000 RPM

ACCESSORIES & BLADES

Three/four blades or dual-level mixing blades
Custom modifications on request

Simple	Cross	Triple pitch	Dual level
General use, standard supply.	Propeller for thicker materials.	Rounded for mixing effect.	Optional dual-level version.
