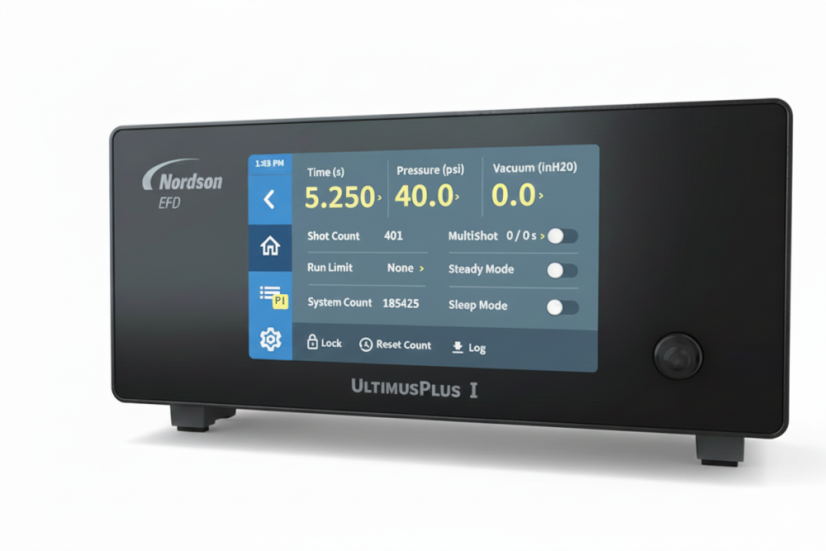

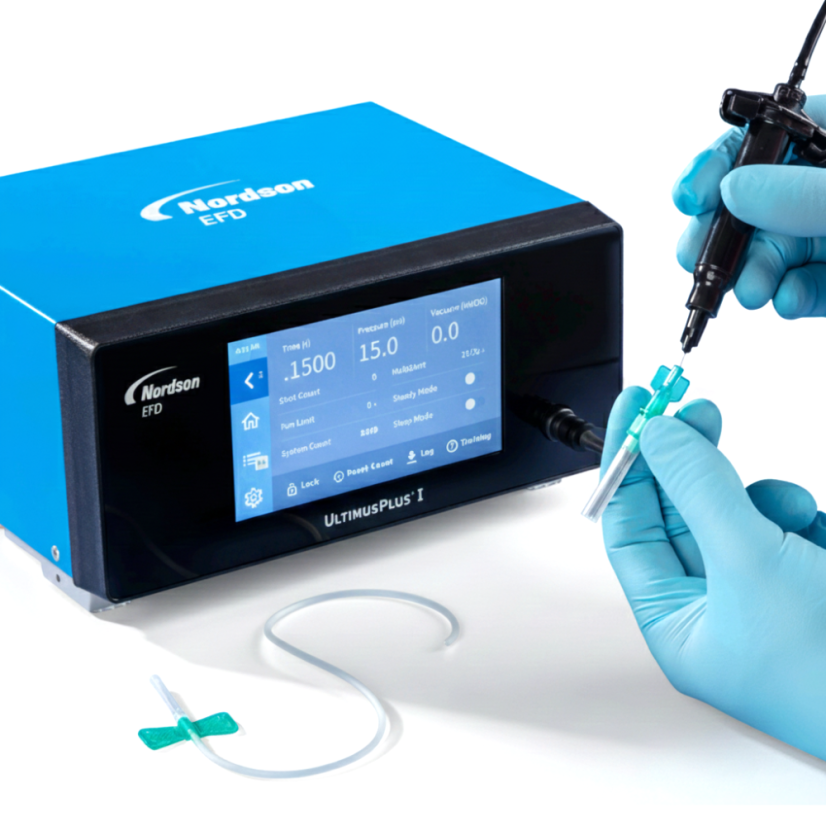

български език (EUR)UltimusPlus II dispenser, calibrated
Product code: 7364476
0–1.0 bar (0.3–15 psi) version
Calibrated to EFD specifications based on NIST standards.
UltimusPlus™ fluid dispensers provide next-level process control for advanced assembly fluid applications dispensed via cartridges (manually or via automated systems). Ease of use allows operators to focus on creating precise, controlled deposits. Additionally, a full lockout prevents operators from changing settings between shifts. UltimusPlus connectivity simplifies factory integration for high-volume automated production. Its internal digital log file automatically records dispensing data and can be easily downloaded via USB to further enhance process control. More
Calibrated to EFD specifications based on NIST standards.
UltimusPlus™ fluid dispensers provide next-level process control for advanced assembly fluid applications dispensed via cartridges (manually or via automated systems). Ease of use allows operators to focus on creating precise, controlled deposits. Additionally, a full lockout prevents operators from changing settings between shifts. UltimusPlus connectivity simplifies factory integration for high-volume automated production. Its internal digital log file automatically records dispensing data and can be easily downloaded via USB to further enhance process control. More
BENEFITS
- Process Focus: Simple setup and programming allows operators to stay focused on the process.
- Cost Savings: Reduced factory air consumption and operating costs via sleep mode.
- High Productivity: Quick shift between 16 programs without manual adjustments for improved productivity.
- Extended Warranty: 5-year limited warranty (Americas and Europe).
FEATURES
- Modern Interface: Intuitive multi-language touch interface.
- Precise Control: Electronic pressure regulation with full operator lockout.
- Versatility: Multishot™ capability for diverse dispensing needs.
- Data Input: Optional barcode scanner integration.
TECHNICAL SPECIFICATIONS
| Parameter | Value |
| Dimensions (W x H x D) | 21.2 x 10.8 x 19.2 cm |
| Weight | 1.8 kg (4.0 lb) |
| Input Voltage | 100–240 VAC (+/-10%), 50/60 Hz |
| Output Voltage | 24 VDC @ 3.75 Amp |
| Time Setting Range | 0.0001–999.9999 s |
| Air Pressure (I / II) | 0.7–7.0 bar / 0–1.0 bar |
| Approvals | CE, TUV, RoHS, WEEE, China RoHS |
Documents and 3D models
Data sheet
(pdf, 770.5 kB)
Quick start guide
(pdf, 1.9 MB)
