български език (EUR)Static mixer NORDSON EFD 160-824LL
Product code: 7700924
Static mixer NORDSON EFD 160-824LL with a Bell design, 24 mixing elements, a housing outlet of Luer Lock and an element diameter of 9.30 / 0.366“ (mm/inch). More
Parameters
| Type | Bell |
|---|---|
| Mixing Elements | 24 |
| Housing Outlet | Luer Lock |
| Element Diameter (mm/inch) | 9.30 / 0.366“ |
| Outside Diameter (mm/inch) | 12.95 / 0.510“ |
| Housing Length (cm/inch) | 24.25 / 9.55“ |
| Elements Material | Acetal |
| Mixer Material | Polypropylen |
| Pressure Limit (Psi@75°F / Bar@30°C) | 300 / 21 |
| Bell Inlet Housing (mm/inch) | 16.69 / 0.657“ |
| Outlet Tip Orifice (mm/inch) | 3.05 / 0.12“ |

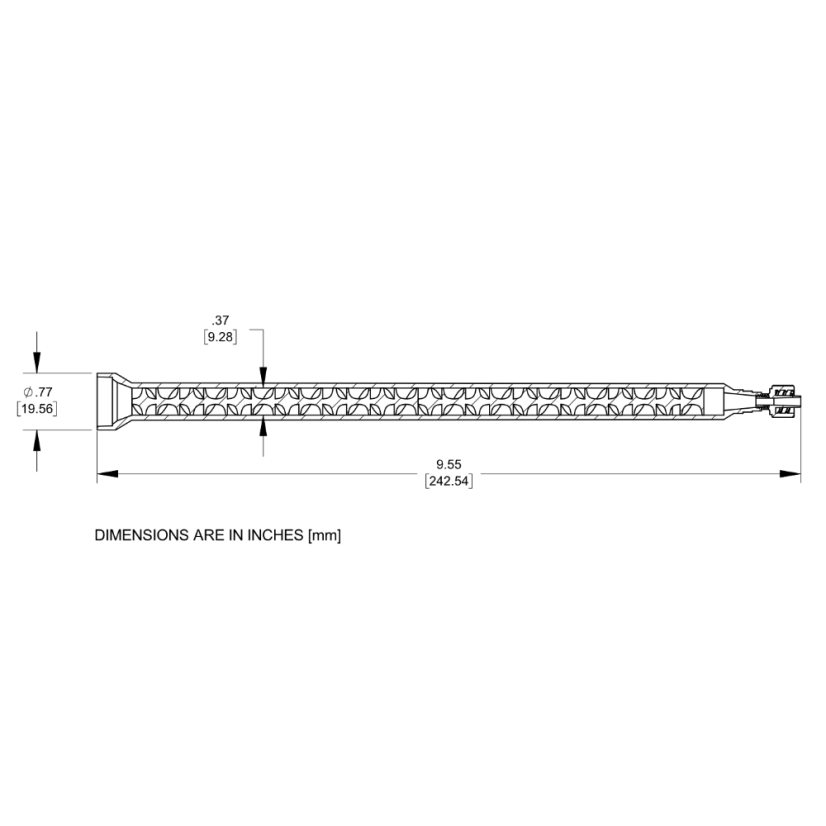

Spiral Mixing Tube 160-824LL Bell type by Nordson. Mixing elements 24, element diameter 9.3 mm, total length 242.5 mm, outlet Luer Lock.
This product features a Bell design, 24 mixing elements, a housing outlet of Luer Lock, an element diameter of 9.30 / 0.366“ (mm/inch), an outside diameter of 12.95 / 0.510“ (mm/inch) and a housing length of 24.25 / 9.55“ (cm/inch). It also offers an elements material of Acetal, a mixer material of Polypropylene, a pressure limit of 300 / 21 (Psi@75°F / Bar@30°C), a bell inlet housing of 16.69 / 0.657“ (mm/inch) and an outlet tip orifice of 3.05 / 0.12“ (mm/inch).
