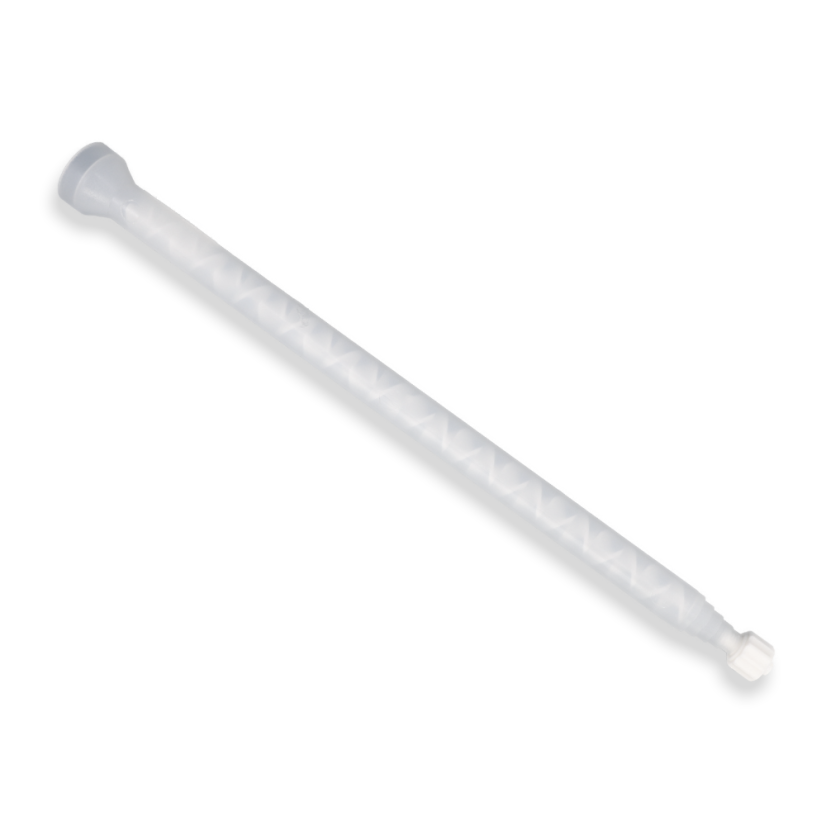

български език (EUR)Static mixer NORDSON EFD 160-724LL
Product code: 7700878
Static mixer NORDSON EFD 160-724LL with a Bell design, 24 mixing elements, a housing outlet of Luer Lock and an element diameter of 8.00 / 0.314“ (mm/inch). More
Parameters
| Type | Bell |
|---|---|
| Mixing Elements | 24 |
| Housing Outlet | Luer Lock |
| Element Diameter (mm/inch) | 8.00 / 0.314“ |
| Outside Diameter (mm/inch) | 11.71 / 0.461“ |
| Housing Length (cm/inch) | 23.19 / 9.13“ |
| Elements Material | Acetal |
| Mixer Material | Polypropylen |
| Pressure Limit (Psi@75°F / Bar@30°C) | 330 / 23 |
| Bell Inlet Housing (mm/inch) | 16.69 / 0.657“ |
| Outlet Tip Orifice (mm/inch) | 2.54 / 0.10“ |

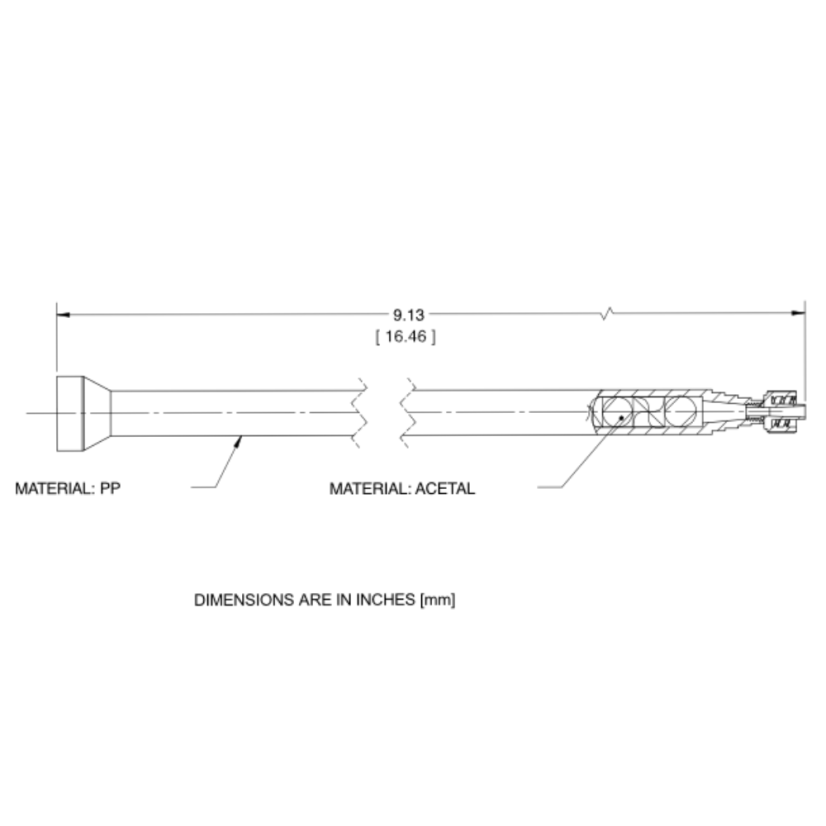

Spiral Mixing Tube 160-724LL Bell type by Nordson. Mixing elements 24, element diameter 8 mm, total length 231.9 mm, outlet Luer Lock.
This product features a Bell design, 24 mixing elements, a housing outlet of Luer Lock, an element diameter of 8.00 / 0.314“ (mm/inch), an outside diameter of 11.71 / 0.461“ (mm/inch) and a housing length of 23.19 / 9.13“ (cm/inch). It also offers an elements material of Acetal, a mixer material of Polypropylene, a pressure limit of 330 / 23 (Psi@75°F / Bar@30°C), a bell inlet housing of 16.69 / 0.657“ (mm/inch) and an outlet tip orifice of 2.54 / 0.10“ (mm/inch).
