български език (EUR)Static Mixer Flumasys 161-230
Product code: 87701028
Static Mixer Flumasys 161-230 with a Bell design, 30 mixing elements, a housing outlet of Stepped and an element diameter of 13.00 / 0.511“ (mm/inch). More
Parameters
| Type | Bell |
|---|---|
| Mixing Elements | 30 |
| Housing Outlet | Stepped |
| Element Diameter (mm/inch) | 13.00 / 0.511“ |
| Outside Diameter (mm/inch) | 16.70 / 0.657“ |
| Housing Length (cm/inch) | 35.9 / 14.13“ |
| Elements Material | High Strength Polyacetal |
| Mixer Material | Polypropylen |
| Bell Inlet Housing (mm/inch) | 16.69 / 0.657“ |
| Outlet Tip Orifice (mm/inch) | 4.50 / 0.17“ |

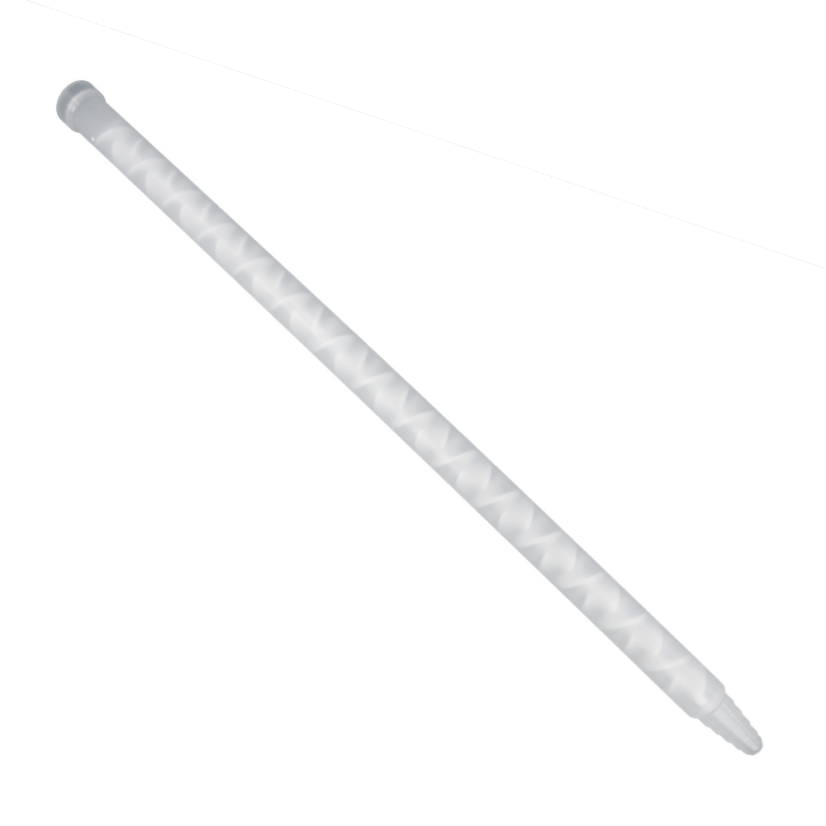

Spiral Mixing Tube 161-230 Bell type by Flumasys. Mixing elements 30, element diameter 13 mm, total length 359 mm, outlet Stepped.
This product features a Bell design, 30 mixing elements, a housing outlet of Stepped, an element diameter of 13.00 / 0.511“ (mm/inch) and an outside diameter of 16.70 / 0.657“ (mm/inch). It also offers a housing length of 35.9 / 14.13“ (cm/inch), an elements material of High Strength Polyacetal, a mixer material of Polypropylene, a bell inlet housing of 16.69 / 0.657“ (mm/inch) and an outlet tip orifice of 4.50 / 0.17“ (mm/inch).
