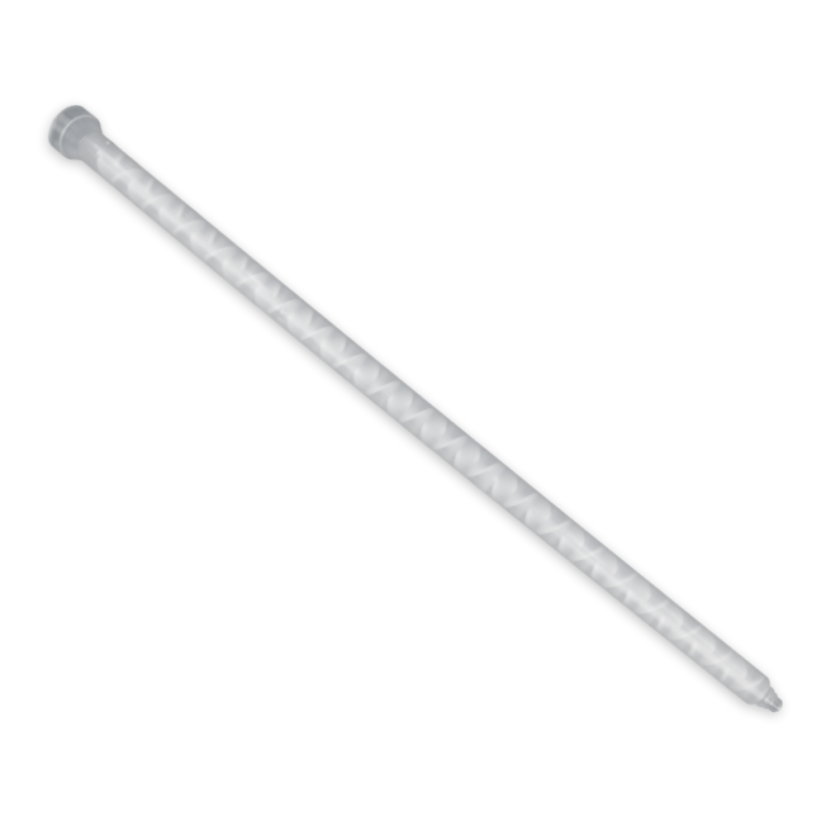

Static Mixer Flumasys 160-840

Product code: 87700932

Static Mixer Flumasys 160-840 with a Bell design, 40 mixing elements, a housing outlet of Stepped and an element diameter of 9.30 / 0.366“ (mm/inch). More

Parameters

Type	Bell
Mixing Elements	40
Housing Outlet	Stepped
Element Diameter (mm/inch)	9.30 / 0.366“
Outside Diameter (mm/inch)	12.95 / 0.510“
Housing Length (cm/inch)	35.9 / 14.13“
Elements Material	High Strength Polyacetal
Mixer Material	Polypropylen
Bell Inlet Housing (mm/inch)	16.69 / 0.657“
Outlet Tip Orifice (mm/inch)	1.90 / 0.07“

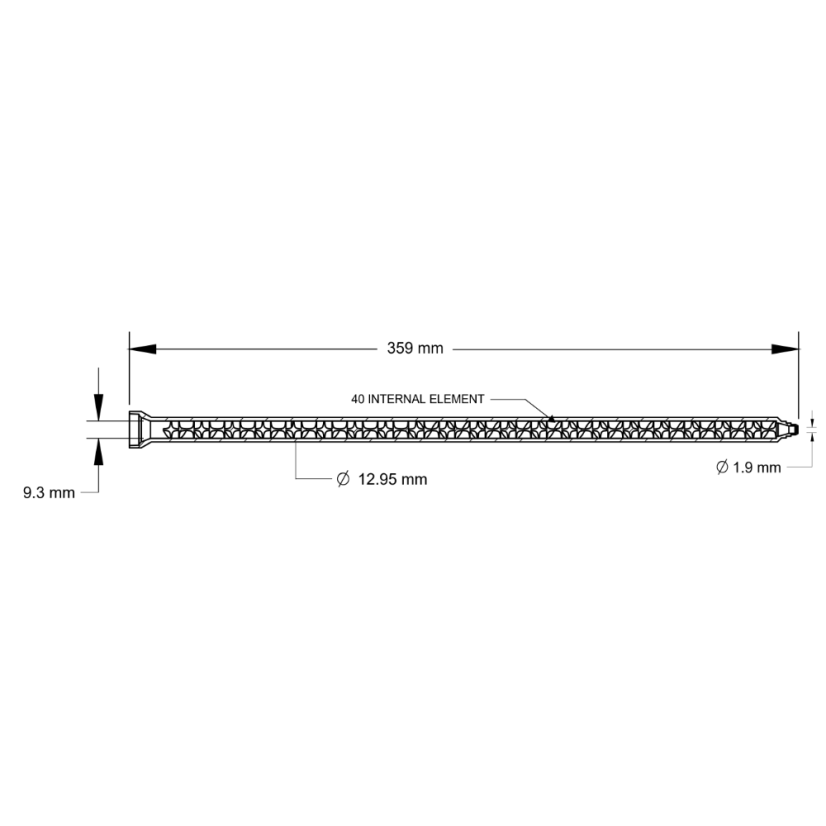

Spiral Mixing Tube 160-840 Bell type by Flumasys. Mixing elements 40, element diameter 9.3 mm, total length 359 mm, outlet Stepped.

This product features a Bell design, 40 mixing elements, a housing outlet of Stepped, an element diameter of 9.30 / 0.366“ (mm/inch) and an outside diameter of 12.95 / 0.510“ (mm/inch). It also offers a housing length of 35.9 / 14.13“ (cm/inch), an elements material of High Strength Polyacetal, a mixer material of Polypropylene, a bell inlet housing of 16.69 / 0.657“ (mm/inch) and an outlet tip orifice of 1.90 / 0.07“ (mm/inch).
