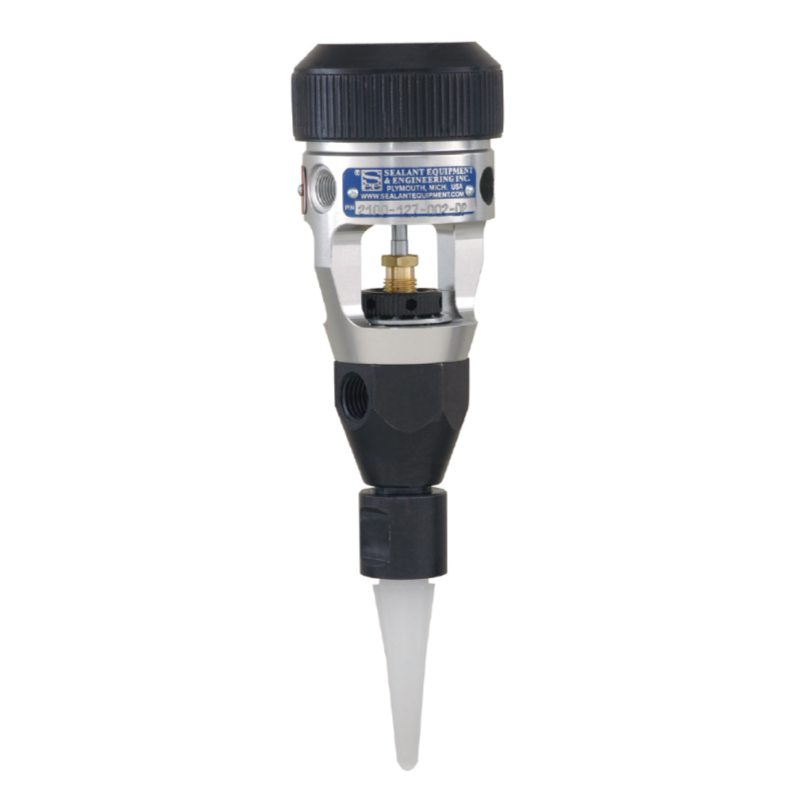

SNUF-BAK VALVE

Product code: 7425061

Single spool, piston actuated material valveBenefitsLonger lifespanWear-resistant seals and hardened componentsUnrestricted internal design allows for the free flow of high viscosity materialsDivorced design separates fluid components from air componentsQuality dispensingSnuf-Bak feature creates immediate material shut offExact consistencyShort stroke length produces immediate on/off control of materials being dispensedFeaturesAdjustable PTFE packings provide extended lifeAvailable in round and square body stylesEasy repeatable mounting for automation platformsHardened and ground spoolUnique design allows for easy maintenanceLocating holes for dowel pin mountingAvailable in all stainless steelMultiple seal configurations are availableLightweight aluminum and steel model with 3500 psi More

1K/2K	Single Component
Type	Piston, Snuf-Bak
Wetted material	Stainles Steel 303

Dry Weight*	0.7 kg (1.54 lbs.)
Valve Height	5.55" (14.1 cm)
Valve Diameter	2.19" (5.56 cm)
Maximum inlet fluid pressure	241 bar (3500 psi)
Minimum inlet air pressure	4.2 bar (60 psi)
Operation	Double air operated; air to open, air to close
Material delivery	All 1-component meter-mix dispense systems
Viscosity range	Viscous liquid to paste
Outlet Port	1/4" F NPT

*Standard aluminum body

Data sheet (pdf, 407 kB)
