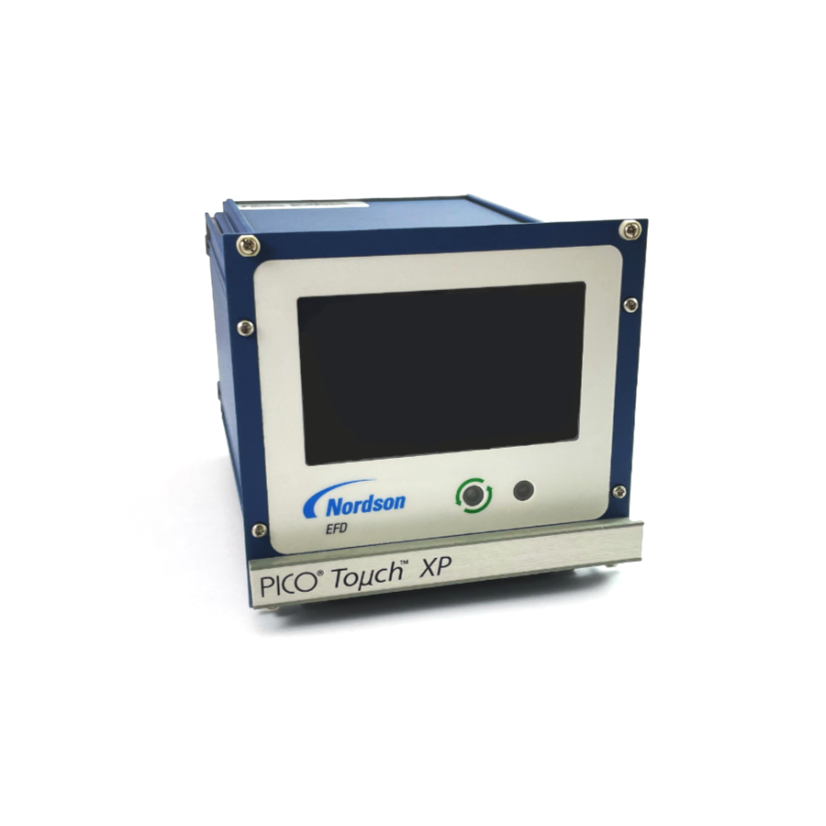

български език (EUR)PICO TOUCH XP CONTROLLER
Product code: 7364877
Extremely Precise (XP), Repeatable Micro-Dispensing
The PICO XP jetting system takes the guesswork out of how to achieve the same extremely precise (XP), repeatable non-contact micro-dispensing from valve-to-valve, after maintenance, and as temperatures rise or fall.
The PICOPµlse®XP jet valve and PICO®Toµch™XP controller bring extreme precision and repeatability to the next level with a unique self-regulating calibration for improved valve-to-valve jetting performance.It controls for the slightest variation in fluid body tolerances to maintain optimal jetting results, even after maintenance. Sustained stroke target seeking allows the system to produce a stable deposit weight,even when environmental conditions change.This minimizes production downtime needed to recalibrate the jetting system, for example, when ambient temperatures rise or fall.Achieve micro-deposits as small as 0.5 nL with extreme precision and repeatability at up to 1000Hz continuous for your most sophisticated non-contact dispensing application needs.
Features
• XP self-regulating calibration.
• Sustained stroke target seeking
• Micron (µm) level stroke adjustment
• Touchscreen interface with intuitive programming software
• Tool-free fluid body removal for simplified cleaningof fluid path
Benefits
• Improve valve-to-valve dispensing repeatability and repeatability after maintenance
• Maintain dispensing repeatability regardless of environmental conditions
• Fine-tune jetting performance for a wide rangeof applications More
The PICO XP jetting system takes the guesswork out of how to achieve the same extremely precise (XP), repeatable non-contact micro-dispensing from valve-to-valve, after maintenance, and as temperatures rise or fall.
The PICOPµlse®XP jet valve and PICO®Toµch™XP controller bring extreme precision and repeatability to the next level with a unique self-regulating calibration for improved valve-to-valve jetting performance.It controls for the slightest variation in fluid body tolerances to maintain optimal jetting results, even after maintenance. Sustained stroke target seeking allows the system to produce a stable deposit weight,even when environmental conditions change.This minimizes production downtime needed to recalibrate the jetting system, for example, when ambient temperatures rise or fall.Achieve micro-deposits as small as 0.5 nL with extreme precision and repeatability at up to 1000Hz continuous for your most sophisticated non-contact dispensing application needs.
Features
• XP self-regulating calibration.
• Sustained stroke target seeking
• Micron (µm) level stroke adjustment
• Touchscreen interface with intuitive programming software
• Tool-free fluid body removal for simplified cleaningof fluid path
Benefits
• Improve valve-to-valve dispensing repeatability and repeatability after maintenance
• Maintain dispensing repeatability regardless of environmental conditions
• Fine-tune jetting performance for a wide rangeof applications More
TECHNICAL SPECIFICATIONS
| Dimensions (W x H x D) | 5.6 x 5.25 x 6.6" (14.2 x 13.3 x 16.8 cm) |
| Weight | 5.5 lb (2.6 kg) |
| Electrical Input/Output | Input: 100–240 VAC; Output: 24 VDC (6.25 A) |
| Internal Voltage & Heating | 150 VDC, 24 VDC, 5 VDC, 3.3 VDC; Heater: 30 W max |
| Operating Parameters | Time Range: 100 μs to 9.9999 s; Cycle rate: valve dependent |
| Circuits | Feedback: 0–24 VDC; Initiation circuit: 5–24 VDC |
| Environmental conditions | Temp: 41–133 °F (5–45 °C); Humidity: up to 85% |
| Certificates & Classification | CE, RoHS, WEEE; Installation category II, Pollution degree 2 |
