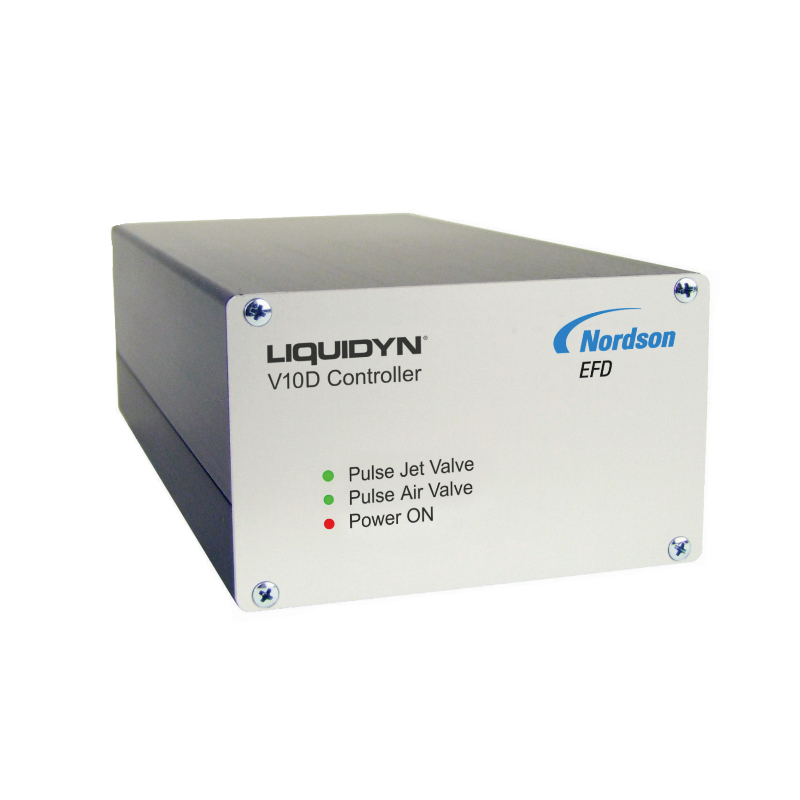

български език (EUR)LIQUIDYN V10 CONTROLLER
Product code: 7825163
Designed for Liquidyn jet valves
The Liquidyn® V10D controller is a multi-functional controller designed for use with Liquidyn pneumatic jet valves. The V10D controller is easy to incorporate on the production floor.
The Liquidyn V10D controller offers the ability to control one Liquidyn jet valve and is ideal for applications that require bonding and coating. It does not include digital display of pressure or temperature readings. The ProcessMate T10 temperature controller is required to control Liquidyn nozzle heaters when the V10D controller is used.
Features• Programmable dispensing parameters – up to four programs• Continuous shot operation up to 280Hz• Interface software in English and German using RS-232 adapter cableBenefits• Repeatability and accuracy provide reliable dispensing results for higher productivity• Remote operation and monitoring functions facilitate integration with existing systems or programmable logic controllers (PLCs) More
The Liquidyn® V10D controller is a multi-functional controller designed for use with Liquidyn pneumatic jet valves. The V10D controller is easy to incorporate on the production floor.
The Liquidyn V10D controller offers the ability to control one Liquidyn jet valve and is ideal for applications that require bonding and coating. It does not include digital display of pressure or temperature readings. The ProcessMate T10 temperature controller is required to control Liquidyn nozzle heaters when the V10D controller is used.
Features• Programmable dispensing parameters – up to four programs• Continuous shot operation up to 280Hz• Interface software in English and German using RS-232 adapter cableBenefits• Repeatability and accuracy provide reliable dispensing results for higher productivity• Remote operation and monitoring functions facilitate integration with existing systems or programmable logic controllers (PLCs) More
TECHNICAL SPECIFICATIONS
| Dimensions (W x H x D) | 4.1 x 2.7 x 8.0 inches (105 x 68 x 203 mm) |
| Weight | 0.9 kg (2.0 lb) |
| Cycle Speed / Time Range | Up to 280 Hz / 2–10,000 ms |
| Electrical Input | 24 VDC, 2.5 Amp min (Lumberg KFV70 connector) |
| Power Adapter | 100–240 VAC, 50/60 Hz; Output 24 VDC, 2.5 A (60 W) |
| Feedback Circuit | 0 VDC (logical low), 24 VDC (logical high) |
| Certificates & Warranty | CE, TUV, RoHS, WEEE; 1-year limited warranty |
Documents and 3D models
Data sheet
(pdf, 381.5 kB)
Operating manual
(pdf, 1.9 MB)
