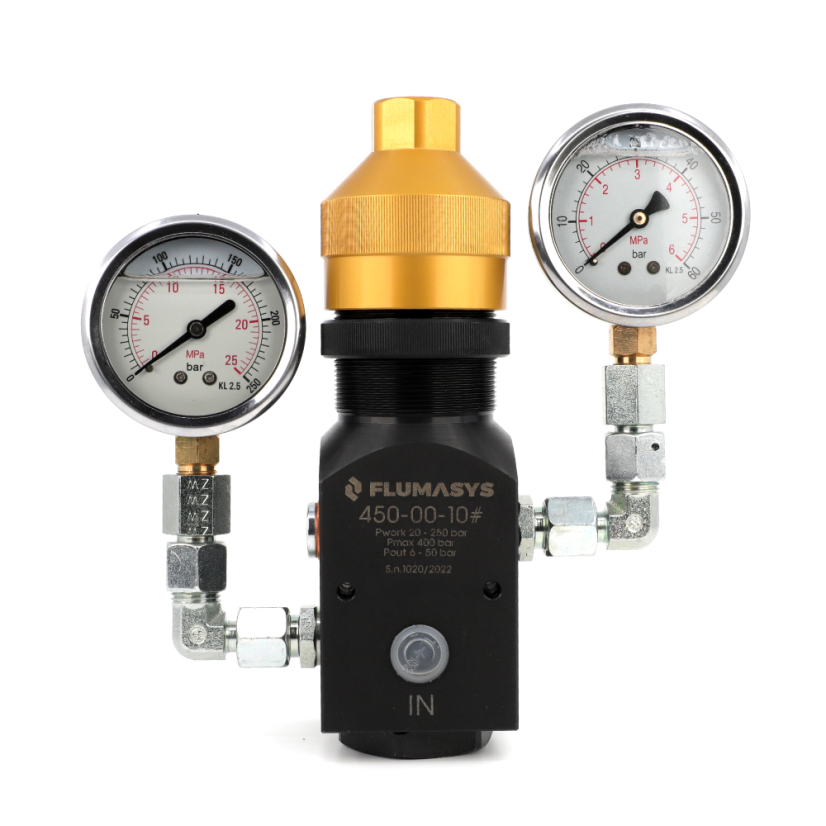

FLUMASYS PISTON PRESSURE REGULATOR (250 BAR)

Product code: F450.00.10

The main function of the pressure regulator is to regulate the pressure of the pumped material to the required working pressure. Unwanted pressure pulsations can occur with material delivered by piston pumps; by regulating the material pressure, these pulsations are reduced. This makes the regulated material pressure much more stable. Piston pressure regulators are designed for materials such as oils, greases, silicones (without fillers). More

ID	8
Connection	3/8"
Inlet pressure	20-250 bar
Outlet pressure	6-50 bar
Flow rate	50 000 mPa.s / 50 bar < 1.4 L/min

Specifications:

Maximum pressure: 400 bar
Input pressure max.: 250 bar
Output pressure max: 50 bar
Internal diameter: 8 mm
Connection: 3/8" G
Dimensions (A x B): 60 x 60 mm
Height max. (C): 200 mm
Weight: 3.0 kg
