Polski (EUR)AUGER VALVE, FIX HD, BRUSHLESS 8P DEC
Product code: 7029742
Auger valve system for precise and consistent fluid dispensing
The 794-dec Series auger valve system is designed for maximum precision in solder paste application without damaging metal alloy particles.
• 8-pitch auger (8P), fixed head, and brushless motor.
• Integrated digital encoder for precise speed control.
• Auger feed technology with precise control of time, pressure, and speed.
• Designed for use with ValveMate™ 7194-dec controllers.
• Compatible with EFD automated systems. More
The 794-dec Series auger valve system is designed for maximum precision in solder paste application without damaging metal alloy particles.
• 8-pitch auger (8P), fixed head, and brushless motor.
• Integrated digital encoder for precise speed control.
• Auger feed technology with precise control of time, pressure, and speed.
• Designed for use with ValveMate™ 7194-dec controllers.
• Compatible with EFD automated systems. More
| 1K/2K | Single Component |
|---|---|
| Type | Auger |
| Series | 794 |
| Wetted material | 440C hardened stainless steel |
FEATURES AND BENEFITS
- Precise and consistent output with adjustable flow rate.
- I/O interface and adjustable auger speed (8 or 16 pitch).
- Two motor types available – brushed or brushless.
- Low maintenance design with tool-free quick release of wetted parts.
- Floating head components for uneven surfaces and consistent dispense gap height.
- Fixed head version available for lines and stripes.
TECHNICAL SPECIFICATIONS
| Parameter | Value |

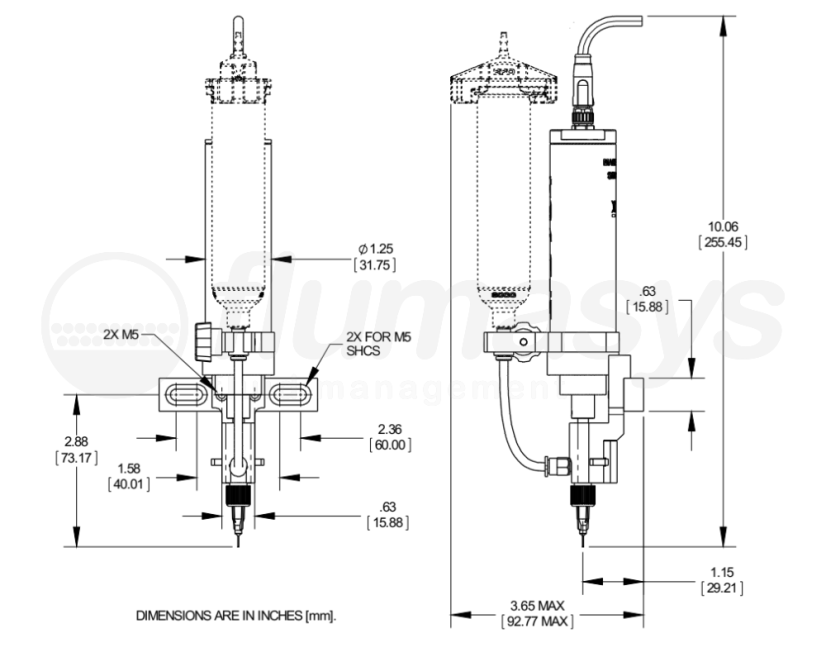

| Size | 237.4 mm length x 31.7 mm diameter (9.35" x 1.25") |
| Weight | 544 g (19.2 oz) |
| Fluid Chamber & Auger Material | Hardened 440C Stainless Steel |
| “U” Cup Seal | PTFE filled, spring energized |
| Auger Speed | 250–400 RPM (based on input voltage) |
| Input Voltage | 12–24 VDC (<10% ripple) |
| Input Air | 0–30 psi (0–2.07 bar) clean and dry |
