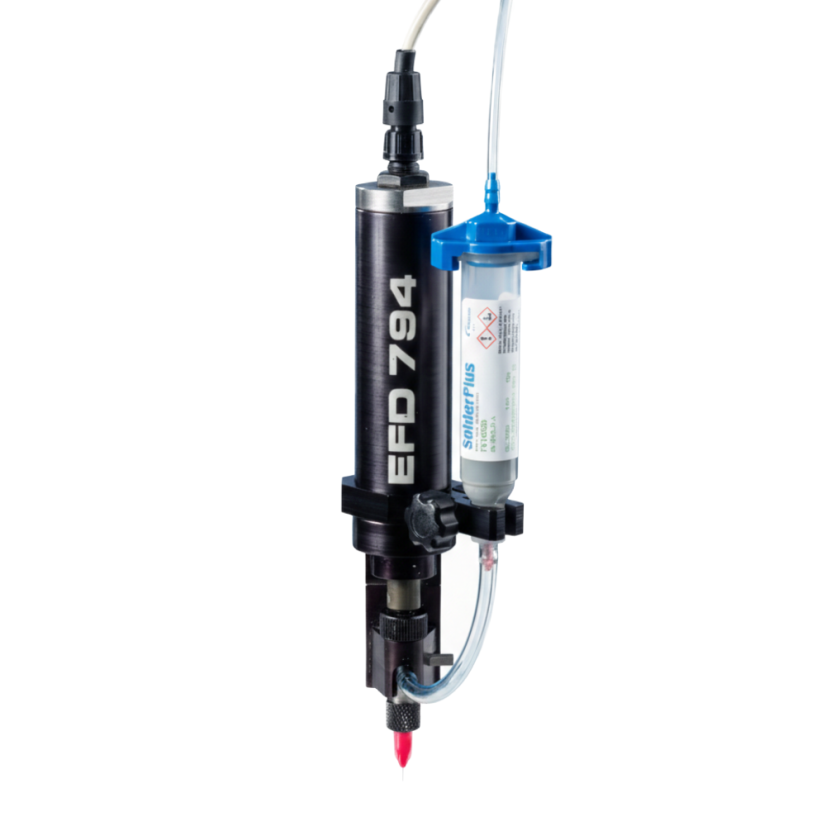

AUGER VALVE, FIX HD, BRUSH 16P

More photos (4)

Add to favourites Add to compare list

Product code: 7029746

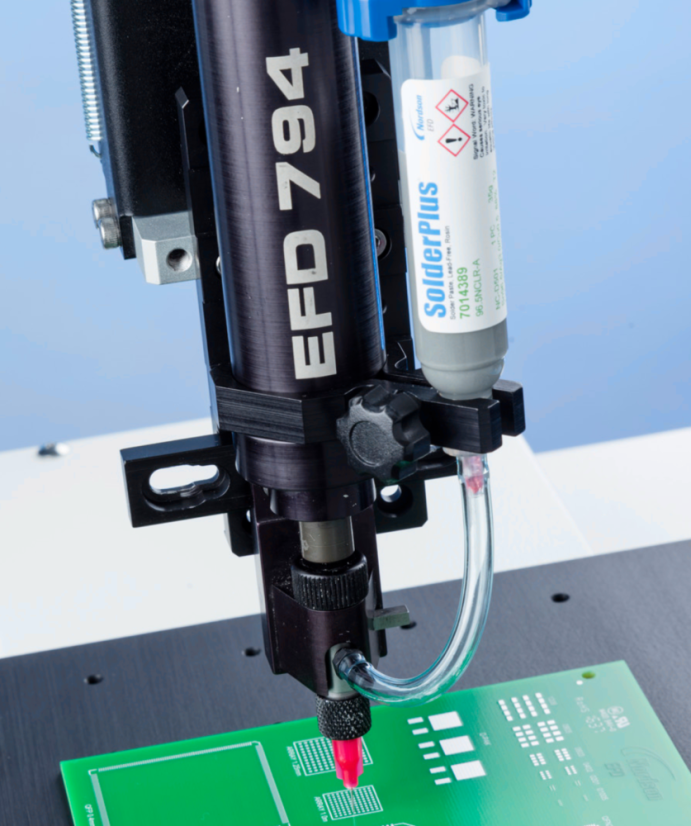

Precision auger valve with fixed head and brush motor for consistent application of solder paste and filled materials.

• 16-pitch auger (16P) and speed control.
• Ensures repeatable dispensing without damaging particles in the fluid.

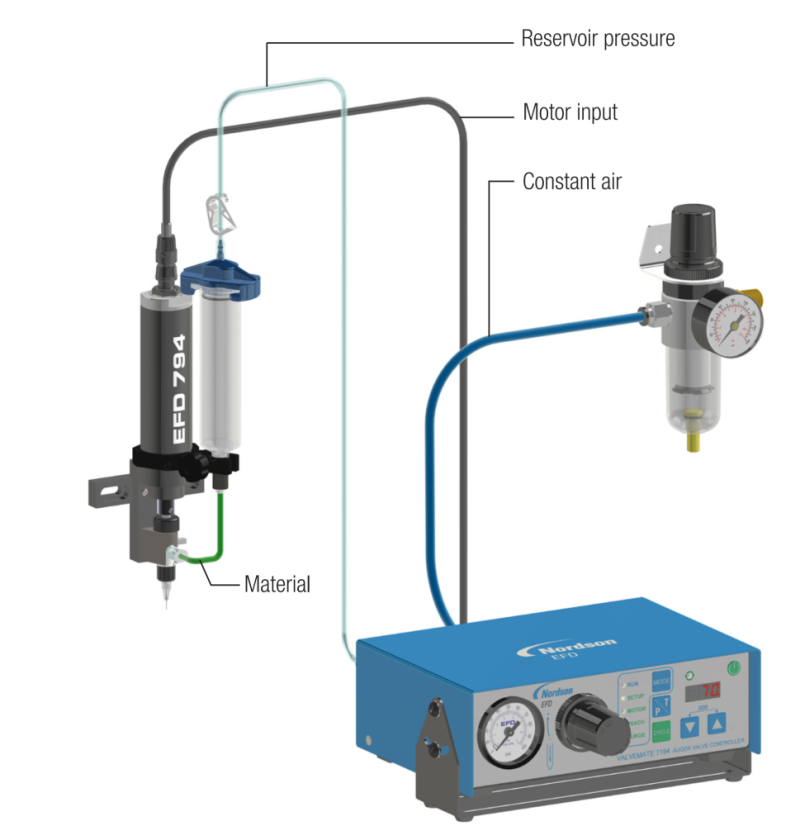

• Designed for use with ValveMate™ 7194 controllers.
• Compatible with EFD automated systems. More

1K/2K	Single Component
Type	Auger
Series	794
Wetted material	440C hardened stainless steel

FEATURES AND BENEFITS

Precise and consistent output with adjustable flow rate.
I/O interface and adjustable auger speed (8 or 16 pitch).
Two motor types available – brushed or brushless.
Low maintenance design with tool-free quick release of wetted parts.
Floating head components for uneven surfaces and consistent dispense gap height.
Fixed head version available for lines and stripes.

TECHNICAL SPECIFICATIONS

Parameter	Value

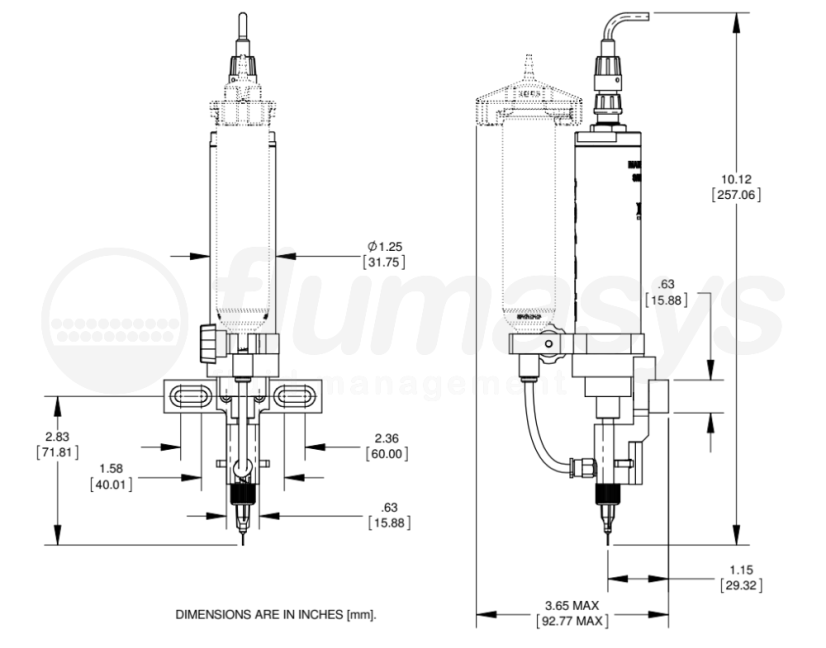

Size	237.4 mm length x 31.7 mm diameter (9.35" x 1.25")
Weight	544 g (19.2 oz)
Fluid Chamber & Auger Material	Hardened 440C Stainless Steel
“U” Cup Seal	PTFE filled, spring energized
Auger Speed	250–400 RPM (based on input voltage)
Input Voltage	12–24 VDC (<10% ripple)
Input Air	0–30 psi (0–2.07 bar) clean and dry
