български език (EUR)781 MINI SPRAY VALVE .01 ROUND
Product code: 7364002
Superior spray control in a up to 60% smaller size

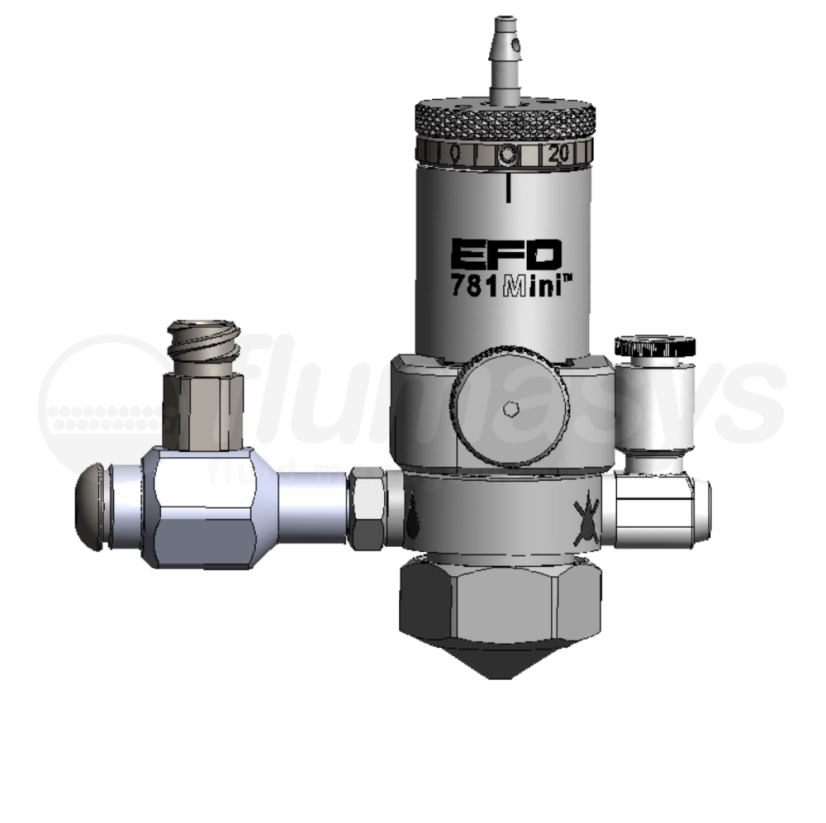

The 781Mini™ Low Volume Low Pressure (LVLP) precision spray valve features a patented design that directs nozzle air pressure more consistently for more uniform dispensing.
• Greater precision and edge definition for low-to-medium viscosity fluids.
• Ideal for activators, coatings, lubricants, oils, inks, liquid fluxes, silicones, and solvents.

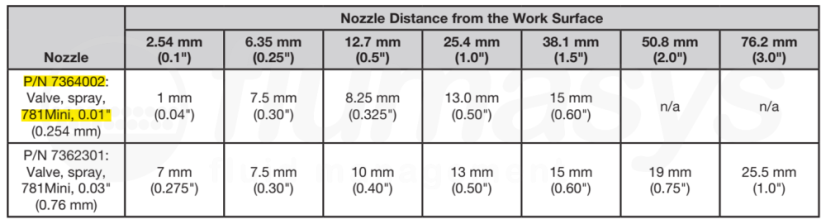

• LVLP technology creates repeatable micro-deposits as small as 1 mm (0.04″) in diameter.
• Quick Release (QR) clasp allows for replacement of wetted parts in seconds without tools. More
The 781Mini™ Low Volume Low Pressure (LVLP) precision spray valve features a patented design that directs nozzle air pressure more consistently for more uniform dispensing.
• Greater precision and edge definition for low-to-medium viscosity fluids.
• Ideal for activators, coatings, lubricants, oils, inks, liquid fluxes, silicones, and solvents.
• LVLP technology creates repeatable micro-deposits as small as 1 mm (0.04″) in diameter.
• Quick Release (QR) clasp allows for replacement of wetted parts in seconds without tools. More
Parameters
| 1K/2K | Single Component |
|---|---|
| Type | Spray |
| Series | 781 |
| Wetted material | Stainles Steel 303 |
BENEFITS
- Space Efficiency: 60% smaller footprint allows for dispensing in tight spaces.
- Transfer Efficiency: High accuracy with no overspray or mist for better edge definition.
- Quick Maintenance: QR (Quick Release) clasp enables tool-free service to minimize downtime.
- Flexible Integration: 360° rotational body and lightweight design reduce motor wear.
- Cost Effectiveness: Modular design and zero dead volume reduce material waste.
FEATURES
- Precise Control: Consistent spray patterns as small as 1 mm (0.04").
- Adjustability: Variable fluid and air flow control through the nozzles.
- High Speed: Cycle rate exceeds 400 cycles per minute.
- Robust Build: Stainless steel type 303 construction for all wetted parts.
- User-Friendly: Low maintenance design for reliable industrial performance.
TECHNICAL SPECIFICATIONS
| Parameter | Value |
| Weight | 141 g (5 oz) |

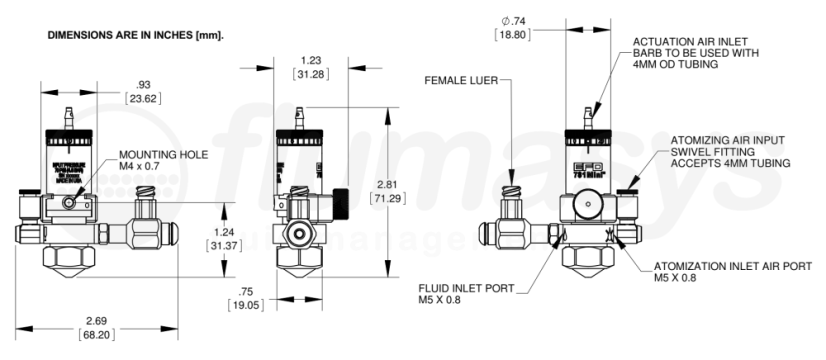

| Dimensions (Length / Dia) | 71.4 mm / 22.4 mm (2.8" x 0.9") |
| Actuating Pressure | 4.8–6.2 bar (70–90 psi) |
| Max. Fluid Pressure | 7.0 bar (100 psi) |
| Fluid Inlet / Mounting | M5 / M4 |
| Max. Operating Temp. | 102° C (215° F) |
