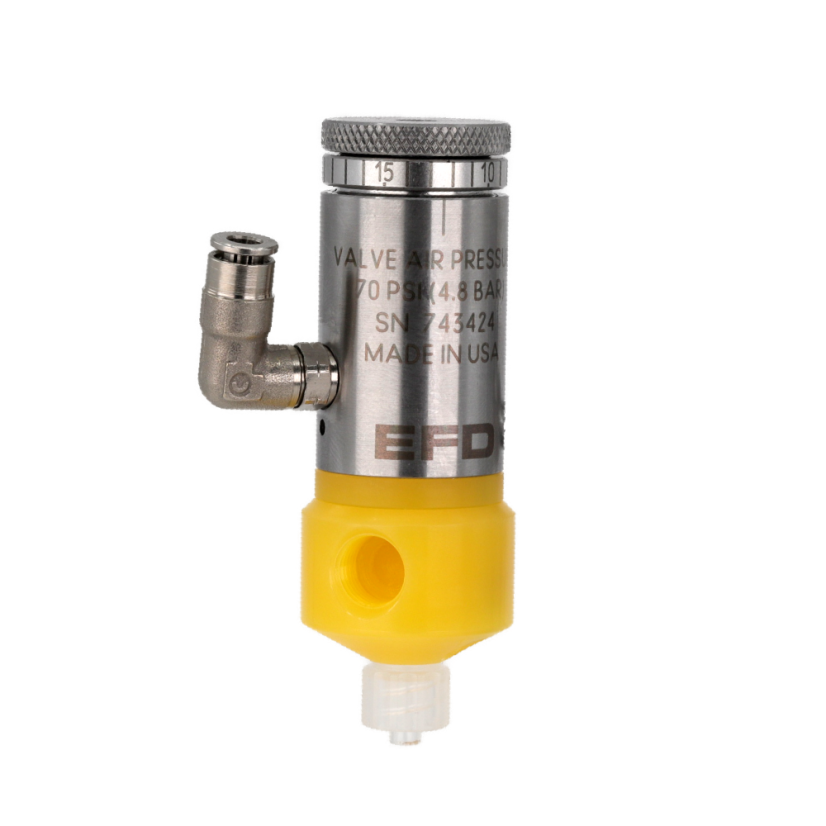

752V-UHSS Diaphragm Valve

Product code: 7021428

Diaphragm valves for fine flow control

752V Series dispensing valve systems accurately control the application of most low to medium viscosity fluids. The unique seal-less design features an inert polymer diaphragm that separates the dispensed material from the actuator.

752V-UHSS
• UHMW liquid diaphragm body
• 303 stainless steel: air cylinder body More

1K/2K	Single Component
Type	Diaphragm
Series	752
Wetted material	UHMW

Features and benefits

Compact size and lightweight with adjustable fluid flow control.
Diaphragm life exceeds 100 million cycles at speeds over 500 cycles/min.
Reliable seal-less design with FDA-compliant wetted parts.
Low-maintenance construction with easy cleaning procedures.

Technical specifications

Parameter	Value
Dimensions	79.5 mm length x 26.9 mm diameter (3.13" x 1.06")
Weight	173.6 g (6.12 oz)
Maximum Fluid Pressure	4.8 bar (70 psi)
Fluid Body Material	UHMW Polyethylene (FDA approved)
Actuating Air Pressure	4.8 bar (70 psi)
Diaphragm Material	UHMW Polyethylene / Teflon®
Cycle Rate	Exceeds 500 cycles/min
