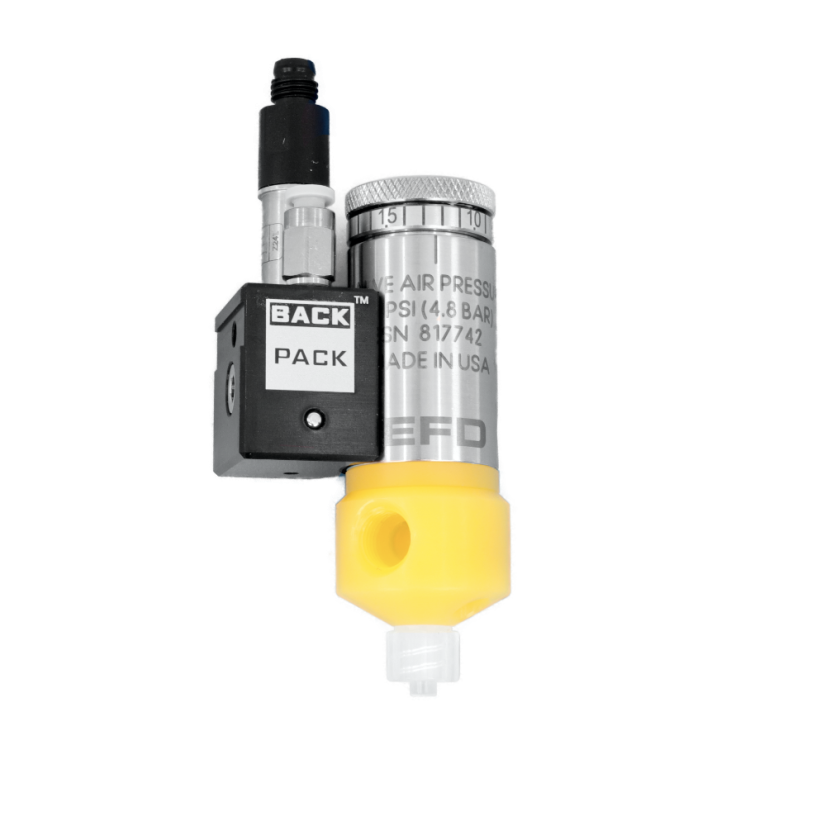

752V-UHSS-BP Diaphragm Valve

Product code: 7015583

752v series diaphragm valve with backpack™ actuator

The 752 Series diaphragm valve is ideal for dispensing controlled amounts of most low-to-medium viscosity fluids.

• Chemically inert wetted parts for cyanoacrylates and anaerobic materials.
• UHMW fluid chamber and diaphragm for superior chemical resistance.
• 303 stainless steel air cylinder body.
• BackPack actuator maintains constant pressure and ultra-fast response times.
• Eliminates process variation due to air line lengths or pressure fluctuations. More

Parameters

1K/2K	Single Component
Type	Diaphragm
Series	752
Wetted material	UHMW

Features and Benefits

High cycle rate (60–80 Hz) and actuation speed of only 5–6 ms for ultra-small deposit sizes.
BackPack™ actuator with miniature solenoid technology minimizes variation and increases repeatability.
Capable of creating continuous lines due to high-frequency switching and rapid valve opening.
Low-profile, compact, and lightweight design for easy end-of-arm robotic installation.

Technical Specifications

Parameter	Value
Power Input (BackPack)	24 VDC, 4 W
Actuation Time	5 – 6 ms
Maximum Fluid Pressure	4.8 bar (70 psi)
Weight (752V-UHSS-BP)	226.2 g (7.9 oz)
Fluid Body Material	UHMW Polyethylene (FDA approved)
Diaphragm Material	UHMW Polyethylene (optional Teflon®)
Cycle Frequency	60 – 80 Hz
