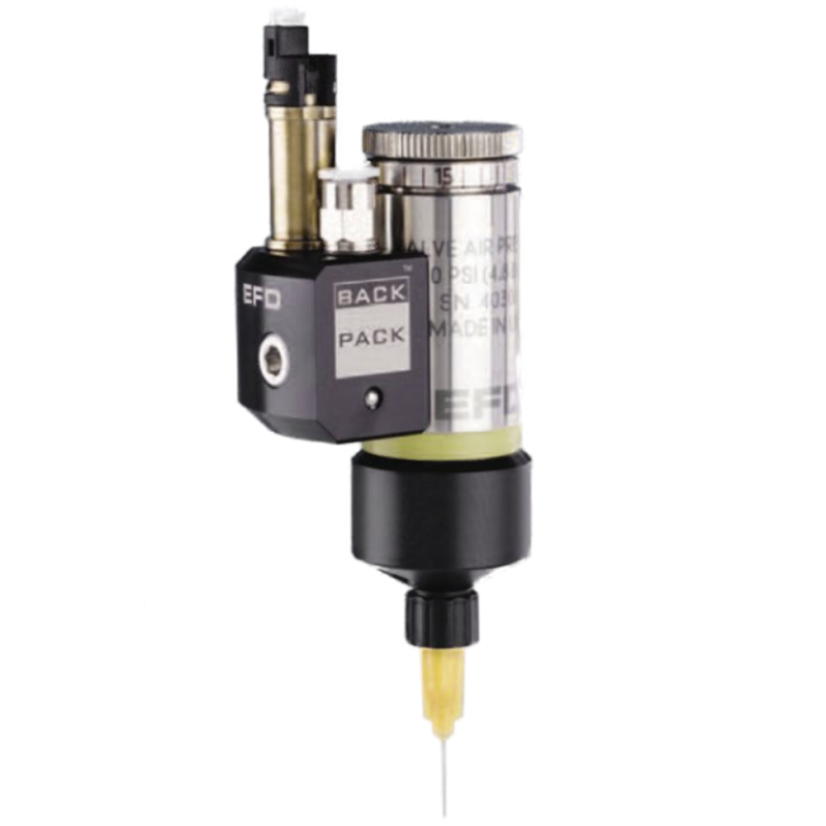

752V-SS-BP Diaphragm Valve

Product code: 7015582

752V Series Diaphragm Valve with BackPack™ Actuator

The 752 Series diaphragm valve is ideal for dispensing controlled amounts of most low to medium viscosity fluids. Chemically inert wetted parts make this versatile valve an ideal solution for use with cyanoacrylates, anaerobics, and other reactive fluids.

752V-SS-BP
• Acetal copolymer fluid body, UHMW diaphragm
• 303 stainless steel: air cylinder body
• BackPack actuator More

1K/2K	Single Component
Type	Diaphragm
Series	752
Wetted material	UHMW

Features and Benefits

High cycle rate (60–80 Hz) and actuation speed of only 5–6 ms for ultra-small deposit sizes.
BackPack™ actuator with miniature solenoid technology minimizes variation and increases repeatability.
Capable of creating continuous lines due to high-frequency switching and rapid valve opening.
Low-profile, compact, and lightweight design for easy end-of-arm robotic installation.

Technical Specifications

Parameter	Value
Power Input (BackPack)	24 VDC, 4 W
Actuation Time	5 – 6 ms
Maximum Fluid Pressure	4.8 bar (70 psi)
Weight (752V-UHSS-BP)	226.2 g (7.9 oz)
Fluid Body Material	UHMW Polyethylene (FDA approved)
Diaphragm Material	UHMW Polyethylene (optional Teflon®)
Cycle Frequency	60 – 80 Hz
